Heat Resistant High Flow HEPA Filter Stainless Steel Frame For Coating Industry
Heat Resistant High Flow HEPA Filter Stainless Steel Frame For Coating Industry
Heat Resistant High Flow HEPA Filter Stainless Steel Frame For Coating Industry
Heat Resistant High Flow HEPA Filter Stainless Steel Frame For Coating Industry
Specifications
Brand Name :
indair
Model Number :
ID-HT-02
Certification :
CE,ISO
Place of Origin :
China
MOQ :
1
Price :
negotiable
Supply Ability :
1000 unit per day
Packaging Details :
carton with plastic bag
material :
fiberglass
frame :
sus 304
Recommended final pressure drop :
450 pa
Efficiency :
EN779
Brand :
INDAIR
SIZE :
CUSTOMIZATION
Description

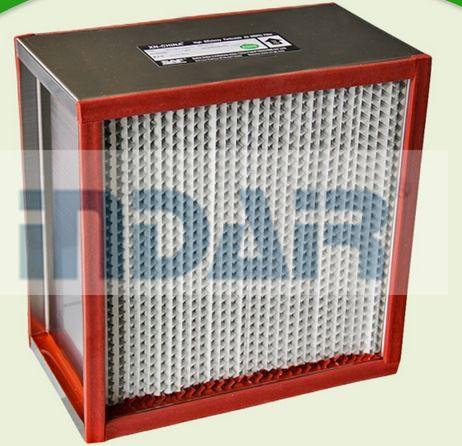

SUS 304 Heat-Resistant High Temperature Resistance separator HEPA Air Filter for clean room H14

Features

Frame: stainless steel frame.

Media: using special glass fiber filter paper as the filter material, high dust-holding capacity, low initial resistance. Using special aluminum foil as separator.

Efficiency(EN779:2002 filter class)H10,H12,H13,H14

(ASHRAE:52.2:2007 filter class)MERV16, MERV17, MERV18, MERV19.

Each filter is through rigorous testing.

Recommended final pressure drop:450pa.

Temperature:300

Fire rating :DIN 53438 class F1.

Applications

Mainly used for the requirements of the electronics industry, coating industry,chemical industry high-temperature air purification equipment and system.

  • perature resistance HEPA filter
  • High efficiency
  • Low resistance
  • Large dust holding capacity
  • High-temperature resistance, can work in 250℃-350℃
  • Application: It is applied to some equipment and systems
  • like oven which the clean air is required
  • Type: high-temperature resistance filter
  • Final resistance: (suggested) ≤600Pa
  • Temp. resistance: ≤350℃
  • Humidity: ≤100%RH
  • Dimension(mm): 610*610*120
  • Rated air flow(m3/h): 620
  • Filter area(m3/h): 7.7
  • Dust holding capacity: 370
  • Initial pressure@0.5m/s air speed (Pa):≤220
  • Final pressure (Pa):400
  • Filter efficiency 0.3 μm (%):99.97

• High temperature
• High mechanical strength
• High efficiency
• High air volume		 Recommended final pressure drop: 500 Pa.
Temperature:150°C 250°C 300°C 350°C.

Standard Size

We not only produce all kinds of different normal size High temperature resistance Separator HEPA filter,but also accept all kinds of customized
size High temperature resistance Separator HEPA filter.Please choose what size you want to buy refer to the below table,

Model Dimensions
(W×H×D) mm
 Filter grade
EN 779/EN1822		 Airflow / pressure drop m³/h / Pa (± 15%) Unit
volume m³
305x610x292 M6 1700/100 0.054
610x610x292 M6 3400/100 0.108
305x610x292 F8 1700/135 0.054
610x610x292 F8 3400/135 0.108
305x610x150 H13 500/220 0.028
610x610x150 H13 1000/220 0.056
915x610x150 H13 1500/220 0.084
305x610x292 H13 1250/220 0.054
610x610x292 H13 2500/220 0.108
305x610x150 H14 500/220 0.028
610x610x150 H14 1000/220 0.056
915x610x150 H14 1500/220 0.084
305x610x292 H14 1250/220 0.054
610x610x292 H14 2500/220 0.108

FAQ
Q1. Are you a manufacturer?
Yes, we are a high-tech enterprise which with 20 years experience in developing and manufacturing various filters and purification equipments.
Q2. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your
branded boxes after getting your authorization letters.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 7 to 15 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of
your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
