Compact Design Clean Room HEPA Filters Easy Installation With HV Fiberglass
Compact Design Clean Room HEPA Filters Easy Installation With HV Fiberglass
Compact Design Clean Room HEPA Filters Easy Installation With HV Fiberglass
Compact Design Clean Room HEPA Filters Easy Installation With HV Fiberglass
Specifications
Brand Name :
indair
Model Number :
ID-MF-02
Certification :
CE,UL,ISO
Place of Origin :
CHINA
MOQ :
1
Price :
negotiable
Supply Ability :
1000 PCS PER DAY
Packaging Details :
CARTON WITH PLASTIC BAG
Frame Material :
Extruded Aluminum
Media :
Glass Fiber,PTFE
Face Guard :
Baking Finish
Temperature :
70℃
Efficiency :
H14，U15
Size :
customization
Description

H13 H14 Mini-Pleated HEPA Air Filter with HV fiberglass for clean room for GMP with CE

Product Description

Features

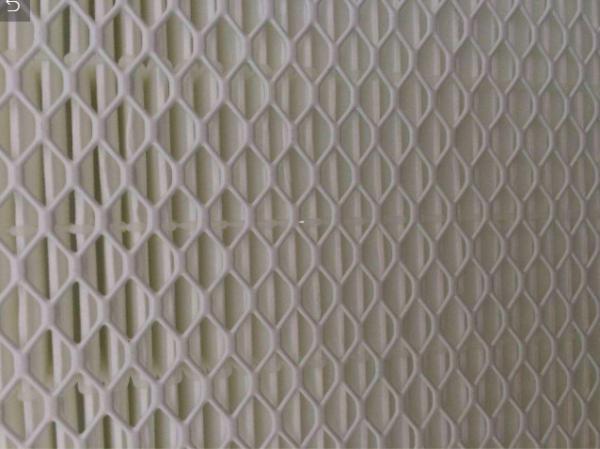

1. Mini-pleat design, operational cost saving, large air flow

2. Wide application, compact design, space-saving,low resistance

3. Ultra-thin design, installation space-saving

4. Efficiency:99.95%@MPPS(H13), 99.995%@MPPS(H14)

Product Details

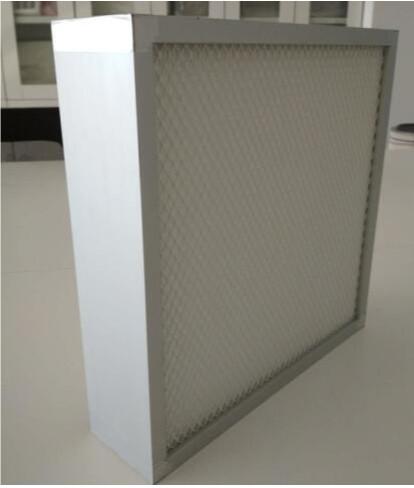

Type: Mini-pleat HEPA filter Gasket: CR,EVA,EPDM,PU

Frame: Extruded aluminum. Face guard: Baking finish

Separator: Hot-melt beads. Filter class(EN1822):H12, H13,H14

Media: H&V Glass fiber, PTFE Recommended final pressure drop.: 500 Pa.

Temperature / Humidity: 70°C / 100% RH


Standard Size

We not only produce all kinds of different normal size Mini-pleat HEPA filter,but also accept all kinds of customized
size Mini-pleat HEPA filter.Please choose what size you want to buy refer to the below table,

Model Dimensions
(W×H×D) mm
 Filter grade
EN1822		 Airflow / pressure drop m³/h / Pa (± 15%) Unit
volume m³
610x610x50 H13 603/130 0.041
1170X1170X50 H13 2218/125 0.082
1170x570x50 H13 1080/130 0.073
610x610x70 H13 603/110 0.026
1170X1170X70 H13 2218/105 0.052
1170x570x70 H13 1080/110 0.046
610x610x90 H13 603/85 0.033
1170X1170X90 H13 2218/80 0.066
1170x570x90 H13 1080/85 0.060
610x610x50 H14 603/140 0.041
1170X1170X50 H14 2218/135 0.082
1170x570x50 H14 1080/140 0.073
610x610x70 H14 603/120 0.026
1170X1170X70 H14 2218/115 0.052
1170x570x70 H14 1080/120 0.046
610x610x90 H14 603/95 0.033
1170X1170X90 H14 2218/90 0.066
1170x570x90 H14 1080/95 0.060

Compact Design Clean Room HEPA Filters Easy Installation With HV Fiberglass
