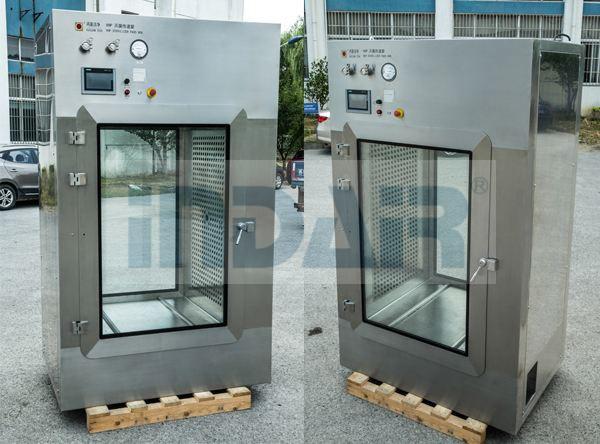

High Durability Stainless Steel Pass Box Wall / Floor Mounted Door With Viewing Glass
High Durability Stainless Steel Pass Box Wall / Floor Mounted Door With Viewing Glass
High Durability Stainless Steel Pass Box Wall / Floor Mounted Door With Viewing Glass
High Durability Stainless Steel Pass Box Wall / Floor Mounted Door With Viewing Glass
Specifications
Brand Name :
indair
Model Number :
ID-PB-05
Certification :
CE,ISO
Place of Origin :
China
MOQ :
1 unit
Price :
negotiable
Supply Ability :
100 unit per day
Delivery Time :
15 work days
Packaging Details :
Carton with plastic bag in Wooden Case
Material :
SUS 304 or 201
HEPA filter :
H13,H14
UV light :
Philips
Power Supply :
220V AC 1PH 50 Hz
air shower time(s) :
12 Second(0-99Second could changable)
qty of nozzle :
4
Description

SS304 Dynamic Pass Box Pass Through Window for pharmaceutical factory Vaporized

In pharmaceuticals manufacturing facilities, it is essential to minimise man/material movement and avoid crossing contamination between different classified areas to achieve desired classification and to maintain intergrity of products and processes. Pass box is designed to allow material transfer without much personnel movement. It also aids controlling ingress of particulate contaminations into clean room and between different classified areas.
Indair Clean Room System designs and manfactures static and dynamic pass boxes meeting different clients' special requirments. Option of choosing the type of pass box depends on the containment level and transfer of material from one class of cleanliness to other class of clieanliness.
Static Pass Box
* Double walled construction
* Electro-magnetic interlocking view panels
* Mechanical/Pneumatic interlocking
Dynamic Pass Box
* Two stages filtration
* Statically & dynamically balanced motor-blower
* Electro-megnetic interlocking

Features:

1, Electrical or Mechanical interlocking system.
2, Multiple Option of Materials to minimize the cost.
3, Door with viewing glass.
4, Air Shower Type
5, UV Lamp Sterilization
6, Easy-to-install by Wall Mounted or Floor Mounted
7, Customized Size and Function Design

Product and Solution Selection

1. Outer and Inner Dimension. The outer dimension should be decided according to clean room design, while the inner dimension is for the operation area.

2. The dynamic passbox is suit for the transmission happened from lower cleanliness environment to higher cleanliness environment. If the transmission happens between same cleanliness, static passbox is recommended.

3. The direction of door opening should be considered according to the position of passbox.

4. SUS 304 is recommended for the casing of passbox.
5. If the transfer cart is required in clean room, the floor-mounted passbox is recommended.

MODEL BC-060608T
OUTTER SIZE(W x D x H) 760 x 660 x 1350 mm
INNER SIZE(W x D x H) 600 x 600 x 800 mm
CLEAN CLASS ISO CLASS 5 (100)
AIR FLOW(m/s) 0.45m/s / 22 m/s
uv LIGHT Philips
qty of nozzle 4
air shower time(s) 12 Second(0-99Second could changable)
efficiency H13 HEPA filter G4 Pre-Filter
Medium Hepa Filter: Mini Pleated fiberglass:
material sus304,201,202
Power Supply 220V AC 1PH 50 Hz
Power 0.30 kW
G.W. (kg ) 274 kg
N.W.(kg ) 150 kg
SIZE(LxWxH,mm) 920 x 850 x 1580 mm

High Durability Stainless Steel Pass Box Wall / Floor Mounted Door With Viewing Glass
