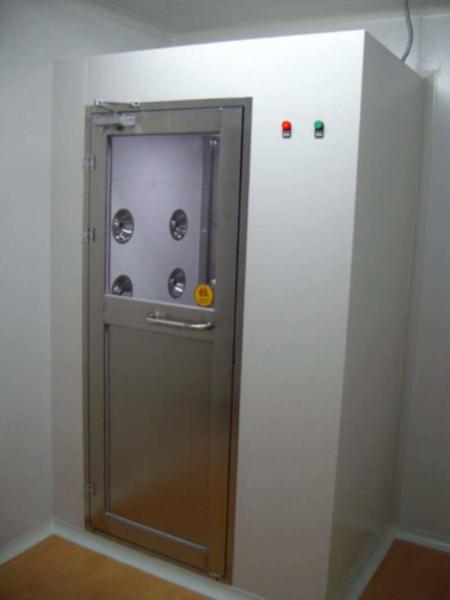

Cold-Roll Steel Sheets with Spray painting Cleanroom Air Shower 3.6kW Double Interlock Doors Great Flexibility
Cold-Roll Steel Sheets with Spray painting Cleanroom Air Shower 3.6kW Double Interlock Doors Great Flexibility
Cold-Roll Steel Sheets with Spray painting Cleanroom Air Shower 3.6kW Double Interlock Doors Great Flexibility
Cold-Roll Steel Sheets with Spray painting Cleanroom Air Shower 3.6kW Double Interlock Doors Great Flexibility
Specifications
Brand Name :
INDAIR
Model Number :
ID-AS(2)-02
Certification :
CE,ISO
Place of Origin :
CHINA
MOQ :
1
Price :
negotiable
Supply Ability :
500 units per days
Delivery Time :
15 work days
Packaging Details :
wooden case with carton
Material :
SS304,SS201
Power :
3.6kw
Nozzle :
12-36
Noise :
＜62 db
Door :
Interlock Door,Adjustable Time
HEPA :
H13,H14
Description

Pharmaceutical Industry stainless steel 12pcs nozzles lligent Stainless steel double interlock doors Air Shower​​

Product Application

Air shower series products are a kind of general partial purification equipment, novel structure, beautiful appearance, reliable operation, low energy consumption and energy saving, convenient maintenance, can be widely used in electronics, machinery, medicine, food, color printing packaging, brewing, wine, and all kinds of industrial and research fields such as bioengineering, usually installed in the clean room and non clean room, air shower is used to blow into the purification workshop of the human body and articles surface to prevent the air into the clean area without purification, air shower is to personal cleansing and outdoor air pollution prevention and effective equipment clean area.



Type: Double Person SUS304 Air Shower
˙ Outside Dimension (mm):1400W×1000D ×2100H
˙ Dimension of Air Shower Area (mm):800W×900D×1960H
˙ Applicable Number of People:1 person
˙ Materials: All Full Set Stainless SUS304 or coated cold rolled steel
˙ Number of Nozzle:12(Two Sides) Stainless Steel 304
˙ Mouth Diameter of Nozzle:Φ30mm
˙ Control panel:sus304 frame,LCD display, PLC control system
˙ Speed of Air Flow at the Nozzle:>28m/s
˙ Dimension of High Efficiency Air Filter (mm):600×600 ×120
˙ Lock:Electronic Interlock,two door can't open at the same time.
˙ Pre-Filter:600*350*10(mm),2PCs,synthetic fiber with aluminum
˙ HEPA Filter:2PCs,600*600*120(mm),
˙ FAN:2PCs,Power:0.55KW, Air Volume:1000/PCS,Air Pressure:1200Pa
˙ LAMP:1PCs LED light,Power:1*7W.
˙ Shower Time:0-99s adjustment
˙ HEPA Filter Efficiency:H13,99.995%@0.38um.
˙ Maximum Power Consumption:1.1KW
˙ Voltage ˙available:380VAC / 5Phase,50HZ(can make other standard voltage)

Main Features

1) Air shower can remove the dust from the surface of the man and the object, and it has the buffering and isolating effect on both clean and non-clean areas.

2) Air shower is widely used in biological pharmaceutical, biochemistry, medical and health, environmental monitoring, electronic instrument, food and beverage, daily cosmetics and other research and application fields.

3) Air shower smaller dimensions provides greater flexibility for preferred channel selection.

4) In order to effectively prevent the airflow in and out of the clean zone, as long as the outer door is opened, the air shower will start the air supply.

5) The wind time is 0-99s adjustable .

Model ASS Single Person ASD Double Person
HEPA H13,H14
Air Velocity(m/s) ≥25
Number of Nozzle 16 32
Power Supply AC380V/3P/50Hz
Power 1.8KW 3.6KW
Box Material High-grade steel with stoving varnish;SUS304
Floor Material High-grade steel with stoving varnish,SUS304 on the passageway
Door Interlock Door,Adjustable Time

External Dimension

W*H*D(mm)

 1200*1000*2100 1200*2000*2100
Internal Dimension(mm) 800*900*1960 800*1900*1960
Products Standard Q/320507 LDH012-2016
