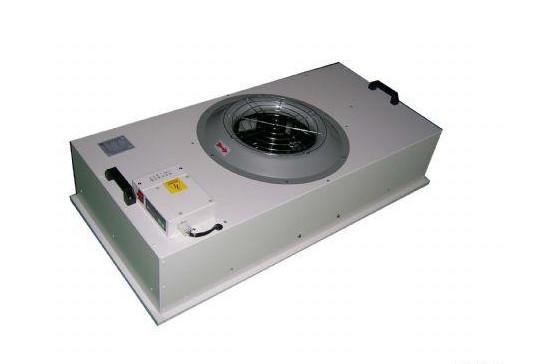

Ceiling Mount HV Fiberglass HEPA Fan Filter Unit For Clean Room
Ceiling Mount HV Fiberglass HEPA Fan Filter Unit For Clean Room
Specifications
Brand Name :
Indair
Model Number :
ID-FFU-004
Certification :
CE,UL,FM,ISO
Place of Origin :
CHINA
MOQ :
1
Price :
negotiable
Supply Ability :
1000 unit per workday
Packaging Details :
Standard export packing (Plastic Bag+foam+Carton+Wooden case)
Size :
1175*1175,575*575, 1175*575
Overbottom Pressure :
50-120pa
Noise dB :
≥42
HEPA efficiency :
99.995%（@0.3μm）/99.9995%（@0.12μm）
Media :
HV fiberglass or PTFE
Motor :
AC or DC
Description
Clean Room Ceiling Mount Hepa Fan Filter Unit With EMB Motor With HV Fiberglass HEPA Filter

Fan filter unit (FFU) is a type of motorized air filtering equipment. It is used to supply purified air to cleanrooms, laboratories, medical facilities or microenvironments by removing harmful airborne particles from recirculating air.[1] The units are installed within the system's ceiling or floor grid. Large cleanrooms require a proportionally large number of FFUs, which in some cases may range from several hundred to several thousand. Units often contain their own pre-filter, HEPA filter and internally controllable fan air distribution


Concept of FFU development:
1. To reduce running cost by saving energy;
2. To reduce construction cost and term by thin, light and compact structure;
3. To reduce initial cost by total design of clean room including noise spec. etc;
4. We development FFU units basing upon the above concept to meet all the requirements for constructing, operating and maintaining clean rooms.

Item FFU0612G/S/A-EC-H/U-E FFU1212G/S/A-EC-H/U-E
Size(mm) 1175×575×280 1175×1175×320
Speed(m/s) 0.35 0.4 0.45 0.35 0.4 0.45
Overbottom Pressure(Pa) 50 120 50 120 50 120 50 120 50 120 50 120
Normal Power Dissipatio(W) 75 98 80 105 85 115 110 165 145 200 190 245
Max Power Dissipation(W) 200 200 200 320 320 320
Noise dB(A) 42 44 46 48 49 51 50 53 52 55 55 57
HEPA efficiency 99.995%(@0.3μm)/99.9995%(@0.12μm)
HEPA Size (mm) 1170×570×70 ( 90 ) 1170×1170×70 ( 90 )
Supply Power AC,220V/50Hz
Control DC Motor FFU,5 speed control,system control
　 Aluminium zinc plate,aluminum,SUS304,SUS430,SUS201

The advanced test instruments to make sure our products be excllent and ensure our product with advanced techonlogy.

1. MPPS

2, DOP TEST INSTRUMENTS

3, All performance test instruments

4, Nosie room to make sure the noise of our FFU is lower than any other factory

5, Scan test instrument

6, Partical counter

7, Air Capture Hood

Ceiling Mount HV Fiberglass HEPA Fan Filter Unit For Clean Room
