Specifications
Brand Name :
QS
Model Number :
QS-AF-001
Certification :
ISO9001,ISO14001
Place of Origin :
China
MOQ :
10 roll
Price :
Negotiable
Supply Ability :
100rolls/day
Packaging Details :
1roll/bag
Material :
100% Polyester
Feature :
Anti-Static, Waterproof，Washable, Strong Lamination
Density :
165*89
Width :
56/57"
Color :
Regular is White, other colors can be customized
Style :
Plain
Description

5 Mm Striped Conductive Polyester Anti-Static Woven Fabric

1. Production data sheet

ITEM
5MM STRIPE

5MM GRID

2.5MM GRID

COMPOSITION

99% Polyyarn

1% conductive fiber

99% Polyyarn

1% conductive fiber

98%Poly

yarn

2% conductive

fiber

98% poly

yarn

2% conductive

fiber

96% poly yarn

4% conductive fiber

WEAVE

1/2 twill

Plain / twill

1/2 twill

Plain / twill

(3/2twill)

2/3 twill

WEIGHT

g/m2

 125 110 125 110 130
YARN TYPE 100D 75D 100D 75D 100D
WIDTH 150 cm 150 cm 150 cm
AIR PERMEABILITY 30 c.c/cm 2/sec 30 c.c/cm 2/sec 18 c.c/cm 2/sec
SURFACE RESISTIVITY 106 ~ 108 ohm/unit 106 ~ 108 ohm/unit 105 ~ 107 ohm/unit
FRICTION CHARGES < 300 V < 100 V < 15 V

ELECTRICAL

POTENTIAL

0.4 μC/m2

0.3 μC/m2

0.1 μC/m2
DECAY TIME 1.0 sec 0.5 sec 0.1 sec
PARTICLE GENERATION 60%--80% 60%--80% 80%--90%
TEAR STRENGTH

Warp 4100gf

Weft 6250gf

Warp 4170gf

Weft 6000gf

Warp 4500

Weft 6050gf
TENSILE STRENGTH

Warp 820N

Weft 1590N

Warp 830N

Weft 1580N

Warp 860N

Weft 1270N
COLOR RETENTION 4-5

2.Product Description:


High quality anti-static polyester dust-proof work clothes fabric, made of polyester yarn.
Operating personnel wearing comfortable, grounded or anti-static anti-static clothing is the most effective protection measures for the company.
Antistatic fabrics are guaranteed to pass the Antistatic Association standard and continue to protect your products.
We also offer a wide variety of colors, fabrics and styles.

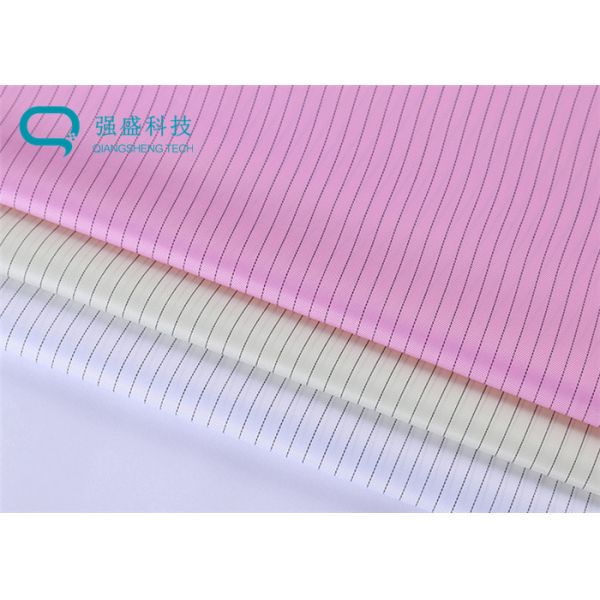

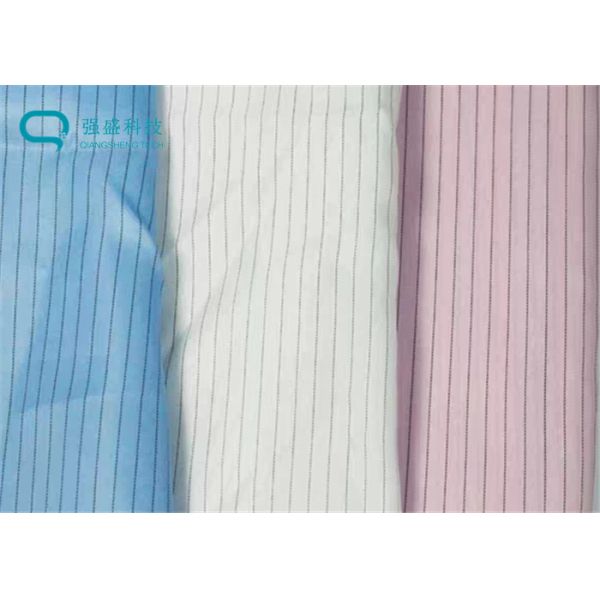

3. Picture

5 Mm Striped Conductive Polyester Woven Fabric Anti Static5 Mm Striped Conductive Polyester Woven Fabric Anti Static

5 Mm Striped Conductive Polyester Woven Fabric Anti Static5 Mm Striped Conductive Polyester Woven Fabric Anti Static
