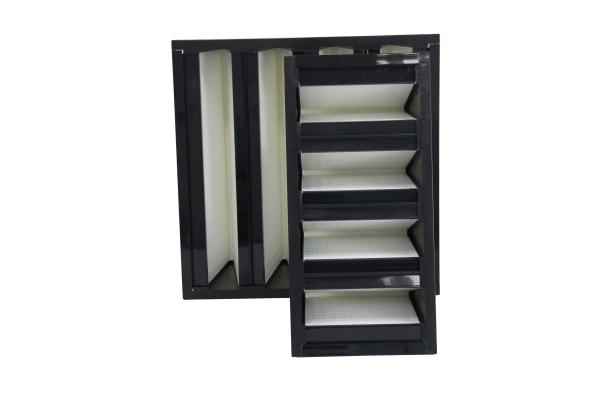

Hot Melt Gule Separated Commercial Hvac Filters , Plastic Frame V Form Filters
Hot Melt Gule Separated Commercial Hvac Filters , Plastic Frame V Form Filters
Hot Melt Gule Separated Commercial Hvac Filters , Plastic Frame V Form Filters
Hot Melt Gule Separated Commercial Hvac Filters , Plastic Frame V Form Filters
Specifications
Brand Name :
XNGK
Model Number :
XN-VB3
Certification :
CE RoHS Reach & ISO 9001
Place of Origin :
Shenzhen
MOQ :
1
Price :
Negotiable
Payment Terms :
Western Union, T/T, MoneyGram, Paypal
Supply Ability :
1000 pieces per month
Delivery Time :
10 - 20 working days
Packaging Details :
Poly bag inside, Carton box outside, Wooden pallet or wooden case as required
Frame :
ABS Plastic
Filter media :
Glass fiber or polyester fiber(PP)
Filter Efficiency :
F8, F9, H10, H11
Application :
Commercial HVAC
Separator :
hot-melt
Gasket :
EVA
Sealant :
Gel - glue
Description

Hot melt gule separated sub efficiency plastic frame V Bank air filter with big rated air flow

1, Main features:

Long service life, large rated air flow, low resistance, large amount of dust capacity, etc.

2, Some standard sizes in my factory:

(Note: We can also produce the costomized sizes as your required)

Model Outside dimensions
(mm)		 Rated air flow
(m3/h)		 Initial resistance
(Pa)		 Efficiency Filter materials
XN-YGX2V-8J 287*287*292 800 ≤ 125 95%(F8)/99%(F9) Polyester Fiber (PP)
Glass Fiber
XN-YGX3V-12J 490*287*292 1200 ≤ 125 95%(F8)/99%(F9)
XN-YGX3V-20J 490*490*292 2000 ≤ 125 95%(F8)/99%(F9)
XN-YGX3V-20J 592*490*292 2000 ≤ 125 95%(F8)/99%(F9)
XN-YGX4V-22J 592*490*292 2700 ≤ 125 95%(F8)/99%(F3)
XN-YGX4V-16J 592*287*292 1600 ≤ 125 95%(F8)/99%(F9)
XN-YGX3V-22J 592*592*292 2400 ≤ 125 95%(F8)/99%(F9)
XN-YGX4V-32J 592*592*292 3200 ≤ 125 95%(F8)/99%(F9)


For pharmaceutical or hospital operating room the v shape filter is quite necessary because those industries have many big size cleanroom. It means the airflow for HVAC system is quite large also.

Normally the pocket filter cannot meet all the strict requirement for HVAC system filtration. The turbulence airflow make pocket filter perform badly and pocket filter cannot be used in moist environment.

V shape filter is an ideal filter for high air flow rate and high humidity HVAC system, mini pleated design make the filter area large enough to provide low resistance and high dust holding ability.

Plastic ABS frame can be stand high velocity and won`t be deformed or broken easily.

Applications:

For pharmaceutical or hospital operating room, LED, micron electronics, food processing and other industries and so on;

Specifications:

Glass fiber or polyester media

ABS plastic frame

Neoprene gasket

Polyurethane sealant

F6, F7, F8, F9 or MERV 14, 15 available, customized efficiency
