G1-G4 Primary Panel Air Filter , Nylon Mesh Filter Large Air Flow Washable Screen
G1-G4 Primary Panel Air Filter , Nylon Mesh Filter Large Air Flow Washable Screen
G1-G4 Primary Panel Air Filter , Nylon Mesh Filter Large Air Flow Washable Screen
G1-G4 Primary Panel Air Filter , Nylon Mesh Filter Large Air Flow Washable Screen
G1-G4 Primary Panel Air Filter , Nylon Mesh Filter Large Air Flow Washable Screen
G1-G4 Primary Panel Air Filter , Nylon Mesh Filter Large Air Flow Washable Screen
G1-G4 Primary Panel Air Filter , Nylon Mesh Filter Large Air Flow Washable Screen
G1-G4 Primary Panel Air Filter , Nylon Mesh Filter Large Air Flow Washable Screen
G1-G4 Primary Panel Air Filter , Nylon Mesh Filter Large Air Flow Washable Screen
G1-G4 Primary Panel Air Filter , Nylon Mesh Filter Large Air Flow Washable Screen
G1-G4 Primary Panel Air Filter , Nylon Mesh Filter Large Air Flow Washable Screen
G1-G4 Primary Panel Air Filter , Nylon Mesh Filter Large Air Flow Washable Screen
Specifications
Brand Name :
SAF
Model Number :
XN-N
Certification :
CE/ROHS/ISO
Place of Origin :
Shezhen China
MOQ :
50
Price :
US $4-9 / Piece
Supply Ability :
5000piece per month
Packaging Details :
All the Nylon mesh air filters are packed by carton box+Plywood sheild
Efficiency :
G1-G4
Construction :
Panel Filter
Filtration Grade: :
Pre Filter
Medium Material: :
Nylon Mesh
Porosity: :
5um
Dimension(L*W*H): :
customized or standard size
Warranty: :
6 months
Frame: :
alvanized sheet/Aluminum Alloys/palstic
Media: :
nylon mesh
Description

G1-G4 Primary Panel Filter nylon mesh pre air filter large air flow washable screen

1. Feature

1. G4 Coarse air filter is available in efficiency of 90% on 5 micron particles;

2. Large air flow;

3. Low resistance;

4. High dust holding capacity;

5. Long service life;

6. Used as first stage filters in air condition system and as prefilters in multilevel filtering system.

Material and Performance

Frame Material Aluminum
Filter medium Filter cotton
protect nets Aluminum nets
Max. temperature 80°C
Max. humidity 80%RH


2. Advantages :

The filter core consists of a reinforced polyester fiber media bonded to an expanded metal support grid which is then Pleated, increasing the Filtration surface area to 3 times that of the face area. These series have such features as available in efficiency of 90% on 5 micron particles, large airflow, low resistance, high dust holding capacity, reasonable price and low cost.

3. Specification and Technical parameters:

Model

Size

L*W*H (mm)

Rated airflow

(m³/h)

 Initial resistance (pa)

Efficiency

(Colorimetric method)
C-G 595*595*46 3000 60 G3 / G4
C-G 595*495*46 2500
C-G 595*295*46 1500
C-G 495*495*46 2000

Special size can be according to customer special requirement

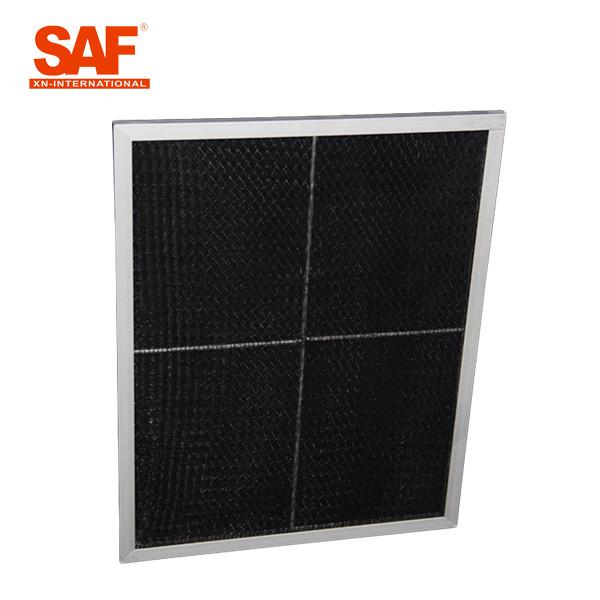

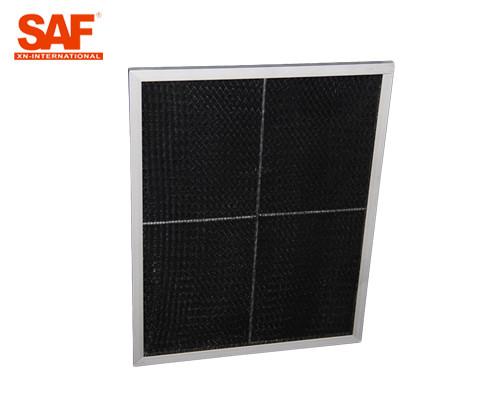

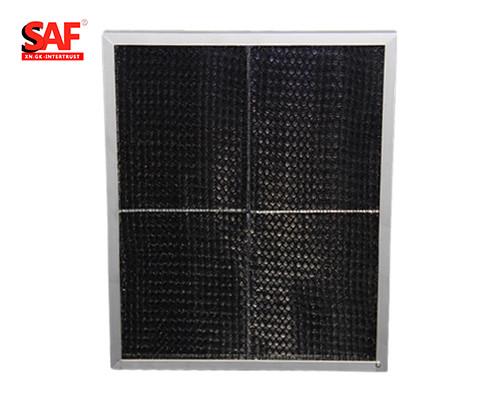

4,Picture of details :

G1-G4 Primary Panel Air Filter , Nylon Mesh Filter Large Air Flow Washable Screen

G1-G4 Primary Panel Air Filter , Nylon Mesh Filter Large Air Flow Washable Screen

G1-G4 Primary Panel Air Filter , Nylon Mesh Filter Large Air Flow Washable Screen
