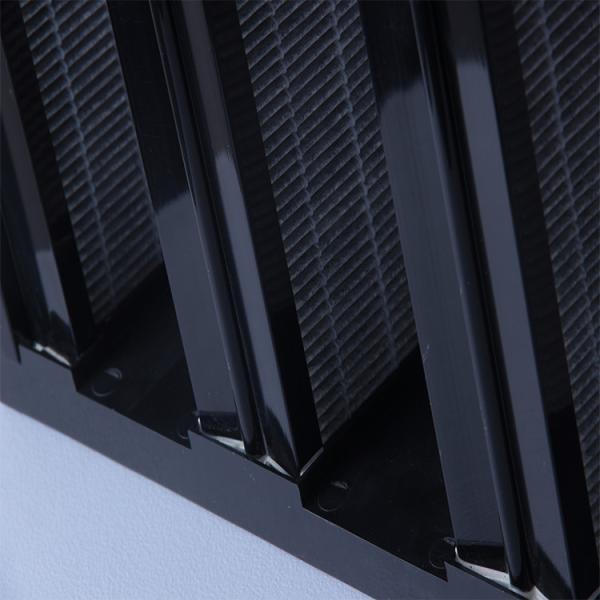

Activated Carbon Material V Bank Filter , Compact Custom Air Filters With Abs Frame
Activated Carbon Material V Bank Filter , Compact Custom Air Filters With Abs Frame
Specifications
Brand Name :
xngk
Certification :
CE/ROHS/ISO9001
Place of Origin :
China
MOQ :
10
Payment Terms :
T/T or western Union or LC
Supply Ability :
3,000pcs per month
Delivery Time :
7-15 working days according to the QTY
Packaging Details :
Plastic bag inside, carton box outside, wooden case reinforced
condition :
New
Efficiency :
95%
Media :
Activated carbon filtration
construction :
v bank shape
Dimension :
490*490*292 or customized size
weight :
2-3kg
Description

Activated Carbon Material V Bank Filter , Compact Custom Air Filters With Abs Frame

Advantages of ABS plastic frame:

  • ABS plastic frame: Large effective filtration area,low resistance, light weight, large dust volum , high air volume
  • When ABS is incinerated, it does not produce poisonous gas, which is good for environmental protection or waste disposal.
  • It can be used as the prefiltration of high efficiency air filter, with mounting flange(25mm thickness)

Application:

  • Clean room ,commercial and industrial ventilation air conditioning system main filter
  • High humidity ventilation system
  • Variable air ventilation air conditioning system
  • Install a tight ventilation system
  • The environment of peculiar smell or organic matter ,such as :industry ,hospital pharmacy, food industry.

Regular size and parameter:

Model

Dimension

(L*W*H)mm

Rated airflow

(m3/h)

initial resistance

(Pa)

Efficiency

(%)

 Activated carbon diameter

XN-YGX2V-8J

 287*287*292 800 ≤125

95%

1.5mm

2mm

3mm

4mm

XN-YGX3V-12J

 490*287*292 1200

XN-YGX3V-20J

 490*490*292 2000

XN-YGX3V-20J

 592*490*292 2000

XN-YGX4V-22J

 592*490*292 2700

XN-YGX4V-16J

 592*287*292 1600

XN-YGX3V-22J

 592*592*292 2400

XN-YGX4V-32J

 592*592*292 3200

Activated Carbon Material V Bank Filter , Compact Custom Air Filters With Abs Frame
