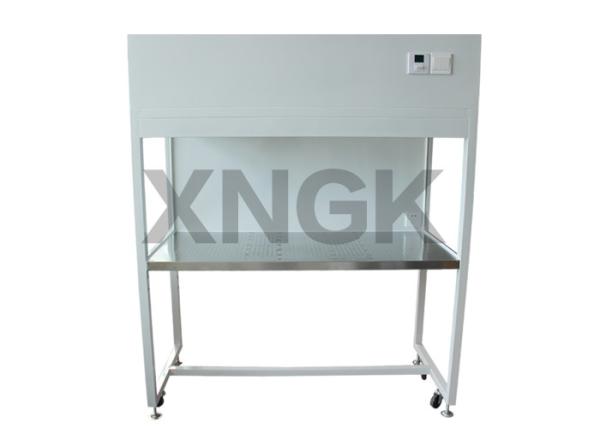

Class 100 Laminar Flow Hoods Painted Steel Frame Fluorescent Lamp / UV Light
Class 100 Laminar Flow Hoods Painted Steel Frame Fluorescent Lamp / UV Light
Class 100 Laminar Flow Hoods Painted Steel Frame Fluorescent Lamp / UV Light
Class 100 Laminar Flow Hoods Painted Steel Frame Fluorescent Lamp / UV Light
Specifications
Brand Name :
XNGK
Model Number :
XN-LFH
Certification :
ISO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, Western Union
Delivery Time :
10-15 working days
Packaging Details :
Wooden case
Frame :
SUS, painted Steel
Efficiency :
Class 100, 99.99% @ 0.3um
Size :
Customized
Airflow :
vertical or horizontal
Light :
UV
Work Plate form :
Stainless steel
Description

for Clean Room Laminar Flow Hoods Class 100 Painted Steel Frame

Laminar Flow Hoods

Features
Speed control
Lower operating budget design
Low operating noise
Customized dimension

Frame: stainless steel or painted steel.
Type: horizontal or vertical
Platform: stainless steel with holes or without
Light: fluorescent lamp or UV light
Pressure gauge: if required
Air velocity adjustable: three level adjust
or infinitely variable speeds.
Fan: 315mm diameter aluminum alloy, back centrifugal fan.
( or EBM fan made in Germany )
Air velocity: 0.45m/s±20% adjustable
Working area cleanliness level: class 100.
( max particle contain: 3530pcs per CBM @ 0.3μm )
Usage environment: temp 80℃,humidify: 80%
Power system: AC or DC.


Option
Pressure gauge
Control system
UV light

Mini-pleated HEPA Filter inside
Efficiency: H13, H14, U15 ( EN:1822 )
Filter media: glass fiber
External frame: aluminum alloy
Sealant: polyurethane
Gasket: EVA or fluid gel
Face guard: painted metal steel ( both inlet and outlet side )
