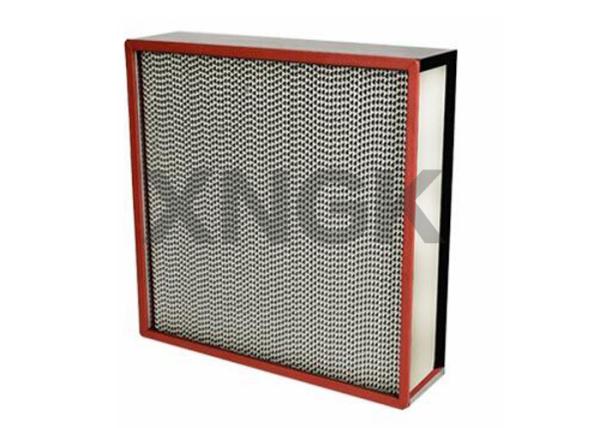

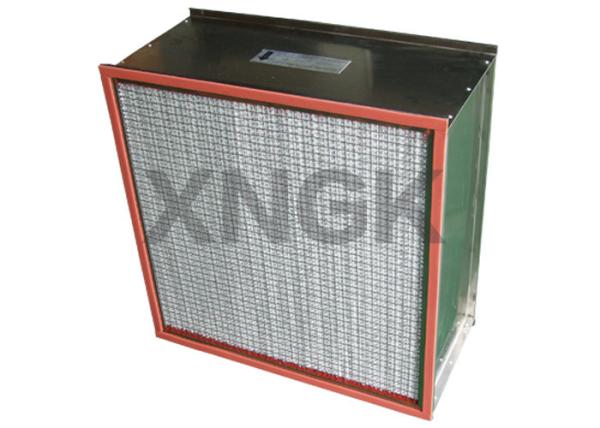

Flange Type Oven Air Filters High Temperature High Dust Holding Ability
Flange Type Oven Air Filters High Temperature High Dust Holding Ability
Flange Type Oven Air Filters High Temperature High Dust Holding Ability
Flange Type Oven Air Filters High Temperature High Dust Holding Ability
Specifications
Brand Name :
XNGK
Model Number :
XN-HT
Certification :
ISO
Place of Origin :
China
MOQ :
1 pcs
Price :
negoniation
Delivery Time :
10-15 working days
Packaging Details :
plastic bag inside, carton box outside, wooden case reinforced if required
Frame :
Stainless Steel 201, 304, galvanized steel
Filter material :
glass fiber
temperature :
250 ℃
sealant :
red silicone glue
separator :
aluminum foil corrugated
gasket :
silicone
Description

High Temperature Oven HEPA Air Filters Flange Type Stainless Steel Frame

Features

High temperature resistance 250 ℃, 500 ℉

Stainless steel frame make the filters very strong

high dust holding ability glass fiber material

Aluminum alloy separator high temperature resistant

low resistance folded filter material, lager air filter area

Description

The high temperature HEPA filters are typically designed for high temperature applications, such as oven tunnel, dry heat sterilizer and so on;

Technical parameters

Design

Size

Efficiency

Air flow rate / Initial pressure drop

( m3/h / Pa )

Media area

( m2)

Box

 305*610*292 H13 1700 / 250 6.5
610*610*292 H13 3400 / 250 13.5
Flange type 287*595*292 H13 1700 / 250 6.0
595*595*292 H13 3400 / 250 13.0

Box

 305*610*150 H13 1200 / 250 3.0
610*610*150 H13 2500 / 250 6.0
Flange type 287*595*150 H13 1200 / 250 2.5
595*595*150 H13 2500 / 250 6.0

Pressure drop range: ±15%

According to clients` requirements offer different specifications
