Specifications
Brand Name :
XNGK
Model Number :
XN-HT
Certification :
ISO
Place of Origin :
China
MOQ :
1 pcs
Price :
negoniation
Delivery Time :
10-12 working days
Packaging Details :
plastic bag inside, carton box outside, wooden case reinforced if required
Payment Terms :
T/T, Western Union
Frame :
Stainless Steel 201, 304, galvanized steel
Filter material :
glass fiber
temperature :
250 ℃
sealant :
Red silicone glue
separator :
aluminum foil corrugated
gasket :
silicone
Description

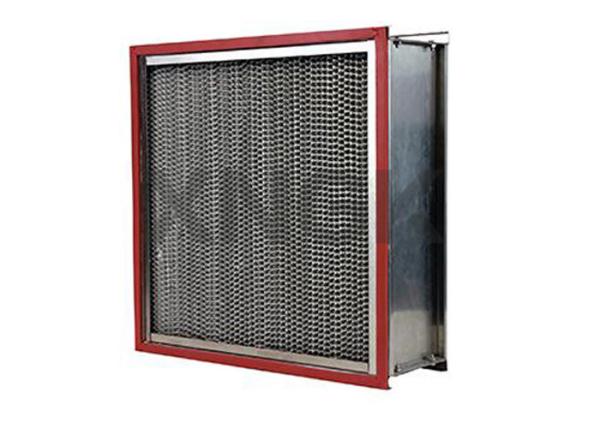

High Temperature HEPA Filters Stainless Steel Frame 250 ℃ H13 Efficiency

Features

High temperature resistance

High air flow rate

Low pressure drop

Robust frame

Description

Filter media: heat resistant glass fiber

Frame: 304 Stainless steel, 210 stainless steel, gal steel

Efficiency: F7, F8, H10, H11, H12, H13, H14 ( EN: 1822 )

Usage environment: temp resistance ( 250 to 400℃, humidity 80% )

Recommend final pressure drop: 400Pa

Separator: corrugated aluminum foil

Gasket: heat resistant silicone (250℃), glass fiber bar (400℃)

Sealant: heat resistant silicone gel (250℃), ceramic adhesive (400℃)

Face guard: aluminum or stainless steel mesh ( both inlet and outlet side )

Applications: Final filters for commercial & industrial,

clean room air ventilation system, ventilation systems of high running temperature.

Technical parameters

Design

Size

Efficiency

Air flow rate / Initial pressure drop

( m3/h / Pa )

Air flow rate / Initial pressure drop

( m3/h / Pa )

Media area

( m2)

Box

305*610*292 F7 1000 / 85 1700 / 140 6.5
F8 1000 / 100 1700 / 165
610*610*292 F7 2000 / 85 3400 / 140 13.5
F8 2000 / 10 3400 / 165
Flange type 287*595*292 F7 1000 / 95 1700 / 150 6.0
F8 1000 / 110 1700 / 1850
595*595*292 F7 2000 / 95 3400 / 150 13.0
F8 2000 / 110 3400 / 185

Box

305*610*150 F7 700 / 85 1200 / 140 3.0
F8 700 / 100 1200 / 165
610*610*150 F7 1500 / 85 2500 / 140 6.0
F8 1500 / 100 2500 / 165
Flange type 287*595*150 F7 700 / 95 1200 / 150 2.5
F8 700 / 1105 1200 / 185
595*595*150 F7 1500 / 95 2500 / 150 6.0
F8 1500 / 110 2500 / 185

Pressure drop range: ±15%

According to clients` requirements offer different specifications
