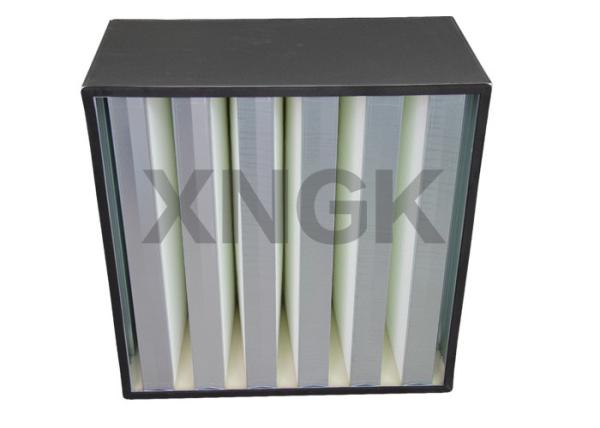

99.99% HV Hepa H14 Filter Fiberglass Media , Air Filtration System House Hepa Filter
99.99% HV Hepa H14 Filter Fiberglass Media , Air Filtration System House Hepa Filter
99.99% HV Hepa H14 Filter Fiberglass Media , Air Filtration System House Hepa Filter
99.99% HV Hepa H14 Filter Fiberglass Media , Air Filtration System House Hepa Filter
Specifications
Brand Name :
XNGK
Model Number :
XN-HV
Certification :
CE ROHS
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
Western Union, T/T
Supply Ability :
1000 sets per month
Delivery Time :
10 - 20 working days
Packaging Details :
Plastic bag inside, carton box outside, wooden case if required
Frame :
ABS Plastic, SUS, Gal, AL board
Filter media :
Glass fiber HV
Filter Efficiency :
H13 H14 EN:1822
Application :
HVAC terminal filter
Final pressure drop :
600 Pa
Separator :
hot-melt
Gasket :
Neoprene
Description

H13 H14 99.99% HV HEPA Filter Metal Frame Glass Fiber Media for Cleanroom

Description

Efficiency H13 H14 for HVAC cleanroom ternimal filtration system that require high airflow;

Plastic or metal frame, strong design;

HV company glass fiber provide quite good performance;

Large dust holding ability;

High air flow rate as much as to 4000m³ per hour;

Endless dove tailed EVA neoprene gasket around the frame inlet or outlet side;

Hot-melt separator stand the filter media in right position;

V cell design make full use of the space to provide large air filter area;

Every HEPA filters with be tested by DOP or MPPS make sure it`s good quality;

Air Pressure drop and air flow rate data Sheet:

Size Efficiency Air Flow Rate Pressure drop
610*610*292 mm - 5V H13 3600 m³/h 250 Pa
310*610*292 mm - 5V H13 1800 m³/h 250 Pa
595*595*292 mm - 5V H13 3000 m³/h 250 Pa
287*595*292 mm - 5V H13 1500 m³/h 250 Pa

Pressure drop range: ±15%

According to clients` requirements offer different specifications
