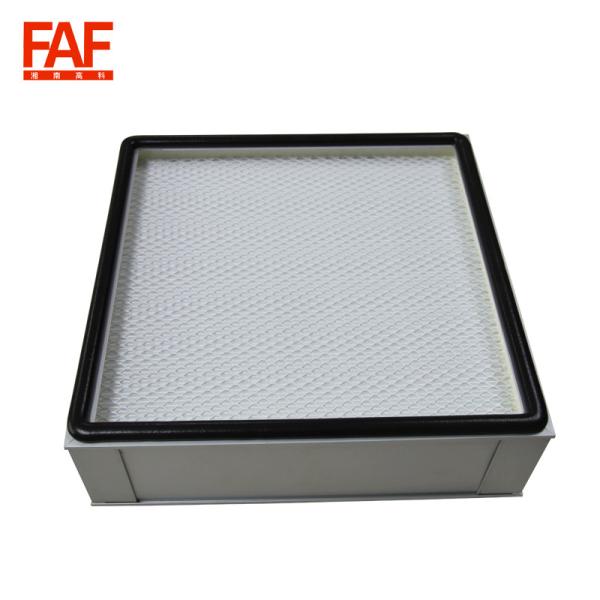

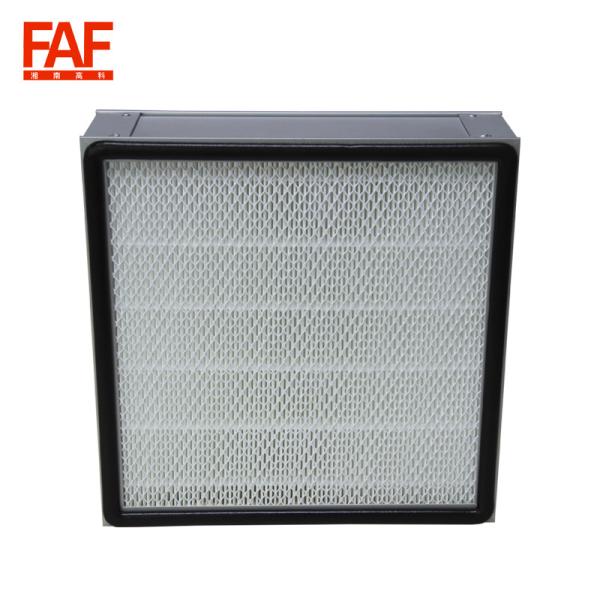

0.03mm Thickness High Volume HEPA Filter , Mini Pleat HEPA Filter With Fiberglass Material
0.03mm Thickness High Volume HEPA Filter , Mini Pleat HEPA Filter With Fiberglass Material
0.03mm Thickness High Volume HEPA Filter , Mini Pleat HEPA Filter With Fiberglass Material
0.03mm Thickness High Volume HEPA Filter , Mini Pleat HEPA Filter With Fiberglass Material
0.03mm Thickness High Volume HEPA Filter , Mini Pleat HEPA Filter With Fiberglass Material
0.03mm Thickness High Volume HEPA Filter , Mini Pleat HEPA Filter With Fiberglass Material
Specifications
Brand Name :
FAF
Model Number :
XN-TRUST
Certification :
CE, ROHS
MOQ :
5
Payment Terms :
T/T
Supply Ability :
10000 Piece/Pieces per Week
Delivery Time :
7 work days
Packaging Details :
1/2pcs package with plastic bag then in a carton(according to the size of the Hepa Filter Price),or according to customers requirement..
Efficiency: :
99.999%
Construction: :
Box Filter
Filtration Grade: :
Hepa Filter
Medium Material: :
Fiberglass
Porosity :
0.3um
Place of Origin: :
Shenzhen China
Weight: :
10kg--15kg
Certification: :
ISO900
Material: :
Fiber Glass or with aluminum foil separation
Frame: :
Aluminium Alloy , Galvanized, Stainless steel
Description

Pharmaceutical Filtration Mini- Pleat HEPA Filter

Speciality

  1. Waveness aluminum foil pleat or the paper pleat can make use of the filtration material completely. The thickness of the aluminum foil is 0.03mm, the height of the eaveness is 4mm, which make sure of the filtration area and the quality of the filter.

  2. The filtration material is the high density paper which is made from super fine fibregalss. Pleat the filtration paper(made from the fiberglass) in order to enlarge the filtration area as large as possiblle and to slowdownt the filtration speed. It is very important for HEPA filter.

  3. Laser tested one by one; Temp resistance up to 80C, Small resistance high efficiency; Long service life.

  4. Applied to the terminal filtration for the air-condition filtration system. Used in hospital, electronic industry, food, precision instrument, electron semiconductors.

Specification
Model Dimensions(mm)

Rated air flow

(/h)

 Efficiency Material
Width*Height*Depth separator sealant frame

XN -TRUST

 320×320×220 400

〉99.99% Sodium flame

Alumi foil/ paperboard

AB/glue (Polyurethane)

Wooden/ alumi sheet/galvanized/alumi alloy frame/SS
484×484×220 1000
610×610×150 1000
820×600×150 1200
630×630×220 1500
968×484×220 2000
945×630×220 2200
1260×630×220 3000

Parameter
Efficiency: 99.99%(H13)
Filtration grade: HEPA filter
Porosity: 0.3micron particles
Plade of origin: Shenzhen China
Model number: XN-TRUST
Certification: ISO9001
Warranty: One year
Separator: Alumi foil/ paperboard
Sealant: AB/glue (Polyurethane)
Media: Glass fiber paper
Temperature max: 80℃


0.03mm Thickness High Volume HEPA Filter , Mini Pleat HEPA Filter With Fiberglass Material0.03mm Thickness High Volume HEPA Filter , Mini Pleat HEPA Filter With Fiberglass Material0.03mm Thickness High Volume HEPA Filter , Mini Pleat HEPA Filter With Fiberglass Material
