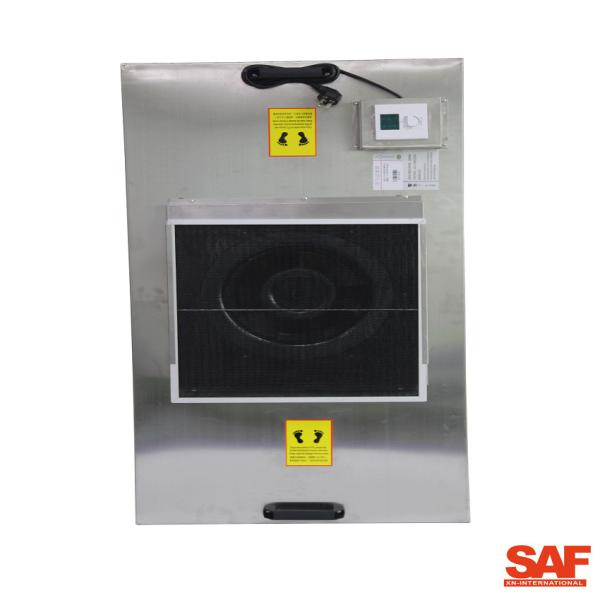

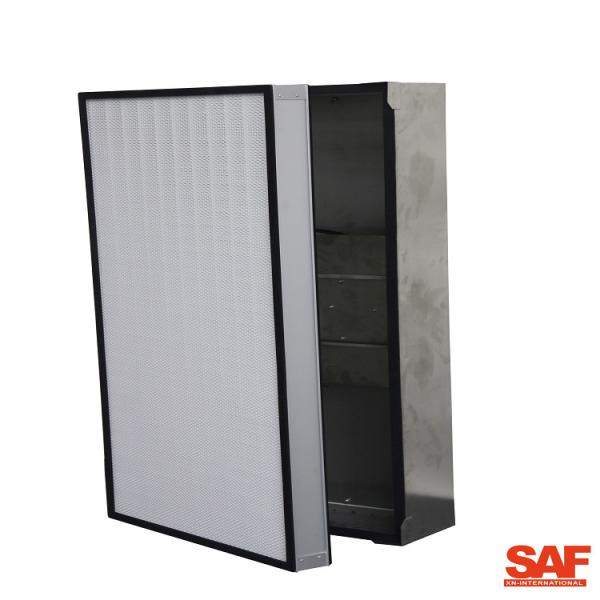

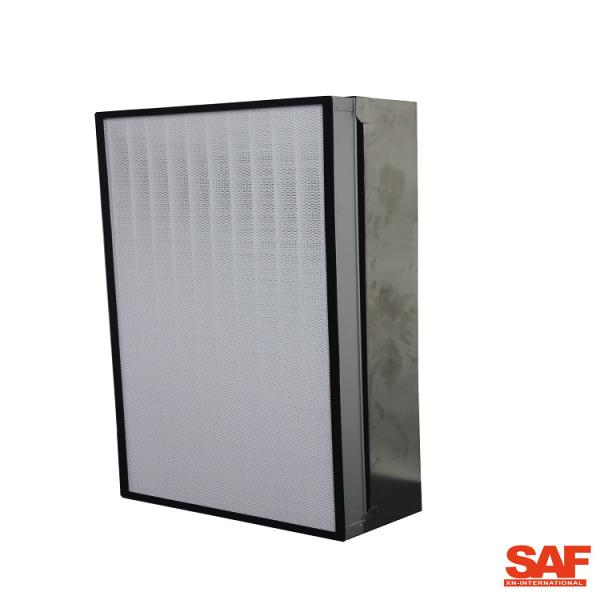

Stainless Steel Frame Ceiling Hepa Filter , Terminal Hepa Filter Easily Maintainance
Stainless Steel Frame Ceiling Hepa Filter , Terminal Hepa Filter Easily Maintainance
Stainless Steel Frame Ceiling Hepa Filter , Terminal Hepa Filter Easily Maintainance
Stainless Steel Frame Ceiling Hepa Filter , Terminal Hepa Filter Easily Maintainance
Stainless Steel Frame Ceiling Hepa Filter , Terminal Hepa Filter Easily Maintainance
Stainless Steel Frame Ceiling Hepa Filter , Terminal Hepa Filter Easily Maintainance
Stainless Steel Frame Ceiling Hepa Filter , Terminal Hepa Filter Easily Maintainance
Stainless Steel Frame Ceiling Hepa Filter , Terminal Hepa Filter Easily Maintainance
Specifications
Brand Name :
XNGK
Model Number :
XN-FFU01
Certification :
ISO,CE, Reach & RoHS
Place of Origin :
Shenzhen
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram,Paypal
Supply Ability :
1000 sets per month
Delivery Time :
15-20 working days
Packaging Details :
Carbon box, wooden case
Frame :
Stainless steel, gal, painted steel
Filter :
HEPA 99.99%
Fan :
EBM back centrifugal
Size :
Customized
Power :
220V, 50Hz, Other standard also available
Speed control :
Adjustable
Noise :
54 - 60 Db
Description

Stainless steel frame low noise household FFU series with factory price

Fan filter unit is ideal equipment for clean room class 10 to class 300,000; consist of housing , HEPA filter, controller, AC/DC motor, aluminum back centrifugal impeller;

Fan filter unit is very easily to be installed on the ceiling grid, HEPA filters also very easily to be replaced. This is the main reason FFU fan filter unit become more and more common in HVAC clean room project.

As it`s with motor, so it can have better performance for airflow than terminal ceiling modules.

The advantageous of fan filter unit:

  • Longer service life, low noise, very easily to maintain;
  • Infinity speed control, air flow rate evenly at 0.45m/s;
  • Fan filter unit can be controlled individually or be controlled by group;

The standard size in my factory:

Model
Parameter		 XN-FFU-122Z XN-FFU-117Z XN-FFU-61Z XN-FFU-57Z
Rated air flow(m3/h) 2000 1800 1000 900
NoiseDb (A) 54 - 60
Hepa filter efficiency ≥ 99.99% - 99.9995% (@ ≥ 0.3um)
Power AC220V±10%,50±2HZ /AC110V±10%,60±2HZ
The input power(W) 180 180 145 75
External Size(MM) 1220*610*390 1170*570*340 610*610*390 570*570*340
HEPA Size 1220*610*69 1170*570*69 610*610*69 570*570*69
Pre Filter Size 495*495*21 495*495*21 395*395*21 395*395321

( Any other customized sizes also could be made just as your required)
