Clean Room Fan Filter Unit HEPA Filter 99.99 Efficiency Adjustable Speed Control
Clean Room Fan Filter Unit HEPA Filter 99.99 Efficiency Adjustable Speed Control
Clean Room Fan Filter Unit HEPA Filter 99.99 Efficiency Adjustable Speed Control
Clean Room Fan Filter Unit HEPA Filter 99.99 Efficiency Adjustable Speed Control
Specifications
Brand Name :
XNGK
Model Number :
XN-FFU
Certification :
ISO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
1000 sets per month
Delivery Time :
15-20 working days
Packaging Details :
Carbon box, wooden case
Frame :
Stainless steel, gal, painted steel
Filter :
HEPA 99.99%
Fan :
EBM back centrifugal
Size :
Customized
Power :
220V, 50Hz, Other standard also available
Speed control :
Adjustable
Description

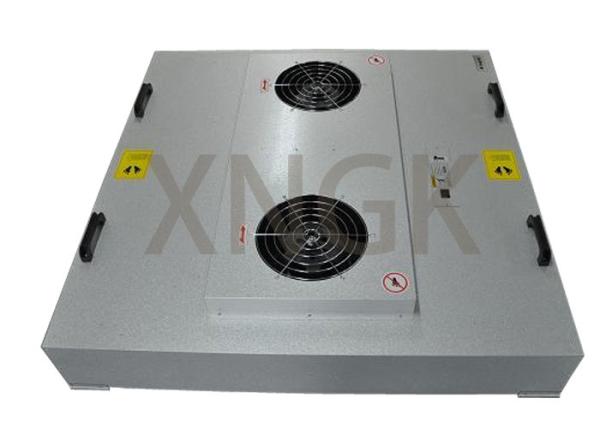

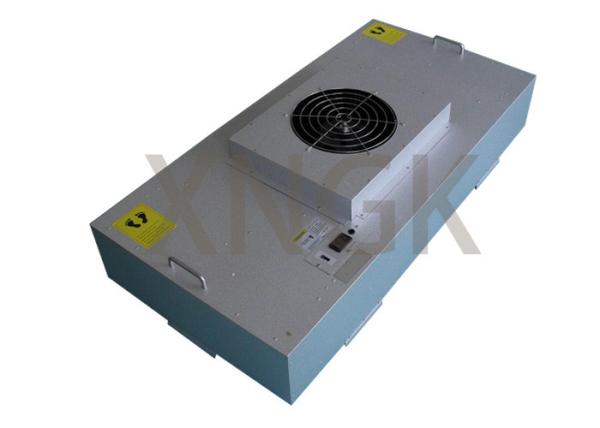

Cleanroom Fan Filter Unit HEPA Efficiency 99.99% @ 0.3um Class 100

FFU Fan Filter Unit

Features
Self-contained FFU
Speed control
Lower operating budget design
High static pressure
Low operating noise
OEM / ODM service


Applications: For turbulent or laminar flow of clean room, clean booth.
Frame: Al-Zn alloy, gal steel, stainless steel, painted steel.
Fan: 315mm diameter back centrifugal aluminum alloy
( or EBM fan made in Germany available )
Air flow velocity: 0.45m/s±20% adjustable ( 3 level )
Usage environment: temp 80℃,humidify: 80%
Power system: AC or DC.
Mini-pleated HEPA Filter inside:
Efficiency: H13, H14, U15, U16 ( 99.97%-99.9999% 0.3μm -0.12μm EN:1822 )

Air flow rate (m3/h) 3000 1600 1500 600 500
Noise / Db (A) 54~60
HEPA filter efficiency ≥99.99% ~ 99.9999% ( @≥0.3μm -0.12μm, EN:1822 )
Power AC220V±10%,1φ,50HZ±2HZ ( 110V 60HZ available )
The input power (W) 360 180 180 145 75
FFU dimensions (L*W*H) 1170*1170*320 1220*610*320 1170*570*320 610*610*280 570*570*280
HEPA filter dimension 1170*1170*69 1220*610*69 1170*570*69 610*610*69 570*570*69
Filter pressure drop 90-125Pa 90-125Pa 90-125Pa 90-125Pa 90-125Pa
Coarse filters 495*495*21 495*495*21 495*495*21 395*395*21

395*395*21
