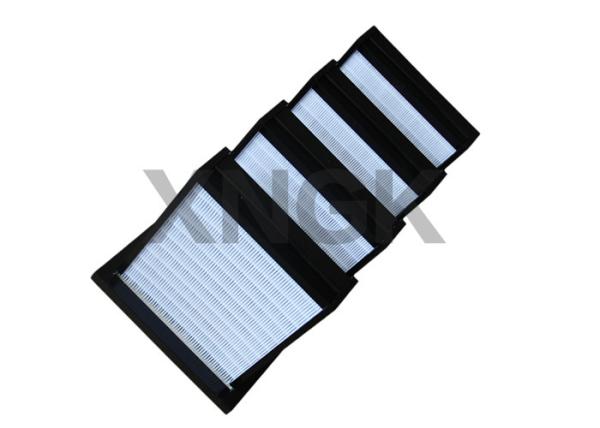

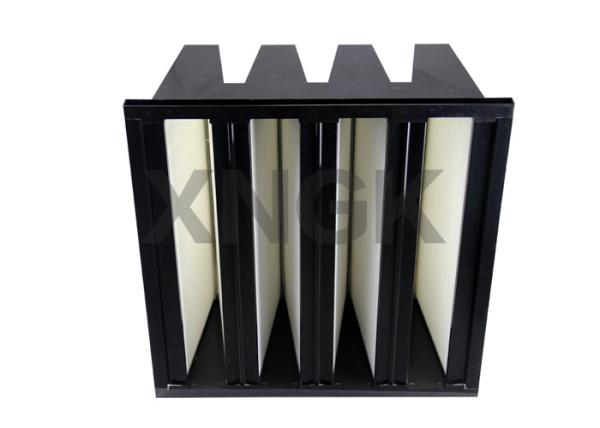

Plastic Frame Polyester 4 V Bank Filter Mini Pleated Media Secondary Stage
Plastic Frame Polyester 4 V Bank Filter Mini Pleated Media Secondary Stage
Plastic Frame Polyester 4 V Bank Filter Mini Pleated Media Secondary Stage
Plastic Frame Polyester 4 V Bank Filter Mini Pleated Media Secondary Stage
Specifications
Brand Name :
XNGK
Model Number :
XN-VB1
Certification :
CE / RoHS
Place of Origin :
China
MOQ :
1 set
Payment Terms :
T/T, Western Union
Supply Ability :
2000 sets per month
Delivery Time :
15-20 working days
Packaging Details :
plastic inside, carton box outside, wooden case if required
Product name :
V Bank Filter
Efficiency :
M5 - F9 EN:779
Material :
Polyester
Frame :
ABS Plastic or Gal
Humidity :
80 %
Gasket :
Neoprene closed
Sealant :
Polyurethane
Application :
HVAC second stage
Description

Plastic Frame Polyester 4 V Bank Filter Mini Pleated Media Secondary Stage

Applications:

Secondary air filtration for clean room air ventilation system, protect HEPA filter and enlarge their service life. Mainly for electrical industries, food factories, hospital, and other commercial buildings;

Technical parameters:

Fiber Media Dimension

Efficiency

Air flow rate / Initial pressure drop

( m3/h / Pa )

Media area

( m2)
glassfiber 592*287*292mm F7 1700 / 120 8
F8 1700 / 140
592*592*292mm F7 3400 / 120 16
F8 3400 / 140
polyester 592*287*292mm F7 1700 / 80 8
F8 1700 / 90
592*592*292mm F7 3400 / 80 16
F8 3400 / 90

Pressure drop range: ±15%

According to clients` requirements offer different specifications

Description:

The V bank filter consist of ABS plastic frame, the frame is a robust design; The special mini pleated design provide quite large air flow high efficiency while keep low pressure drop at the same time;

The robust frame can stand various air flow from low velocity to high velocity;

As a result of its good performance, it`s an ideal choice to replace pocket air filter and other rigid flange medium filter;

Features:

High air flow, low pressure drop

robust design, easily to install

cheap price

4V, 3V, 2V design

Polyester media or glass fiber media
