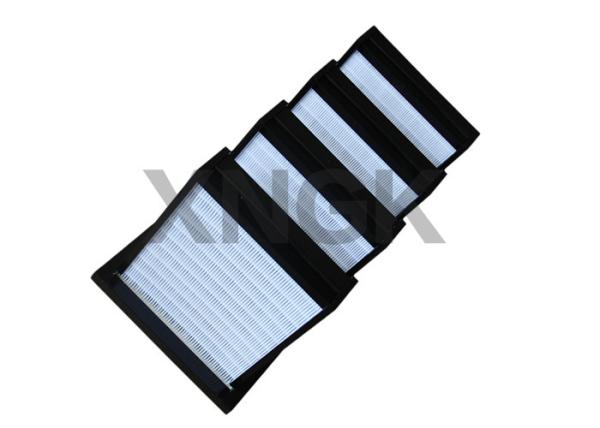

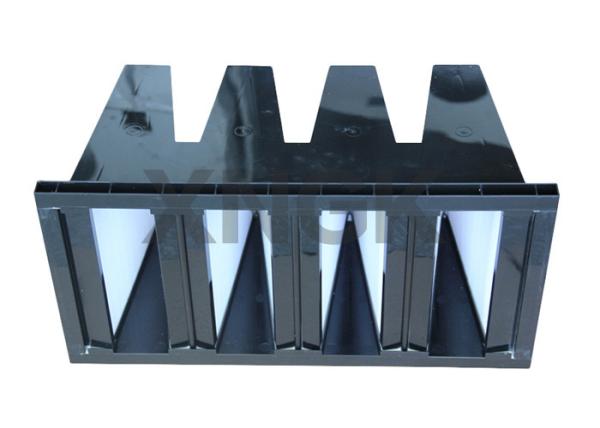

Polyester Media Rigid Pocket Filter F9 Efficiency Large Dust Holding Capability
Polyester Media Rigid Pocket Filter F9 Efficiency Large Dust Holding Capability
Polyester Media Rigid Pocket Filter F9 Efficiency Large Dust Holding Capability
Polyester Media Rigid Pocket Filter F9 Efficiency Large Dust Holding Capability
Specifications
Brand Name :
XNGK
Model Number :
XN-VB1
Certification :
CE ROHS
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
Western Union, T/T
Delivery Time :
10 - 20 working days
Packaging Details :
Plastic bag inside, carton box outside, wooden case if required
Frame :
ABS Plastic
Filter media :
Glass fiber or polyester
Filter Efficiency :
F7 - H10 EN:779
Application :
HVAC terminal filter
Flange :
25mm
Separator :
hot-melt
Gasket :
EVA
Description

Rigid Pocket Filter F7 F8 F9 EN:770 Plastic ABS Frame Polyester Media

Features for Rigid Pocket Filter

Efficiency F7, F8, F9, H10 EN:779
Frame Black ABS plastic ( customized color available )
Filter media polyester or glass fiber
Separator hot-melt
Filter pack thickness 25mm
Sealant Polyurethane

The advantageous for Rigid Pocket Filter

1. Large air flow rate;

2. Rigid V cell design, maximize air filter area in limited space;

3. Strong body, ABS plastic frame;

4. Module construction, easily to install;

5. Better replacement for multi-pocket bag filter;

6. Better performance in moist environment;

7. Large dust holding capability;

Applications

Medium filtration for HVAC system of pharmaceutical, food factories, medicine manufacturer, LED & micron electrical industries, optical facilities, laboratories buildings;

Also for commercial buildings such as schools, library;

Specification Data

Size Efficiency Air Flow Resistance
595*595*292 mm F8 3600 m³/h 125 Pa
595*287*292 mm F8 1800 m³/h 135 Pa

Other size and specification available;

Resistance range: ±15%
