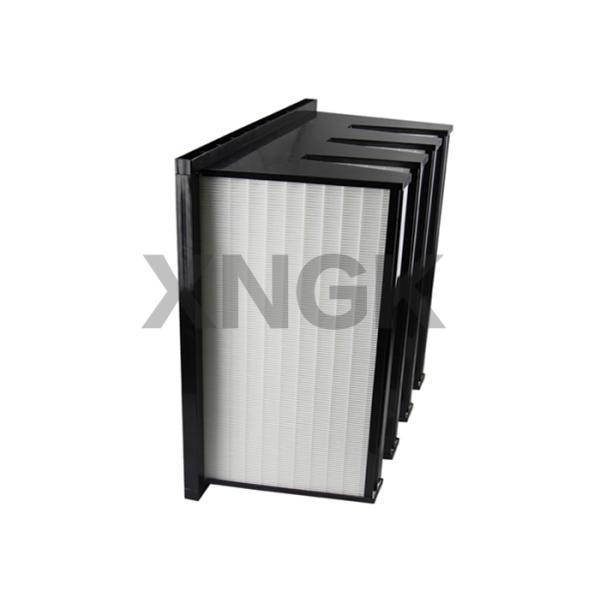

Commercial / Industrial V Bank Filter For HVAC System Dove Tailed Neoprene Gasket
Commercial / Industrial V Bank Filter For HVAC System Dove Tailed Neoprene Gasket
Commercial / Industrial V Bank Filter For HVAC System Dove Tailed Neoprene Gasket
Commercial / Industrial V Bank Filter For HVAC System Dove Tailed Neoprene Gasket
Specifications
Brand Name :
XNGK
Model Number :
XN-VB1
Certification :
CE ROHS
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
Western Union, T/T
Delivery Time :
10 - 20 working days
Packaging Details :
Plastic bag inside, carton box outside, wooden case if required
Frame :
ABS Plastic
Filter media :
Glass fiber or polyester
Filter Efficiency :
Merv 15
Application :
Industrial or Commercial HVAC system
Service life :
1 - 1.5 years
Separator :
hot-melt
Gasket :
EVA
Description

V Bank Filter for Commercial and Industrial HVAC system F7 F8 F9 EN:779

Features for V bank filters

  • 100% synthetic filter media, impervious in moist environment;
  • V shape design, maximize filter area in limited space;
  • Plastic frame, anti-corrosion in high moist, high acid or alkali situations;
  • Pleated filter media is sealed by polyurethane all around the perimeter;
  • Hot-melt separator antibacterial;
  • Low resistance, high air flow rate design;
  • Dove tailed gasket behind the flange ensure air tight;
  • Synthetic or glass fiber paper available;
  • Wide range efficiency from F7 to H10 available;

Applications

The V bank filter is an optional replacement for pocket filter, improve air filtration efficiency for medium stage, increase operating period of HEPA filters;

Flange size, 25mm thickness;

The V bank filters ABS frame is flammable and won`t produce poisonous gases;

Specification Data

Size Efficiency Air Flow Resistance
595*595*292 mm F8 3600 m³/h 125 Pa
595*287*292 mm F8 1800 m³/h 135 Pa

Other size and specification available;

Resistance range: ±15%
