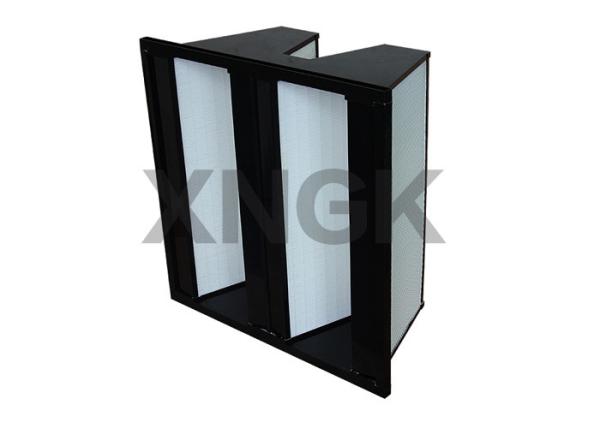

Professional V Bank Filter Polyester & Glass Fiber Material High Air Flow
Professional V Bank Filter Polyester & Glass Fiber Material High Air Flow
Professional V Bank Filter Polyester & Glass Fiber Material High Air Flow
Professional V Bank Filter Polyester & Glass Fiber Material High Air Flow
Specifications
Brand Name :
XNGK
Model Number :
XN-VB1
Certification :
CE ROHS
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
Western Union, T/T
Delivery Time :
10 - 20 working days
Packaging Details :
Plastic bag inside, carton box outside, wooden case if required
Frame :
ABS Plastic
Filter media :
Glass fiber or polyester
Filter Efficiency :
F7 - H10 EN:779
Application :
HVAC terminal filter
Feature :
High air flow
Separator :
hot-melt
Gasket :
EVA
Description

V Shape Air Filter Polyester & Glass Fiber Material High Air Flow

Advantageous for V Shape Air Filters

Longer filter life with lower resistance, lower energy consume;

Filter efficiency arrange: F5, F6, F7, F8, F9 EN:779

Good filter performance for dust, smoke, rust, bacteria, and so on;

Mini pleated design offer large filter surface area;

Rigid V Cell design, large air flow rate and dust holding ability in limited space;

Three kind of height that can be used for different usage;

Plastic frame ABS material, flammable can won`t create poisonous gases;

Flange type, flange thickness 25mm

Box construction also available ( stainless steel frame, gal steel frame or plastic frame )

Important Features for V Shape air filters;

  • Module rigid construction, easily to install.
  • Strong rigid plastic frame, filter media be protected by painted metal mesh;
  • Longer service life, large filter area;
  • Moist resistant;

There are two kinds of filter materials for V shape filters.

Glass fiber material or polyester material; here are the difference between them two;

V shape filters with glass fiber material have better performance than polyester;

Glass fiber media provide longer service life and better dust holding capacity;

Glass fibers are more fragile than polyester, metal mesh grille to be added two side of the frame;

Polyester media offer lower initial resistance than glass fiber;

Polyester material cheaper than glass fiber;

The applications:

  • Laboratories;
  • Hospitals;
  • Food processing;
  • LED industries;
  • Nuclear Industries ;
  • Gas turbine;
  • Micron electricity;

Specification Data

Size Efficiency Air Flow Resistance
595*595*292 mm F8 3600 m³/h 125 Pa
595*287*292 mm F8 1800 m³/h 135 Pa

Other size and specification available;

Resistance range: ±15%
