Medium Efficiency V Cell Filter Glass Fiber Media , Fpr 7 Air Filter 595 * 595 * 292 Mm
Medium Efficiency V Cell Filter Glass Fiber Media , Fpr 7 Air Filter 595 * 595 * 292 Mm
Medium Efficiency V Cell Filter Glass Fiber Media , Fpr 7 Air Filter 595 * 595 * 292 Mm
Medium Efficiency V Cell Filter Glass Fiber Media , Fpr 7 Air Filter 595 * 595 * 292 Mm
Specifications
Brand Name :
XNGK
Model Number :
XN-VB1
Certification :
CE ROHS
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
Western Union, T/T
Delivery Time :
10 - 20 working days
Packaging Details :
Plastic bag inside, carton box outside, wooden case if required
Frame :
ABS Plastic
Filter media :
Glass fiber or polyester
Filter Efficiency :
Merv 14
Application :
HVAC terminal filter
Flange :
25mm
Separator :
hot-melt
Gasket :
EVA
Description

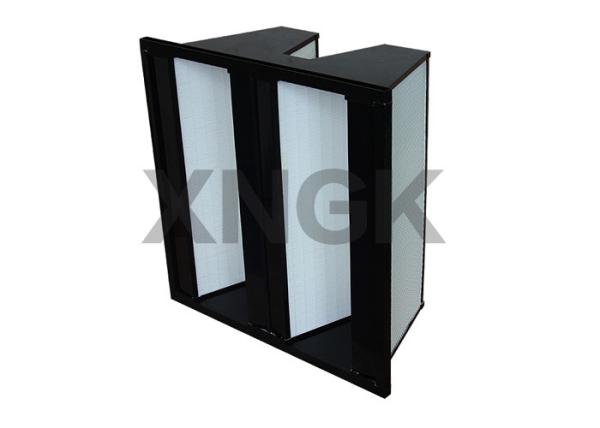

V Cell Air Filter Medium Efficiency Plastic Frame Glass Fiber Media

The advantageous for V Cell Air filter

V cell air filter is the special design for HVAC system, mini pleated filter media provide large air filter area, there are 4V design, so it`s 8 piece filter pack; filter pack thickness 25mm, 27 folds per 100mm;

this is a standard design for mini pleated air filter;

V cell air filter made of glass fiber or polyester filter material, it`s a very good replacement for pocket filter,

pocket filter will be stick each other in moist environment and the filter performance not as good as v cell filter;

Dove tailed gasket be stick on the back of the flange, can make sure no air leakage for installation;

Gasket material is neoprene that has a very good elasticity and anti corrosion in hard environment;

Gasket thickness 5mm, header thickness 25mm;

Plastic frame offer robust construction, double side metal mesh protect air filter material from damage;

Plastic frame color: black, customized color available;

Details for v cell filter

Filter material fine glass fiber paper or polyester
Frame ABS plastic
sealant polyurethane
gasket EVA Neoprene
Separator hot-melt
Efficiency F7 - F9 EN:779

Applications

Medium filtration for HVAC system;

Good replacement for pocket;

For all commercial & industrial buildings` air conditioning systems;

Specification Data

Size Efficiency Air Flow Resistance
595*595*292 mm F8 3600 m³/h 125 Pa
595*287*292 mm F8 1800 m³/h 135 Pa

Other size and specification available;

Resistance range: ±15%
