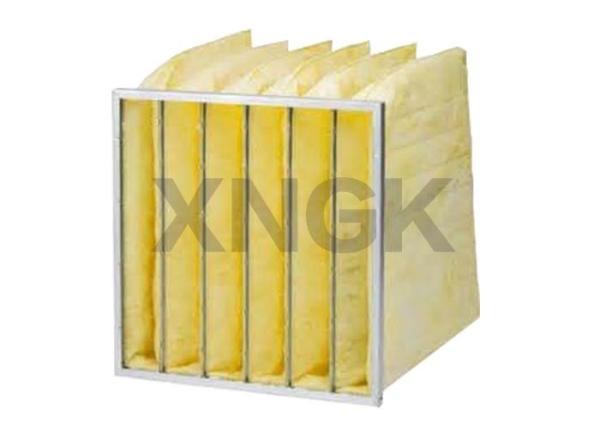

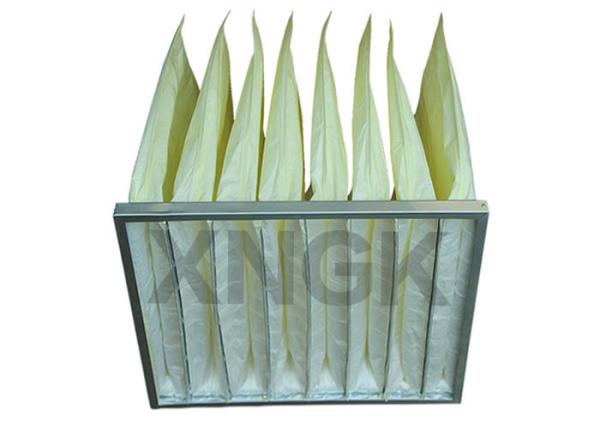

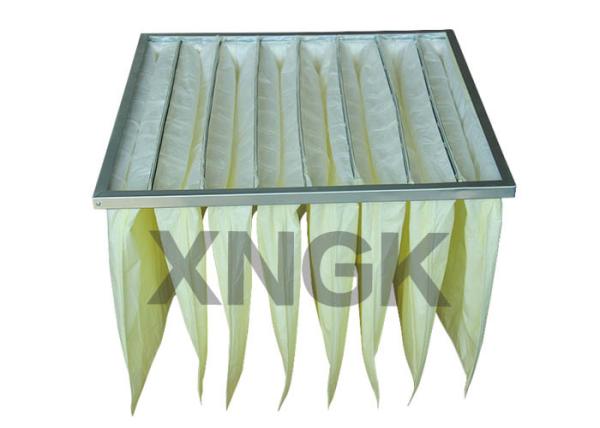

Synthetic Media Pocket Air Filter V Shape Galvanized Steel Frame
Synthetic Media Pocket Air Filter V Shape Galvanized Steel Frame
Synthetic Media Pocket Air Filter V Shape Galvanized Steel Frame
Synthetic Media Pocket Air Filter V Shape Galvanized Steel Frame
Synthetic Media Pocket Air Filter V Shape Galvanized Steel Frame
Synthetic Media Pocket Air Filter V Shape Galvanized Steel Frame
Synthetic Media Pocket Air Filter V Shape Galvanized Steel Frame
Synthetic Media Pocket Air Filter V Shape Galvanized Steel Frame
Specifications
Brand Name :
XNGK
Model Number :
XN-M1
Certification :
CE/ROHS
Place of Origin :
China
MOQ :
1pcs
Price :
negotiation
Payment Terms :
T/T or western Union or LC
Supply Ability :
3,000pcs per month
Delivery Time :
10-20 working days according to the QTY
Packaging Details :
Plastic bag inside, carton box outside, wooden case if required
Product Name :
Synthetic pocket filter
Application :
Air ventilation system
Filter efficiency :
M5-F9 EN:779
Frame :
Aluminum Alloy or gal steel
Size :
Customized
Feature :
High air volume
Sealant :
Sealed by ultrasonic
Gasket :
Sponge if required
Final pressure drop :
450Pa
Environment :
80℃
Description

Synthetic Media Galvanized Steel Frame Pocket Air Filter

the synthetic media galvanized steel frame pocket filter is an ideal filter to replace V bank medium filter. cause it has large dust holding ability and stable performance.

By adding pocket filters can enlarge the service life of HEPA filters. It`s necessary to replace pocket filters in time.

Features:

1. High loft, layered synthetic material

2. Large air flow rate, low pressure drop

3. V shape pocket design

4. Good performance in turbulent air flow

5. Reinforced frame prevent air leakage

Technical parameters:

Dimension Efficiency

Air flow rate / Initial pressure drop

( m3/h / Pa )

Air flow rate / Initial pressure drop

( m3/h / Pa )

 Pockets

Media area

( m2)
592*592*600 F5 2500 / 35 3800 / 50 8 6.5
F6 2500 / 45 3800 / 65
F7 2500 / 80 3800 / 115
F8 2500 / 90 3800 / 135
592*592*600 F5 2500 / 40 3800 / 55 6 5.0
F6 2500 / 55 3800 / 80
F7 2500 / 85 3800 / 125
F8 2500 / 95 3800 / 140
490*592*600 F5 2200 / 40 3100 / 55 5 4.5
F6 2200 / 55 3100 / 80
F7 2200 / 85 3100 / 125
F8 2200 / 95 3100 / 140
287*592*600 F5 1200 / 40 1800 / 55 3 2.5
F6 1200 / 50 1800 / 80
F7 1200 / 85 1800 / 125
F8 1200 / 95 1800 / 140
592*592 *560 F5 2500 / 40 3800 / 55 8 6.5
F6 2500 / 50 3800 / 70
F7 2500 / 85 3800 / 125
F8 2500 / 100 3800 / 145
490*592 *560 F5 2100 / 40 3100 / 55 6 4.5
F6 2100 / 50 3100 / 70
F7 2100 / 85 3100 / 125
F8 2100 / 100 3100 / 145
287*592*560 F5 1200 / 45 1800 / 55 3 2.5
F6 1200 / 60 1800 / 85
F7 1200 / 90 1800 / 135
F8 1200 / 100 1800 / 150

Pressure drop range: ±15%

According to clients` requirements offer different specifications

Applications:

second filter for clean room air ventilation system,

pharmaceuticals, automotive, food processing, commerce, office building, hotel HVAC system.

Description:

Pocket filters are not expansive, and they offer quite good performances such as high air flow rate, large dust holding capacity, it`s very easily to install. For some particular occasion such as strong humidity and strong acid and alkali, glass fiber media is recommend.

The frame is galvanized steel or aluminum alloy, in fact, galvanized steel is a very good material, and it`s cheaper than aluminum alloy, if you order large QTY, galvanized steel frame is a good choice.
