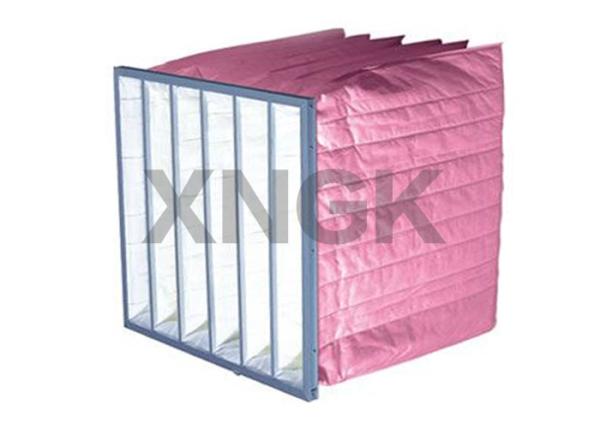

35mm Commercial Bag Air Filters Frame Thickness Multi Layered Media
35mm Commercial Bag Air Filters Frame Thickness Multi Layered Media
35mm Commercial Bag Air Filters Frame Thickness Multi Layered Media
35mm Commercial Bag Air Filters Frame Thickness Multi Layered Media
Specifications
Brand Name :
XNGK
Model Number :
XN-M4
Certification :
CE/ROHS
Place of Origin :
China
MOQ :
1pcs
Price :
negotiation
Payment Terms :
T/T or western Union or LC
Supply Ability :
3,000pcs per month
Delivery Time :
10-20 working days according to the QTY
Packaging Details :
Plastic bag inside, carton box outside, wooden case if required
Product Name :
Commercial pocket filter
Application :
Second Filter
Filter efficiency :
M5-F9 EN:779
Frame :
AL alloy
Size :
Standard or Customized
Feature :
Good performance
Sealant :
Sealed by ultrasonic
Gasket :
Neoprene if required
Final pressure drop :
450Pa
Environment :
80℃
Description

Commercial Ventilation Pocket Air Filter F5 F6 F7 Efficiency

Technical parameters:

Dimension Efficiency

Air flow rate / Initial pressure drop

( m3/h / Pa )

Air flow rate / Initial pressure drop

( m3/h / Pa )

 Pockets

Media area

( m2)
592*592*600 F5 2500 / 35 3800 / 50 8 6.5
F6 2500 / 45 3800 / 65
F7 2500 / 80 3800 / 115
F8 2500 / 90 3800 / 135

Pressure drop range: ±15%

According to clients` requirements offer different specifications

Description:

1. pocket qantity: 4 - 10 pockets;

2. filter media: multi layered;

3. frame thickness: 21mm, customized size available;

4. Color: white, green, pink, yellow, and so on;

5. Filter media: sealed by ultrasonic;

Applications:

Ventilation system in electrical factories, food industries, LED, school, airport, hospital and other commercial or industrial situations;

Features:

1. Better price than Compact V bank filter;

2. Customized size;

3. Easily to replace;

4. Stable performance;

5. Relatively small size;

6. Efficiency range: M5, F6, F7, F8, F9 EN:779
