G4 Efficiency Multi Pocket Air Filter For HVAC System Arrestance 90 - 95%
G4 Efficiency Multi Pocket Air Filter For HVAC System Arrestance 90 - 95%
G4 Efficiency Multi Pocket Air Filter For HVAC System Arrestance 90 - 95%
G4 Efficiency Multi Pocket Air Filter For HVAC System Arrestance 90 - 95%
Specifications
Brand Name :
XNGK
Model Number :
XN-M6
Certification :
CE / ROHS
Place of Origin :
China
MOQ :
1pcs
Price :
negotiation
Payment Terms :
T/T or western Union or LC
Supply Ability :
3,000pcs per month
Delivery Time :
10-20 working days according to the QTY
Packaging Details :
Plastic bag inside, carton box outside, wooden case if required
Product Name :
G4 Primary Pocket Air Filter
Application :
Pre Bag Air Filter
Filter efficiency :
Arrestance 95%
Frame :
AL alloy
Size :
Standard or Customized
Feature :
Good performance
Sealant :
Sealed by ultrasonic
Gasket :
Neoprene if required
Final pressure drop :
450Pa
Environment :
80℃
Description

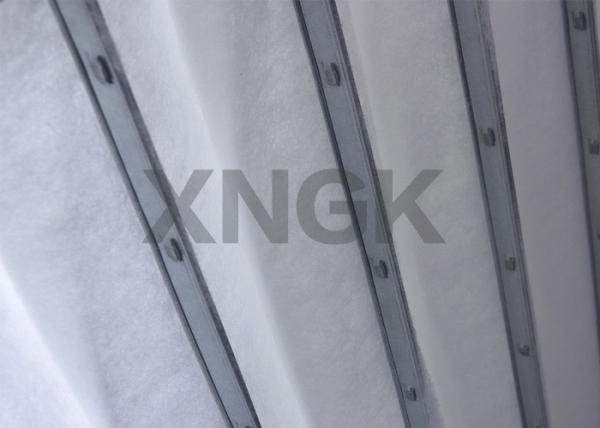

Multi Pocket Pre Bag Air Filter G4 Efficiency Arrestance 90-95%

Applications:

1. HVAC system pre air filtration;

2. Hospital,

3. School,

4. Laboratories;

5. Pharmaceutical factories and so on;

Description:

There are three design for pre air filter, it`s flat, pleated, and multi-bag;

Multi bag pre air filter has many advantageous than flat and pleated;

Firstly, the multi bag provide large air filter area, reducing the pressure drop at the same time increase dust holding capacity;

Much longer service life, because the air filter area is bigger, so the filter can stand longer.

Technical parameters:

Dimension Efficiency

Air flow rate / Initial pressure drop

( m3/h / Pa )

 Pockets

Media area

( m2)
295*595*500mm G4 1800 / 50 3 2.1
395*595*500mm G4 2400 / 50 4 2.9
495*595*500mm G4 3000 / 50 5 3.6
595*595*500mm G4 3600 / 50 6 4.8

Pressure drop range: ±15%

According to clients` requirements offer different specifications

Features:

The pre bag air filters have better performance than pleated or flat panel air filter;

Higher air flow rate, can stand more faster air velocity in the ventilation tunnel.
