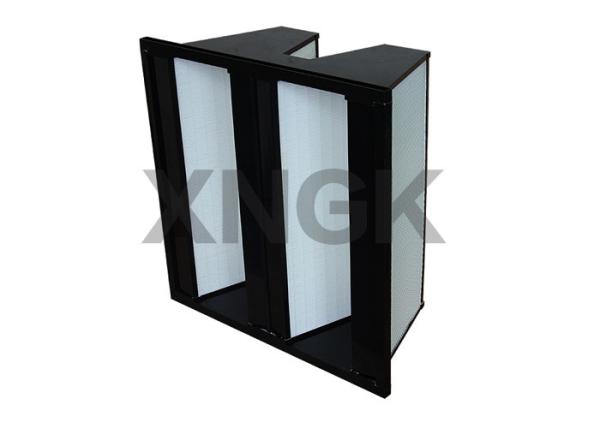

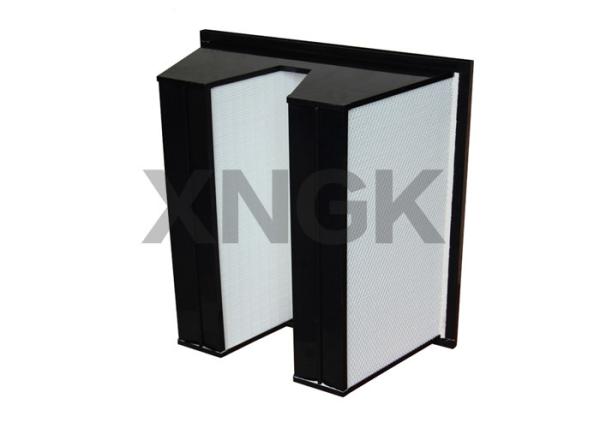

24 * 24 * 12 Inch V Bank Filter
24 * 24 * 12 Inch V Bank Filter
24 * 24 * 12 Inch V Bank Filter
24 * 24 * 12 Inch V Bank Filter
Specifications
Brand Name :
XNGK
Model Number :
XN-VB1
Certification :
CE ROHS
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
Western Union, T/T
Delivery Time :
10 - 20 working days
Packaging Details :
Plastic bag inside, carton box outside, wooden case if required
Frame :
ABS Plastic
Filter media :
Glass fiber or polyester
Filter Efficiency :
F7 - H10 EN:779
Application :
HVAC terminal filter
Flange :
25mm
Separator :
hot-melt
Gasket :
EVA
Description

V Shape Filter F8 EN:779 for Electronics Industries Cleanroom

Specification:

  • Frame: ABS plastic, black color ( customized color available );
  • Size: standard size, 24*24*12 inch or 12*24*12 inch, 592*592*292mm, 287*592*292mm;

2V, 3V, 4V design;

  • Filter media: glass fiber or polyester;
  • Sealant: polyurethane;
  • Gasket: neoprene;
  • Faceguard: painted metal mesh;

The different of polyester media with glass fiber media

  • Polyester is stronger than glass fiber;
  • Polyester has less initial resistance;
  • Polyester get cheaper price;
  • Glass fiber has better performance of dust holding;
  • Glass fiber can be served for a longer period.

The V shape filter in an ideal filtration item for electronics industries HVAC system, especially the air is moist so the pocket filters cannot be applied.

V shape is the filtration before HEPA or ULPA filter to enlarge the service life of HEPA or ULPA;
