Stainless Steel H14 HEPA Filter Module Customized Size 500 - 4000CMH Air Flow Rate
Stainless Steel H14 HEPA Filter Module Customized Size 500 - 4000CMH Air Flow Rate
Stainless Steel H14 HEPA Filter Module Customized Size 500 - 4000CMH Air Flow Rate
Stainless Steel H14 HEPA Filter Module Customized Size 500 - 4000CMH Air Flow Rate
Specifications
Brand Name :
XNGK
Model Number :
XN-AD
Certification :
ISO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
1000 Sets per month
Delivery Time :
10-15 working days
Packaging Details :
carton box , wooden case
Frame :
Stainless steel, painted steel, galvanized steel
Efficiency :
H13 or H14
Size :
Customized
Filter material :
Glass fiber HV
Seal :
Gel Seal or Neoprene
Air flow rate :
500-4000CMH customized
Description

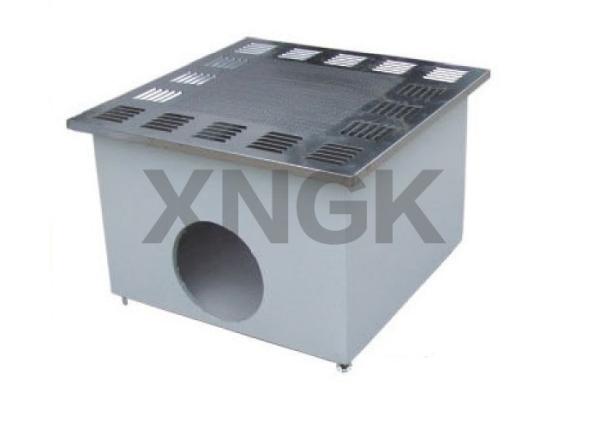

For Clean Room Ducted Ceiling Modules Customized Size Stainless Steel

Ducted ceiling modules are mainly used in clean room class 100 to class 300,000; ducted ceiling modules are quite easily to install and replace the filters. The modules be installed on the T-bar ceiling grid and connected with the fan coil pipe. HEPA filters efficiency class 100 be added inside the housing, it`s gel seal or neoprene gasket, glass fiber material 99.99% to 99.999% efficiency available;

HEPA filters can be replaced under the modules, there are four holders in the housing to hold the HEPA filter, twist it them take out the old HEPA filter and replace new HEPA filters instead. HEPA filter gel seal gasket can make sure there is no air leakage between module housing with HEPA.

Specification:

Frame: stainless steel or painted steel;

HEPA: H13, H14, U15 HV glass fiber material;

Test: PAO DOP test inside;

Perforated panel air outlet;

Customized size;
