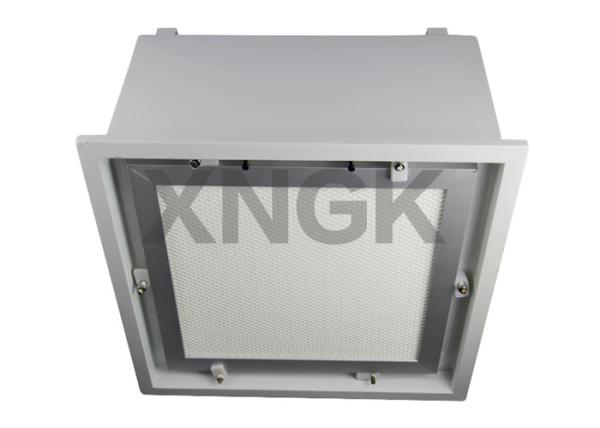

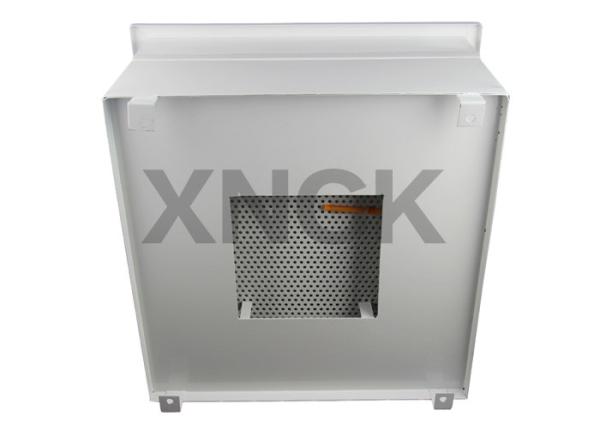

Roomside Adjustable Hepa Filter Ceiling Module Gel Seal / Neoprene Seal
Roomside Adjustable Hepa Filter Ceiling Module Gel Seal / Neoprene Seal
Roomside Adjustable Hepa Filter Ceiling Module Gel Seal / Neoprene Seal
Roomside Adjustable Hepa Filter Ceiling Module Gel Seal / Neoprene Seal
Specifications
Brand Name :
XNGK
Model Number :
XN-AD
Certification :
ISO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
1000 Sets per month
Delivery Time :
10-15 working days
Packaging Details :
carton box , wooden case
Frame :
Stainless steel, painted steel, galvanized steel
Efficiency :
H13 or H14
Size :
Customized
Filter material :
Glass fiber HV
Seal :
Gel Seal or Neoprene
Air flow rate :
500-4000CMH customized
Description

Roomside Adjustable Ceiling Module HEPA for Cleanroom Class 100

Specifications:
1.Cold roll steel coated frame, stainless steel 304, 201 and so on.
2.Different part of the frame are connected by welding, welded part are sealed by sealant glue to make sure no leakage.
3.HEPA filter, HV company glass fiber, H13, H14, U15 Efficiency NE:1822. MPPS tested before leaving the factory.
4.Gasket: fluid silicone seal on the header of the filter. Or neoprene seal.
5.Faceguard for the HEPA: painted metal mesh;
6.Diffuser: perforated panel;
7.Air inlet size: 250, 300, 350mm and so on.
8.Air inlet direction: top or side.
9.Air volume control: butterfly damper that can be adjusted by the roomside.
10.Installation: be installed on the ceiling T-Bar grid.
11.Test: PAO DOP test.
12.Options: knife edge HEPA, stainless steel frame, motorized available.

Introduction:
The roomside adjustable ceiling module HEPA diffuser is an ideal equipment for laboratory, operating room, and other cleanroom that require cleanliness class 100 to 300,000; the airflow can be controlled by butterfly damper from the room side. This design make it very easily to change airflow direction, flow rate even cleanliness level of the cleanroom.
