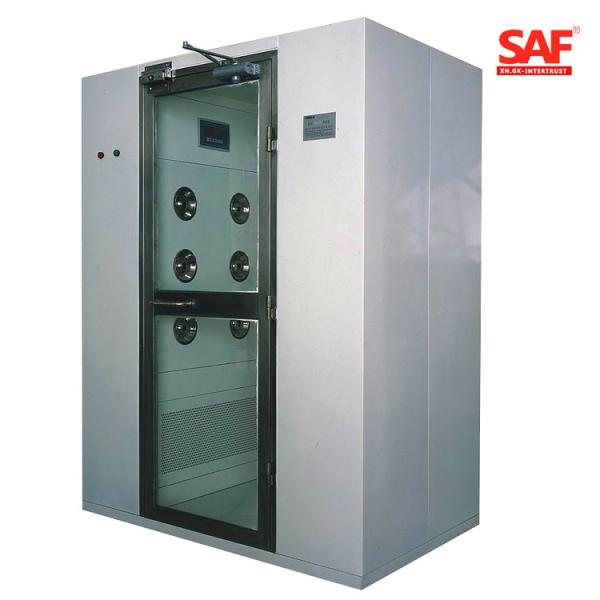

Electronical Clean Room Air Shower Dust Free Stainless Steel 304 Material
Electronical Clean Room Air Shower Dust Free Stainless Steel 304 Material
Electronical Clean Room Air Shower Dust Free Stainless Steel 304 Material
Electronical Clean Room Air Shower Dust Free Stainless Steel 304 Material
Specifications
Brand Name :
SAF
Model Number :
XN-A
Certification :
CE/ROHS/ISO
Place of Origin :
Shenzhen China
Voltage: :
380V/50HZ/3PH
Power(W): :
1.1KW
Dimension(L*W*H): :
1310*1000*2100
Weight: 350kgs :
350kgs
Certification: :
CE ISO9001:2008
Warranty: :
12 Months
Application: :
Clean Room Entrace
Material: :
Stainless Steel 304
Weight: :
550Kg
Description

Clean room Electronical Interlock Air Lock Air Shower Dust Free Cleanroom Use

1, Air Shower is used to blow away dust on clothing, equipments, materials and tools before workers or objects enter the Clean Room; meanwhile, its Air Lock function may effectively control personnel passing in and out, as well as act as various levels of buffer room for clean room to prevent cross pollution.

SAF is leader in air shower for demanding application in the micro-electronics, semiconductors, pharmaceutical, spray-painting, lab, animal research and food market.

2, Characteristic:

1) Entire stainless steel baseboard

2) HEPA filter with efficiency 99.99% @ 0.3um

3) Toughened glass for the door's window

4) Fully-automatic infrared induction blowers and showers

5) 'Zhengtai' middle relay, time relay (soft key button type)

6) LED display

7) Adjustable range: 0 - 99s

8) Doors will be closed automatically when activated

9) Ultra quiet and low-pressure for automatic door closer

10) Stainless steel nozzle

11) 'Nantai' double whorl shell outside motor

12) The air velocity is greater than 25m/s

13) Low noise level

14) Arc corner, 1,000-rank static state, patented product

3, Technology parameter:

KLC-AS-1400 Air Shower
Model KLC-AS-1450/1 KLC-AS-1450/2 KLC-AS-1450/3

External dimension

(W×D×H)(mm)

 1450×1000×2050 1450×2000×2050 1450×3000×2050

Internal work zone

(W×D×H)(mm)

 1040×930×1910 1040×1930×1910 1040×2930×1910
Persons per cycle 1-2 persons 2-3persons 3-4persons
The power of fan

380V/50Hz/1100W

380V/50Hz/1100W

380V/50Hz/1100W

Air velocity of fan

(m3/h)

 1300 1300 1300
Fan run(r/m) 2800 2800 2800
Nozzle 12pcs 24pcs 36pcs
Wind speed (m/s) 25-30 25-30 25-30
Noise level (dB) <62 <62 <62

HEPA

filter

 Size (mm) 484×484×69 484×484×69 484×484×69
Efficiency 99.99% @ 0.3um 99.99% @ 0.3um 99.99% @ 0.3um

Air velocity

(m3/h)

 1000 1000 1000

Initial resistance

(Pa)

 220 220 220
Pre-filter Size (mm) 445×380×17 445×380×17 445×380×17
Efficiency 75%@5um (G3) 75%@5um (G3) 75%@5um (G3)
Initial resistance <30 <30 <30
parameter Power Supply 380V/50Hz 380V/50Hz 380V/50Hz
Net Power (kw) 1.5 2.5 3.5

Customized design is available.
