Replaceable HEPA Filter Ceiling Module , Fan Powered Hepa Filter Diffuser SAF Series
Replaceable HEPA Filter Ceiling Module , Fan Powered Hepa Filter Diffuser SAF Series
Replaceable HEPA Filter Ceiling Module , Fan Powered Hepa Filter Diffuser SAF Series
Replaceable HEPA Filter Ceiling Module , Fan Powered Hepa Filter Diffuser SAF Series
Replaceable HEPA Filter Ceiling Module , Fan Powered Hepa Filter Diffuser SAF Series
Replaceable HEPA Filter Ceiling Module , Fan Powered Hepa Filter Diffuser SAF Series
Replaceable HEPA Filter Ceiling Module , Fan Powered Hepa Filter Diffuser SAF Series
Replaceable HEPA Filter Ceiling Module , Fan Powered Hepa Filter Diffuser SAF Series
Replaceable HEPA Filter Ceiling Module , Fan Powered Hepa Filter Diffuser SAF Series
Replaceable HEPA Filter Ceiling Module , Fan Powered Hepa Filter Diffuser SAF Series
Replaceable HEPA Filter Ceiling Module , Fan Powered Hepa Filter Diffuser SAF Series
Replaceable HEPA Filter Ceiling Module , Fan Powered Hepa Filter Diffuser SAF Series
Specifications
Brand Name :
SAF
Model Number :
XN-AD
Certification :
ISO/CE
Place of Origin :
China
MOQ :
5 set
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
1000 Sets per month
Delivery Time :
10-15 working days
Packaging Details :
carton box , wooden case
Frame :
Stainless steel, painted steel, galvanized steel
Efficiency :
H13 or H14
Size :
Customized
Filter material :
Glass fiber HV
Seal :
Hot-melt or Neoprene
Air flow rate :
500-4000CMH customized
Description

Replaceable HEPA BOX and HEPA supply outlet diffusion perforation panel

Description of HEPA box:

SAF series of high efficiency air outlet using the latest technology to make the air distribution more reasonable, simple and reliable box structure, the shell made of high quality steel, the surface paint or spray. Air outlet have a good air organization, to achieve the purpose of reducing the dead zone clean area to ensure the purification effect is to transform and new clean rooms at all levels as a terminal efficient filtration device, was installed in the clean room ceiling and so on.

Features:

1, high-efficiency air inlet into the wind side into the wind and wind into the top, there is a high-efficiency filter and no separator two.

2, Sometimes the clean room due to the height of the civil construction or must be compact design, the optional high-efficiency filter without separator air outlet.

3, can be installed according to user requirements control valve and insulation layer.

Technical Parameters:

Frame size(mm) filter(mm) diffuser plate size(mm) Ductwork size(mm) Efficiency Rate flow(m³/h)
370*370*370 320*320*69 420*420*10 250*250(square) 250(round) H14(99.995%) 500
534*534*370 484*484*69 584*584*10 250*250(square) 250(round) H14(99.995%) 1000
680*680*370 630*630*69 730*730*10 250*250(square) 250(round) H14(99.995%) 1500
965*660*370 915*610*69 1015*710*10 300*300(square) 300(round) H14(99.995%) 2000

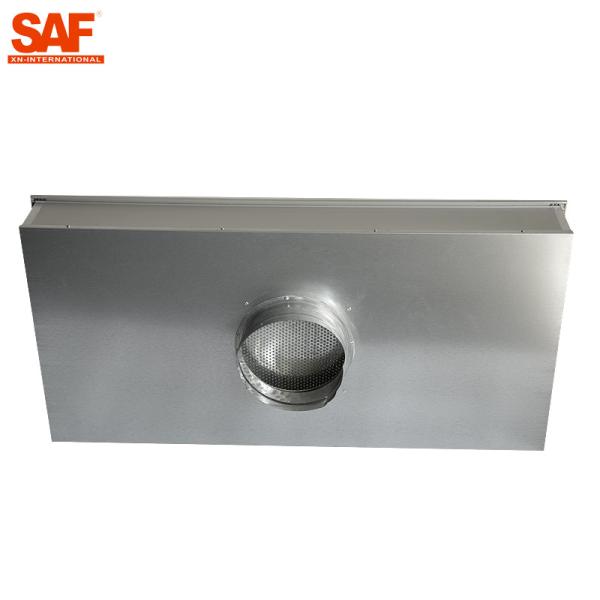

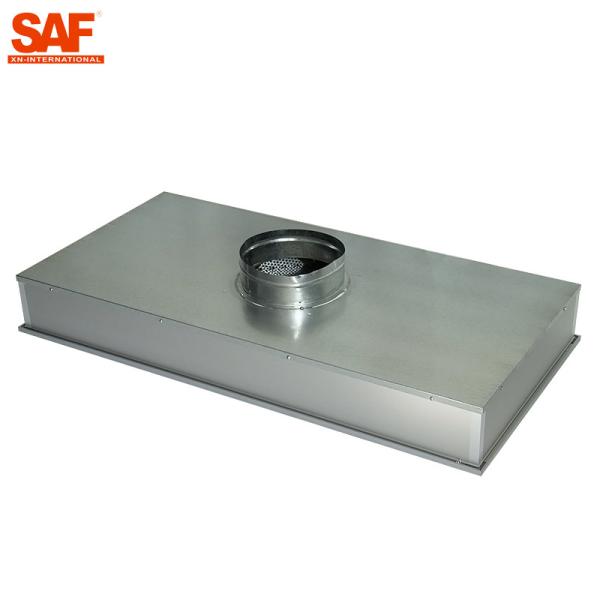

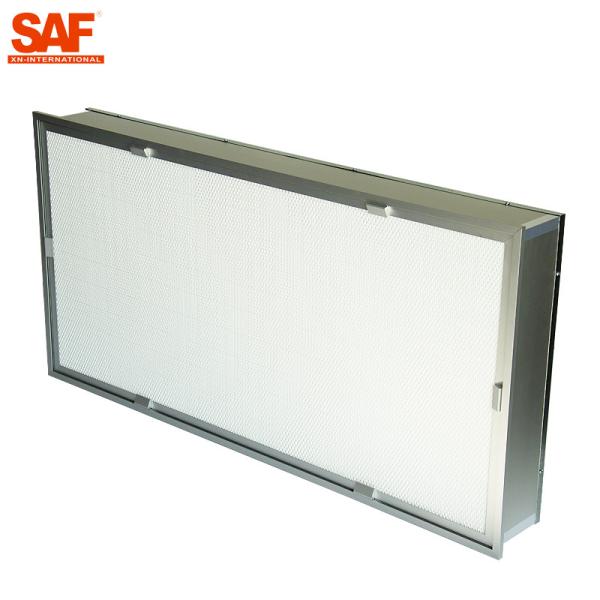

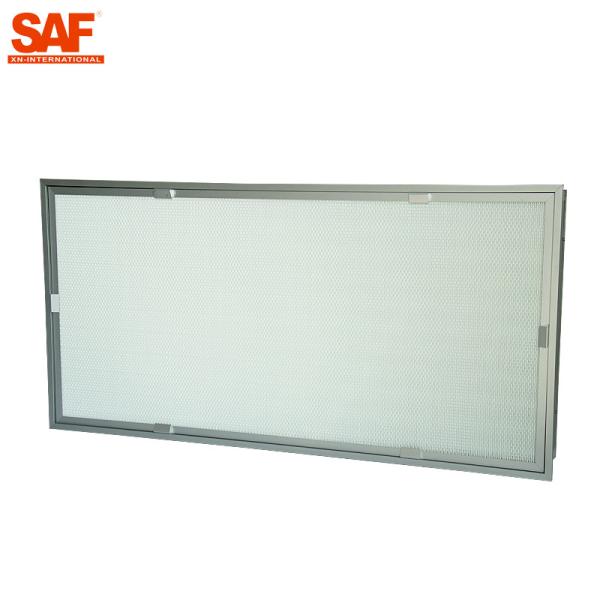

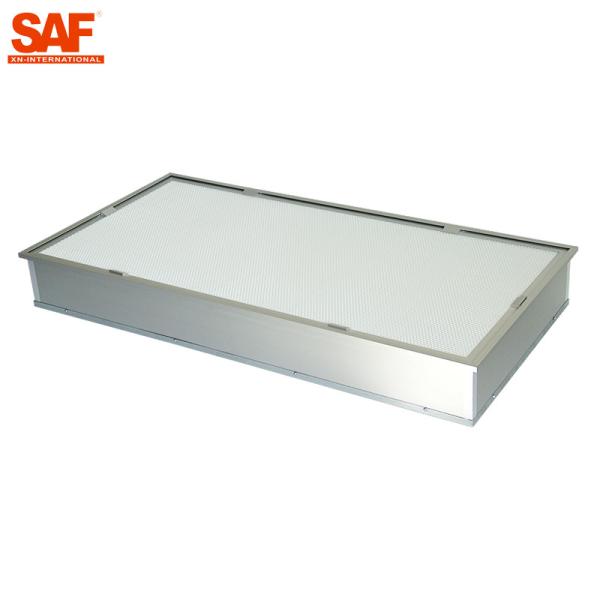

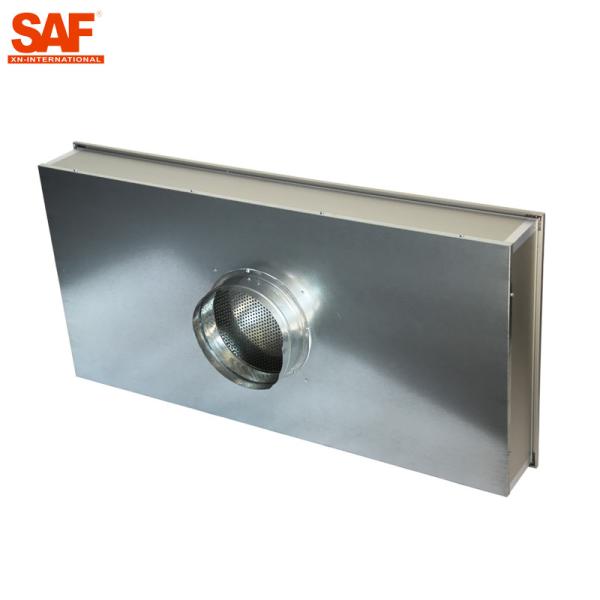

Detail picture

Replaceable HEPA Filter Ceiling Module , Fan Powered Hepa Filter Diffuser SAF SeriesReplaceable HEPA Filter Ceiling Module , Fan Powered Hepa Filter Diffuser SAF SeriesReplaceable HEPA Filter Ceiling Module , Fan Powered Hepa Filter Diffuser SAF Series
