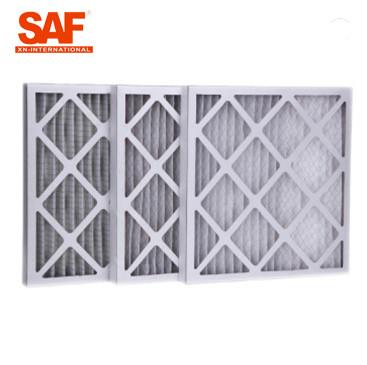

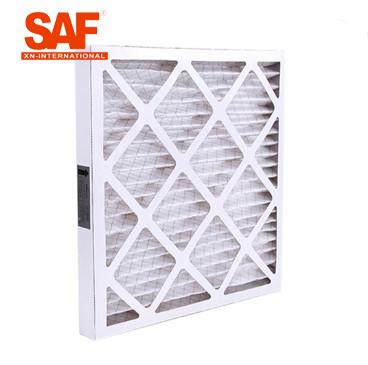

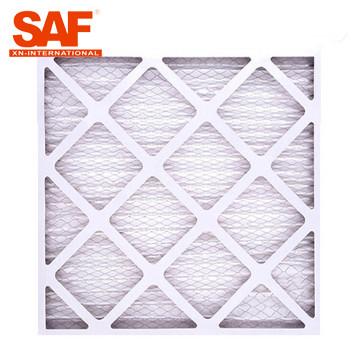

Primary MERV13 Pre Filter Air Filter 40 , G4 Panel Cardboard Frame Furnace Filter
Primary MERV13 Pre Filter Air Filter 40 , G4 Panel Cardboard Frame Furnace Filter
Primary MERV13 Pre Filter Air Filter 40 , G4 Panel Cardboard Frame Furnace Filter
Primary MERV13 Pre Filter Air Filter 40 , G4 Panel Cardboard Frame Furnace Filter
Primary MERV13 Pre Filter Air Filter 40 , G4 Panel Cardboard Frame Furnace Filter
Primary MERV13 Pre Filter Air Filter 40 , G4 Panel Cardboard Frame Furnace Filter
Primary MERV13 Pre Filter Air Filter 40 , G4 Panel Cardboard Frame Furnace Filter
Primary MERV13 Pre Filter Air Filter 40 , G4 Panel Cardboard Frame Furnace Filter
Specifications
Brand Name :
SAF
Model Number :
SAF-CG
Certification :
CE,ROHS,ISO
Place of Origin :
Shenzhen,China
MOQ :
10pcs
Price :
$3-$10
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
500pcs/day
Delivery Time :
5-10days after receiving the deposit
Packaging Details :
carton
MOQ :
10PCS
Packaging Detail :
Carton
Application :
Air Conditioning System
Dimension :
Customized or standard size
Grade :
G1 G2 G3 G4
Description

HVAC system Cardboard frame primary efficiency air filter for industrial air purifier

Product features:

1 The filtration material is made from non-woven fabrics ,and the synthetic fiber, it has the advantages of the large dust holding capacity ,the low pressure loss in the initial period and large air flow

2.The composite metal net can be designed into the foldaway filter, which can provide the largest filtration area for the current air,and as 5 times' filtration area as the common pand mesh. Paper frame and metal frame are available , which is convenient for replace; less purchasing expense

3. The moisture-proof 100%

4.Temperature resistance 80°C

Production Advantages

Excellent prefilter for higher efficiency filters


1. Excellent primary filter to prevent dust build-up on heating


2. Premium performance and construction


3 For simple storage, installation, handling and removal


4.Each filter includes a label noting tested efficiency,pressure drop,rated airflow

Main application:

1.Pre-filtration of HVAC system

2.Pre-filtration of air compressor

3.Fresh air return system

4.Pre-filtration of local device

Technical Parameters:

Model Dimension(mm) Rated air flow (m³/h) Resistance(Pa) Efficiency (Arrestance)
SAF-CG-8 295*295*46 800 10-25 50%
SAF-CG-13 295*495*46 1300 10-25 50%
SAF-CG-16 295*595*46 1600 10-25 50%
SAF-CG-22 395*595*46 2000 10-25 50%
SAF-CG-27 495*595*46 2700 10-25 50%
SAF-CG-32 595*595*46 3200 10-25 50%

The size can be customized according to customers requirement

Primary MERV13 Pre Filter Air Filter 40 , G4 Panel Cardboard Frame Furnace Filter

Primary MERV13 Pre Filter Air Filter 40 , G4 Panel Cardboard Frame Furnace Filter

If you want to know more about our products,feel free to contact me!
