Non - Woven Pre Air Filter Aluminum Frame Pleated Panel For Air Conditioning
Non - Woven Pre Air Filter Aluminum Frame Pleated Panel For Air Conditioning
Non - Woven Pre Air Filter Aluminum Frame Pleated Panel For Air Conditioning
Non - Woven Pre Air Filter Aluminum Frame Pleated Panel For Air Conditioning
Non - Woven Pre Air Filter Aluminum Frame Pleated Panel For Air Conditioning
Non - Woven Pre Air Filter Aluminum Frame Pleated Panel For Air Conditioning
Non - Woven Pre Air Filter Aluminum Frame Pleated Panel For Air Conditioning
Non - Woven Pre Air Filter Aluminum Frame Pleated Panel For Air Conditioning
Non - Woven Pre Air Filter Aluminum Frame Pleated Panel For Air Conditioning
Non - Woven Pre Air Filter Aluminum Frame Pleated Panel For Air Conditioning
Specifications
Brand Name :
SAF
Model Number :
SAF-CG
Certification :
CE,ROHS,ISO
Place of Origin :
Shenzhen,China
MOQ :
10pcs
Price :
$10-$35
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
500pcs/day
Delivery Time :
5-10days after receiving the deposit
Packaging Details :
carton
MOQ :
10PCS
Packaging Detail :
Carton
Application :
Air Conditioning System
Dimension :
Customized or standard size
Grade :
G1 G2 G3 G4
Description

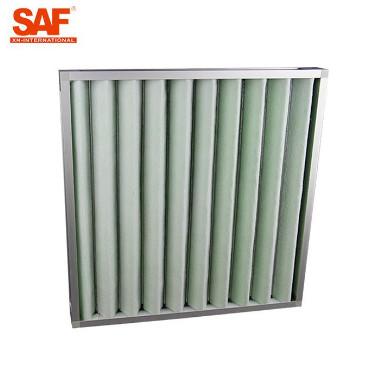

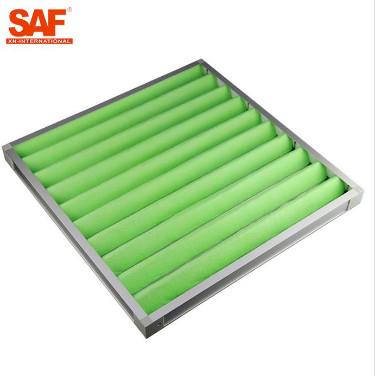

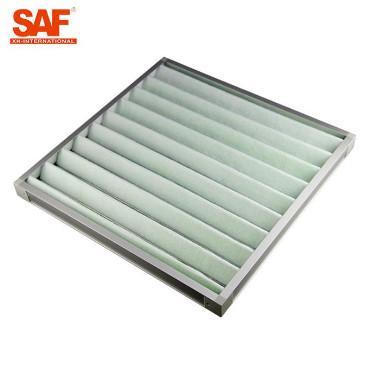

Pre-filter Aluminum frame Pleated Panel Filters For Air Conditioning

Product introduction

Coarse filter for primary filtration of air conditioning system.Mainly used to filter dust particles above 5μm.

We have four types:Panel type, folding type,skeleton type and bag type.

The outer frame material has paper frame,aluminum alloy frame, galvanized iron frame, SS frame.

The filter material has Non-woven,nylon net,activated carbon,metal mesh,etc.

G series coarse filters divided into seven types: G1 G2 G3 G4 GN(nylon mesh filter), GH(metal mesh filter),

GC(activated carbon filter)

Product Advantages

1. Adopt double side steel wire net rust prevention, pleated structure, no easy deformed when using.


2. Sealed connection between filter media and frame, protect air leakage


3. Pleat type for media can give large dust holding capacity;


4. Pleated structure can increase the filtration area, raise the dust holding capacity, lengthen the worklife

Main application:

1.Pre-filtration of HVAC system

2.Pre-filtration of air compressor

3.Fresh air return system

4.Pre-filtration of local device

Technical Parameters:

Model Dimension(mm) Rated air flow (m³/h) Resistance(Pa) Efficiency (Arrestance)
SAF-CG-8 295*295*46 800 10-25 G1-G4
SAF-CG-13 295*495*46 1300 10-25 G1-G4
SAF-CG-16 295*595*46 1600 10-25 G1-G4
SAF-CG-22 395*595*46 2000 10-25 G1-G4
SAF-CG-27 495*595*46 2700 10-25 G1-G4
SAF-CG-32 595*595*46 3200 10-25 G1-G4

The size can be customized according to customers requirement

Non - Woven Pre Air Filter Aluminum Frame Pleated Panel For Air Conditioning

Non - Woven Pre Air Filter Aluminum Frame Pleated Panel For Air Conditioning

Non - Woven Pre Air Filter Aluminum Frame Pleated Panel For Air Conditioning

Non - Woven Pre Air Filter Aluminum Frame Pleated Panel For Air Conditioning

Non - Woven Pre Air Filter Aluminum Frame Pleated Panel For Air Conditioning

If you want to know more about our products,feel free to contact me!

Shenzhen Xiangnan High-tech Purification Equipment Co.,Ltd

Website: www.saf-airfilters.com
