F7 High Flow Custom Air Filters V Bank / Cell ABS Plastic Frame Fiberglass Single Flange Type
F7 High Flow Custom Air Filters V Bank / Cell ABS Plastic Frame Fiberglass Single Flange Type
F7 High Flow Custom Air Filters V Bank / Cell ABS Plastic Frame Fiberglass Single Flange Type
F7 High Flow Custom Air Filters V Bank / Cell ABS Plastic Frame Fiberglass Single Flange Type
F7 High Flow Custom Air Filters V Bank / Cell ABS Plastic Frame Fiberglass Single Flange Type
F7 High Flow Custom Air Filters V Bank / Cell ABS Plastic Frame Fiberglass Single Flange Type
F7 High Flow Custom Air Filters V Bank / Cell ABS Plastic Frame Fiberglass Single Flange Type
F7 High Flow Custom Air Filters V Bank / Cell ABS Plastic Frame Fiberglass Single Flange Type
F7 High Flow Custom Air Filters V Bank / Cell ABS Plastic Frame Fiberglass Single Flange Type
F7 High Flow Custom Air Filters V Bank / Cell ABS Plastic Frame Fiberglass Single Flange Type
Specifications
Brand Name :
SAF
Model Number :
SAF-CG
Certification :
CE,ROHS,ISO
Place of Origin :
Shenzhen,China
MOQ :
10pcs
Price :
$15-$50
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50000pcs/month
Delivery Time :
5-10days after receiving the deposit
Packaging Details :
Plywood casing
MOQ :
10PCS
Packaging Detail :
Carton
Application :
Air Conditioning System
Dimension :
Customized or standard size
Grade :
H13 H14
Description

MERV 11 High capacity v bank hepa filter farming filter plastic frame


Product introduction:

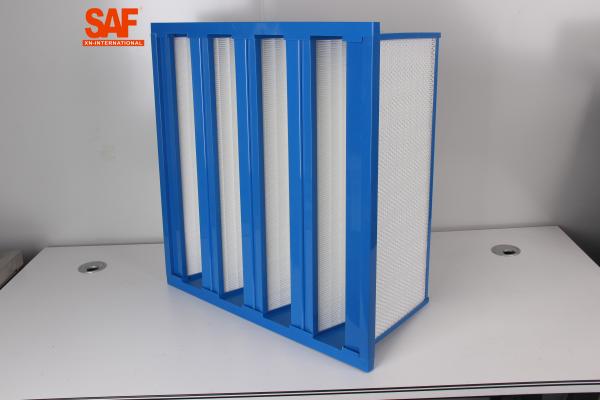

V bank filters, are the pre filters before HEPA filters, filter particles size 0.5um with efficiency from 75-99%, filter media can be polyester or glass fiber. V bank filters is the most important part in cleanroom ventilation systems when cleanliness level 100 or 10. To enlarge the service life of HEPA filters, ULPA filters, V bank filters need to remove most of the 0.5um particles, the role and function is same as pocket filters, but v bank filters offer more stable performance.


Materials

Frame: Standard Size Plastic Frame
Filter Media: PP Synthetic fiber or glass fiber.
Sealant: AB composition polyurethane glue.
Gasket: EVA .
Protect mesh: Coating Diamond Shape protect mesh.

F7 High Flow Custom Air Filters V Bank / Cell ABS Plastic Frame Fiberglass Single Flange TypeF7 High Flow Custom Air Filters V Bank / Cell ABS Plastic Frame Fiberglass Single Flange Type

Technical Parameters:

Model Dimension(mm) Rated air flow (m³/h) Resistance(Pa) Efficiency (Arrestance)
SAF-YGX-40 592*592*292*5V 4000 80 F7
SAF-YGX-32(SW5mm) 592*592*292*4V 3200 95 F8
SAF-YGX-32(sw33mm) 592*592*292*3V 3200 120 F9
SAF-YGX-32(sw50mm) 592*592*292*2V 3200 135 H10
SAF-YGX-36(SW25mm) 610*610*292*5V 3200 220 H13
SAF-YGX-28(sw25mm) 610*610*292*4V 2800 220 99.97%


The size can be customized according to customers requirement

If you want to know more about our products,feel free to contact me!
