Fiber Glass Non Woven Air Filter For Hvac Systems
Fiber Glass Non Woven Air Filter For Hvac Systems
Specifications
Brand Name :
Zhisheng
Model Number :
ZS-F6
Certification :
ISO9001, Rohs
Place of Origin :
Guangdong, China (Mainland)
MOQ :
100 pcs
Supply Ability :
1000 pieces
Delivery Time :
about 15 days upon receipt of deposit
Packaging Details :
plywood case
Shape :
Square
Material :
Fiber Glass
Class :
F6
Size :
Customsize
Color :
white
Type :
Bag - Type
Description

Fiber Glass Bag - Type Pocket Air Filter Can Be Used In Hospital

Features

  • Frame:Galvanized frame, aluminum frame, stainless steel frame, Frame can choose 21mm,25mm,46mm.
  • Media: high performance synthetic fiber,high dust-holding capacity, low initial resistance,pockets are made from leak free ultra sonic machine.
  • Efficiency:(EN779:2002)G4,F5,F6,F7,F8,F9

(ASHRAE 52.2:2007) MERV8, MERV10, MERV12, MERV13,

MERV14, MERV15.

  • Recommended final pressure drop:450Pa.
  • Temperature:70°C
  • Fire rating:DIN 53438 class F1.

Applications

  • Suitable for the electronics, biopharmaceutical, machinery,instrumentation, petrochemical and light industry ect general airpurification systems.
  • As pre filters for hepa filters

Features:

Product type Synthetic fiber pocket filter for second stage gas turbine
Media Synthetic fiber(3-layer) / Mircro glass fiber
Frame Galvanized /Aluminum /ABS plastic
Class F5-F9 (EN799)
Average Efficiency 45%; 65%; 85%; 95%;
Media color White, Orange(Green), Pink, Yellow
Initial pressure drop 50-120 pa (0.2-0.48 WG)
Final pressure drop 200-500 pa(0.8-2 WG)
Operating temperature 80 ºC
Humidity resistance: 100%

Standard size and specification:

Model Outside dimensions(mm) (WxHxD) Rated air flow(m3/h) Initial resistance (Pa) Efficiency (class) Pockets Material
Dust-spot EN799 Frame Media
ZS-F5 495x295x500 (20”x12”x20”) 1000 50Pa 40-50% F5 (White / Yellow) 5

Aluminum /Galvanized Sheet/

plastic

 Non-woven fabric (synthetic fiber)
495x495x500 (20”x20”x20”) 1800 5
595x295x500 (24”x12”x20”) 1300 6
595x595x500 (24"x24"x20") 2600 6
ZS-F6 495x295x500 (20”x12”x20”) 1000 55Pa 60-70% F6 (Orange /Green) 5
495x495x500 (20”x20”x20”) 1800 5
595x295x500 (24”x12”x20”) 1300 6
595x595x500 (24"x24"x20") 2600 6
ZS-F7 495x295x500 (20”x12”x20”) 1000 110Pa 75-85% F7(Pinky) 5
495x495x500 (20”x20”x20”) 1800 5
595x295x500 (24”x12”x20”) 1300 6
595x595x500 (24"x24"x20") 2600 6
ZS-F8 495x495x500 (20”x20”x20”) 1800 120Pa 90-95% F8(Yellow) 5
595x295x500 (24”x12”x20”) 1300 6
595x595x500 (24"x24"x20") 2600 6

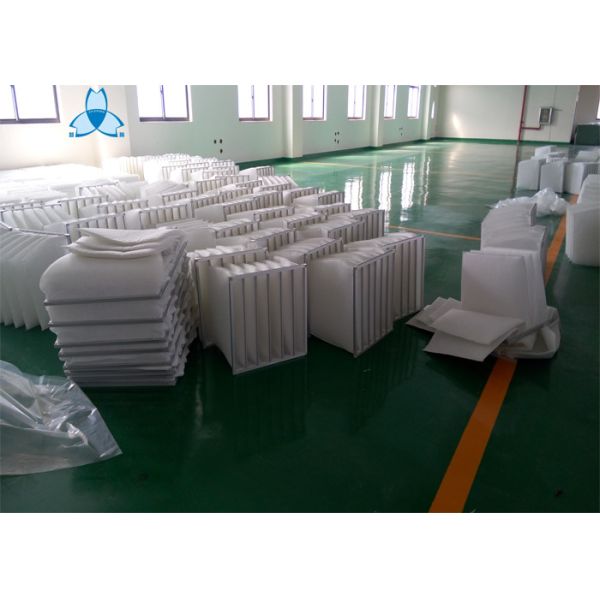

Picture:

Fiber Glass Non Woven Air Filter For Hvac Systems

Why you choose ZHISHENG Company ?

Professional service:

• Fast reply in 12 hours if we receive any inquiry or request from customer

• Familiar with equipment.

Delivery time:

• Production period:15-30days

• Shipping notice or insurance for you after the goods is shipped.

After sales service:

• We respect your feed back after receive the goods.

• We provide 1 year warranty after goods arrive.

• We promise all spare parts available in lifetime use.

• We care of your complain within 48hours.

Payment Term:

30% prepayment by T/T at order, the balance of payment before shipment.
