Self - Supported Air Conditioning Air Filters , Pocket Cleaning Air Filters For Pharmaceutical
Self - Supported Air Conditioning Air Filters , Pocket Cleaning Air Filters For Pharmaceutical
Specifications
Brand Name :
Zhisheng
Model Number :
ZS-F6
Certification :
ISO9001, Rohs
Place of Origin :
Guangdong, China (Mainland)
MOQ :
100 pcs
Supply Ability :
1000 pieces
Delivery Time :
about 15 days upon receipt of deposit
Packaging Details :
plywood case
Construction :
bag filter
Efficiency :
80-85%
Class :
F7
Size :
24''X24''X20''
Color :
purple
Intial resisrance :
100pa
Description

Purple f7 Efficiency 80-85% Pocket Air Filter For Pharmaceutical Factory

Product Description

The filter media used is primary and medium effiency nonwovens and activated carbon nonwoven made into pocket structure by welding and melding process, with or without frame (galvanized steel sheet or extruded aluminium profiles).

The frame can be made into any size for easy installment and maintenance.

Apllication

1. General filtration in the firelds of eleatrics, medicals, foods and precise machinery.

2. Pre-filtration for high efficiency air filtration to reduce the burden on high effiency filter and prolong the service lifetime.

Features:

Product type Synthetic fiber pocket filter for second stage gas turbine
Media Synthetic fiber(3-layer) / Mircro glass fiber
Frame Galvanized /Aluminum /ABS plastic
Class F5-F9 (EN799)
Average Efficiency 45%; 65%; 85%; 95%;
Media color White, Orange(Green), Pink, Yellow
Initial pressure drop 50-120 pa (0.2-0.48 WG)
Final pressure drop 200-500 pa(0.8-2 WG)
Operating temperature 80 ºC
Humidity resistance: 100%

Standard size and specification:

Model Outside dimensions(mm) (WxHxD) Rated air flow(m3/h) Initial resistance (Pa) Efficiency (class) Pockets Material
Dust-spot EN799 Frame Media
ZS-F5 495x295x500 (20”x12”x20”) 1000 50Pa 40-50% F5 (White / Yellow) 5

Aluminum /Galvanized Sheet/

plastic

 Non-woven fabric (synthetic fiber)
495x495x500 (20”x20”x20”) 1800 5
595x295x500 (24”x12”x20”) 1300 6
595x595x500 (24"x24"x20") 2600 6
ZS-F6 495x295x500 (20”x12”x20”) 1000 55Pa 60-70% F6 (Orange /Green) 5
495x495x500 (20”x20”x20”) 1800 5
595x295x500 (24”x12”x20”) 1300 6
595x595x500 (24"x24"x20") 2600 6
ZS-F7 495x295x500 (20”x12”x20”) 1000 110Pa 75-85% F7(Pinky) 5
495x495x500 (20”x20”x20”) 1800 5
595x295x500 (24”x12”x20”) 1300 6
595x595x500 (24"x24"x20") 2600 6
ZS-F8 495x495x500 (20”x20”x20”) 1800 120Pa 90-95% F8(Yellow) 5
595x295x500 (24”x12”x20”) 1300 6
595x595x500 (24"x24"x20") 2600 6

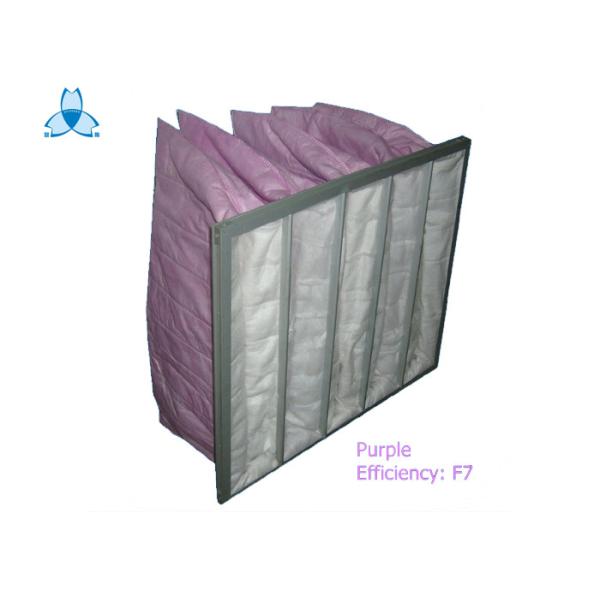

Picture:

Self - Supported Air Conditioning Air Filters , Pocket Cleaning Air Filters For Pharmaceutical

Why you choose ZHISHENG Company ?

Professional service:

• Fast reply in 12 hours if we receive any inquiry or request from customer

• Familiar with equipment.

Delivery time:

• Production period:15-30days

• Shipping notice or insurance for you after the goods is shipped.

After sales service:

• We respect your feed back after receive the goods.

• We provide 1 year warranty after goods arrive.

• We promise all spare parts available in lifetime use.

• We care of your complain within 48hours.

Payment Term:

30% prepayment by T/T at order, the balance of payment before shipment.
