Class H14 Two Handles Box Type Hepa Air Filter With Alminum Foil
Class H14 Two Handles Box Type Hepa Air Filter With Alminum Foil
Class H14 Two Handles Box Type Hepa Air Filter With Alminum Foil
Class H14 Two Handles Box Type Hepa Air Filter With Alminum Foil
Class H14 Two Handles Box Type Hepa Air Filter With Alminum Foil
Class H14 Two Handles Box Type Hepa Air Filter With Alminum Foil
Specifications
Brand Name :
Zhisheng
Model Number :
ZS-GB595
Certification :
ISO 9001, Rohs
Place of Origin :
Guangdong, China (Mainland)
MOQ :
50 pieces
Supply Ability :
500 pieces per month
Delivery Time :
about 15 days upon receipt of deposit
Packaging Details :
plywood case
Frame :
Galvanzied frame
Separator :
alminum separator
Size :
595x595x292mm
Type :
Box type
Application :
clean room
Class :
H13 H14
Description

H13 -H14 Two Handles Box Type Hepa Air Filter With Alminum Foil

Description:

High capacity HEPA filter are mainly used to filtrate the suspended particles in the air with the diameter of 0.3um and below and used for the terminal filtration of all kinds of filtration system.

Applications:

HEPA filters are extensively used in the terminal filtration of the civil or industrial cleansing places in the industries such as electron, semiconductor, precision mechanism, pharmacy, hospital and food, etc., which require relatively high cleanliness factors. It is suitable to filtrate for clean room and clean factory workshop with dust particle diameter less then 0.3-0.5um.

Material and operating conditions:

External frame Aluminum Alloy/GI/Stainless steel
Sealant Polyurethane
Separator Clapboard or aluminum foil
Filter media Fiberglass /HV fiberglass / PP
Maximum operating temperature 80°C
Maximum operating humidity 100%
HEPA filter Efficiency ≥99.99%

Features:

1: The HEPA with aluminum separator is the finally filtration in clean room that use for filter the particles more than 0.3um, and in high airflow environment.

2: The media is used of micro glass fiber, the paper clapboard or the aluminum foil spacer in regular so that the refresh air pass through the media very easy. make the best of area used and increase the intensity of the pleats

3: The paper / aluminum foil media in 180 degree fold that compost of the wedge layer so that prevented the media damage.

4: The sealant around the media so that the air filter without any air leaking,

the frame can be wooden, aluminum,galvanized or stainless steel.

5: Laser to scan the each air filter one by one,

6: The HEPA air filter efficiency range: H10, H11, H12 H13, H14,

95%-99.99995%@0.3um (EN1822).

7: Each air filter with test report accompany

Size and Specification:

Model Dimensions(mm) Rated air flow (m3/h) Initial resistance (Pa) Efficiency (MPPS) Class (EN1822)
ZS-GB320 320x320x220 400 ≤220(fiberglass) ≤120(HV fiberglass) ≤120(PP) 95% -99.995% F9-H14
ZS-GB350 350x350x220 500
ZS-GB484 484x484x220 1000
ZS-GB630 630x630x220 1500
ZS-GB610 610x610x150 1000
ZS-GB915 915x610x150 1500
ZS-GB1220 1220x610x150 2000
ZS-GB295 295x595x292 1400
ZS-GB595 595x595x292 2800
ZS-GB305 305x610x292 1500
ZS-GB610-2 610x610x292 3000

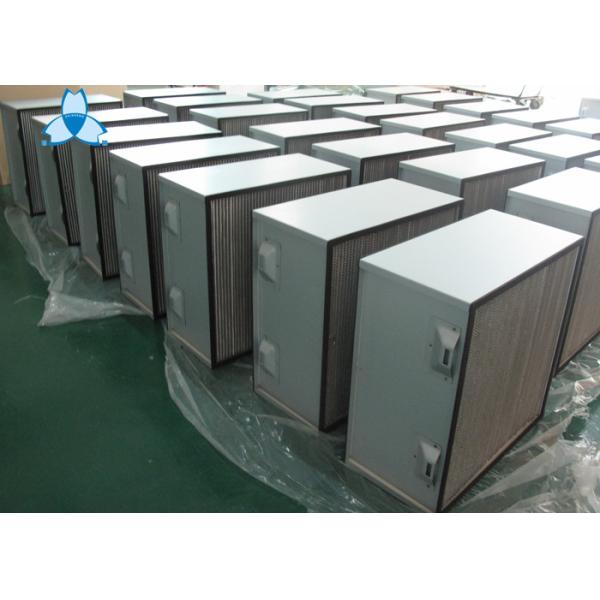

Pictures of HEPA filter

Class H14 Two Handles Box Type Hepa Air Filter With Alminum Foil

Payment Term:

30% prepayment by T/T at order, the balance of payment before shipment.

Delivery time:

• Production period:15-30days

• Shipping notice or insurance for you after the goods is shipped.

After sales service:

• We respect your feed back after receive the goods.

• We provide 1 year warranty after goods arrive.

• We care of your complain within 48hours.
