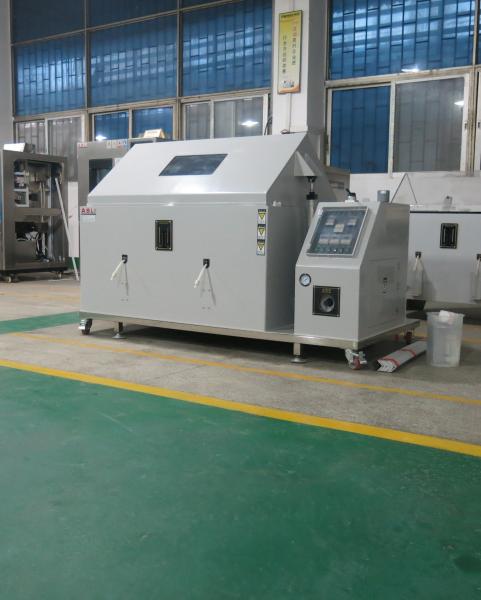

Salt Spray Test Machine For CASS And NSS Test , Salt Fog Spray Test Chambers
Salt Spray Test Machine For CASS And NSS Test , Salt Fog Spray Test Chambers
Salt Spray Test Machine For CASS And NSS Test , Salt Fog Spray Test Chambers
Salt Spray Test Machine For CASS And NSS Test , Salt Fog Spray Test Chambers
Salt Spray Test Machine For CASS And NSS Test , Salt Fog Spray Test Chambers
Salt Spray Test Machine For CASS And NSS Test , Salt Fog Spray Test Chambers
Salt Spray Test Machine For CASS And NSS Test , Salt Fog Spray Test Chambers
Salt Spray Test Machine For CASS And NSS Test , Salt Fog Spray Test Chambers
Salt Spray Test Machine For CASS And NSS Test , Salt Fog Spray Test Chambers
Salt Spray Test Machine For CASS And NSS Test , Salt Fog Spray Test Chambers
Salt Spray Test Machine For CASS And NSS Test , Salt Fog Spray Test Chambers
Salt Spray Test Machine For CASS And NSS Test , Salt Fog Spray Test Chambers
Specifications
Brand Name :
ASLi
Model Number :
SH-120
Certification :
CE, ISO, SGS
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
150 Set/ month
Delivery Time :
10~15 workdays
Packaging Details :
Standard Export Plywood Case
Internal Dimension :
W1200xH800xD500mm
External Dimension :
W1900xH1300xD1400mm
Lab Temperature :
Saline test (NSS ACSS) 35±1 ℃
Lab Capacity :
480L
Saline Capacity :
40L
Compressed Air Pressure :
1.0~6.0Kgf
Description

Salt Spray Test Machine For CASS And NSS Test, Salt Fog Spray Test Chambers

Application:


Salt Spray Test Machine For CASS And NSS Test, Salt Fog Spray Test Chambers is specially designed for the testing of the corrosion erosion resistance of the products after their material surfaces have been treated with electric plating, anodizing, spray coating, anti-rusting oil and other anti-erosion treatment.

Salt Fog Spray Test Chambers Technical Parameters:

Model SH-120
Internal Dimension WxHxD (mm) 1200x800x500
External Dimension WxHxD (mm) 1900x1300x1400
Lab Temperature Saline test (NSS ACSS) 35±1 ℃ ;Corrosion Test (CASS)50±1 ℃
Pressure Bucket Temperature Saline test method (NSS ACSS) 47±1 ℃ / Corrosion Test (CASS)63±1 ℃
Lab Capacity(L) 480
Saline Capacity(L) 40
Saline Concentration 5% concentration of NaCl, or every Liter 5% NaCl add 0.26g CuCl2H2O
Compressed Air Pressure (Kgf) 1.0~6.0
Spray Volume 1.0~2.0ml /80cm2 /h(working at least 16 hours, and take the average value)
Spray Form Continuous Spraying or Programmable Spraying
Power AC220V 1∮ 3 lines15A
Weight(Kg) 120

Salt Spray Test Machine For CASS And NSS Test , Salt Fog Spray Test Chambers

Control System:


1.Test Chamber temperature controller 0 ~ 99.9 °C, LCD display with Dual digital display, with P.T.D automatic calculation function, temperature deviation ± 0.3 °C
2.Saturated air barrel temperature controller 0 ~ 99.9 °C, LCD display with Dual digital display, with P.I.D automatic calculation function, error of the temperature control in ±0.3 °C.
3.timer : 0~9990hr
4.Digital controller :0.1s~9990hr
5. air pressure range of the gauge: 0~5kg/cm2
6.temperature senser
7.electromagnetic valve
8. electric relay

Packing & Shipping Detail:

Salt Spray Test Machine For CASS And NSS Test , Salt Fog Spray Test Chambers

Salt Spray Test Machine For CASS And NSS Test Features:


1. Adopt automatically or manually adding water system, can watered by itself while lack of water.
2. Precise glass spray nozzle, good uniformity, mist dropping naturally, no NaCl crystallized salt
3. Double over-heat protection devise and alarm when water short storage to ensure use safety.
4. Digitally temperature controller, PID controlled, precision of ±0.1℃
5. Laboratory direct steam-heated, even heating speed, reducing the standby time.
6. Tapered Spray tower, even mist dropping
7. Saturated bucket is SUS #304, convenient for heating and humidifying, offer humidity for testing
8. Concentration of NaCl: 5%; PH of the water: 6.5-7.2 (Liquid)
