High Frequency Vibration Environmental Test Chamber Temperature Humidity Climate Chamber
High Frequency Vibration Environmental Test Chamber Temperature Humidity Climate Chamber
High Frequency Vibration Environmental Test Chamber Temperature Humidity Climate Chamber
High Frequency Vibration Environmental Test Chamber Temperature Humidity Climate Chamber
High Frequency Vibration Environmental Test Chamber Temperature Humidity Climate Chamber
High Frequency Vibration Environmental Test Chamber Temperature Humidity Climate Chamber
High Frequency Vibration Environmental Test Chamber Temperature Humidity Climate Chamber
High Frequency Vibration Environmental Test Chamber Temperature Humidity Climate Chamber
High Frequency Vibration Environmental Test Chamber Temperature Humidity Climate Chamber
High Frequency Vibration Environmental Test Chamber Temperature Humidity Climate Chamber
Specifications
Brand Name :
ASLi
Model Number :
TH-408-F
Certification :
CE,ISO, SGS
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
50 sets/ year
Delivery Time :
30~45 workdays
Packaging Details :
Standard Export Plywood Case
Internal dimension :
W600*H850*D800mm
External Dimension :
W850xH1950xD2100mm
Temperature Range :
-70~150C
Humidity Range :
20%~98%R.H
Control Accuracy of temperature :
+/- 0.5ºC
Control Accuracy of humidity :
+/- 2.5% R.H.
Vibration Direction :
Vertical + Horizontal Vibration
Frequency :
5~3500hz
Description

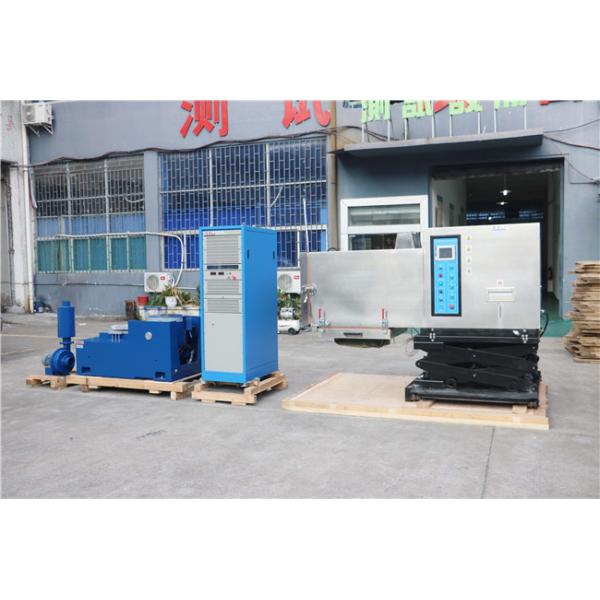

Temperature Humidity Climate Chamber Plus High Frequency Vibration Tester


Application:
Temperature Humidity Climate Chamber Plus High Frequency Vibration Tester to meet with respective corresponding environmental test requirements of temperature, humidity and vibration; extensively applied in aviation and aerospace, shipping, electronics ,automobile car, telecommunications, industry.

Temperature Humidity Climate Chamber Plus High Frequency Vibration Tester Technical Parameters:

Model THV-408(A~F) THV-1000(A~F) THV-1500(A~F)
Internal Dimension WxHxD(mm) 600x850x800 1000x1000x1000 1500x1500x1500
External dimension WxHxD (mm) 850x1950x2100 1300x2200x2400 1800x2400x3000
Temperature Range Low temperature: (A:25ºC; B:0ºC; C:-20ºC; D: -40ºC; E: -60ºC; F:-70ºC)
High temperature:100ºC(150ºC)
Humidity Range 20%~98%R.H.(10%-98% R.H. / 5%-98% R.H. is a special optional condition, need Dehumidifier)
Indication Resolution / Distribution uniformity of temperature and humidity 0.1ºC; 0.1% R.H/±2.0ºC; ±3.0% R.H.
Control Accuracy of temperature and humidity ±0.5ºC; ±2.5% R.H.
Temperature Rising / Falling Velocity Temperature rising approx. 0.1~3.0ºC/min ;
temperature falling approx. 0.1~1.0ºC/min;
(Falling velocity Min.1.5ºC/min is optional)
Internal and External Material Material of the inner box is SUS 304# stainless steel,of the outer box is stainless steel or see cold-rolled steel with paint coated.
Insulation Material Resistant to high temperature, high density, formate chlorine, ethyl acetum foam insulation materials
Cooling System Wind cooling or water cooling; single segment compressor for -40ºC, double segment compressor for -70ºC
Protection Devices Fuse-free switch, overloading protection switch for compressor, high and low voltage coolant protection switch, over-humidity and over-temperature protection switch, fuses, fault warning system, water short storage warning protection
Optional Accessories Inner door with operation hole(Optional) , Recorder(optional), Water Purifier, Dehumidifier
Vibration Test Equipment Choose proper vibration test bench according to customer's test condition, the technical parameters please take Electrodynamics Type Vibration Tester's parameters in this catalog for reference
Power AC380V 3 phase 5 Lines, 50/60HZ


High Frequency Vibration Environmental Test Chamber Temperature Humidity Climate Chamber

Temperature Humidity Climate Chamber Plus High Frequency Vibration Tester Feature:
1. A combined structure of test chamber and refrigerating system boasting compact and graceful design; independent console
2. Original refrigerating compressor unit and its main accessories are internaltional famous brand;
3.LCD color touch screen controller, capable of automatic control of temperature humidity programs;
4. RS-232 communication. To meet customer's unique demands, users may choose from different models of vibration test bench to ensure that in addition to good cool,
5. Heat and air seal system, this vibration bench will also boasts remarkable effect of mechanical vibration
Packing Detail:
High Frequency Vibration Environmental Test Chamber Temperature Humidity Climate Chamber
High Frequency Vibration Environmental Test Chamber Temperature Humidity Climate Chamber
High Frequency Vibration Environmental Test Chamber Temperature Humidity Climate Chamber
High Frequency Vibration Environmental Test Chamber Temperature Humidity Climate Chamber

Our reputation is built on superior quality and outstanding customer service. If you have any question or needs, please don't hesitate to contact me. Thanks in advance!
