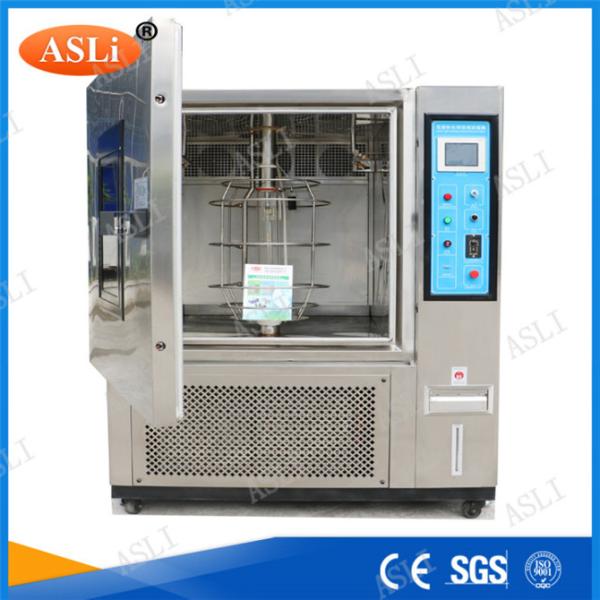

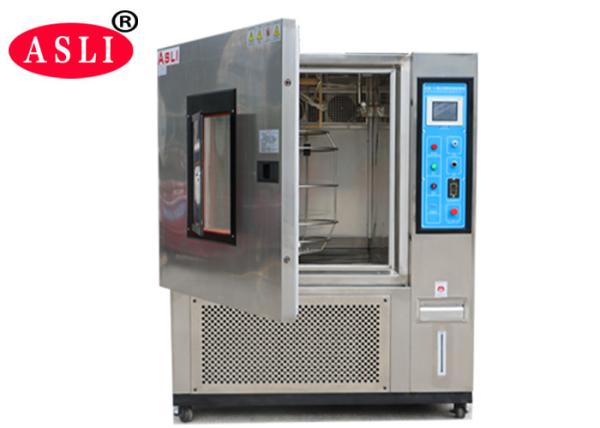

1200 W/M2 Xenon Lamp Weather Resistance Test Chamber with 1000 Liters Test Box
1200 W/M2 Xenon Lamp Weather Resistance Test Chamber with 1000 Liters Test Box
1200 W/M2 Xenon Lamp Weather Resistance Test Chamber with 1000 Liters Test Box
1200 W/M2 Xenon Lamp Weather Resistance Test Chamber with 1000 Liters Test Box
1200 W/M2 Xenon Lamp Weather Resistance Test Chamber with 1000 Liters Test Box
1200 W/M2 Xenon Lamp Weather Resistance Test Chamber with 1000 Liters Test Box
1200 W/M2 Xenon Lamp Weather Resistance Test Chamber with 1000 Liters Test Box
1200 W/M2 Xenon Lamp Weather Resistance Test Chamber with 1000 Liters Test Box
1200 W/M2 Xenon Lamp Weather Resistance Test Chamber with 1000 Liters Test Box
1200 W/M2 Xenon Lamp Weather Resistance Test Chamber with 1000 Liters Test Box
Specifications
Brand Name :
ASLI
Model Number :
XL-1000
Certification :
CE, ISO, SGS
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
50 Sets/Month
Delivery Time :
25~30workdays
Packaging Details :
Standard Export Plywood Case
Internal Dimension :
W1000xH1000xD1000mm
External Dimension :
W1500xH2000xD1400mm
Tube Using Life :
1500 hours
Tube Power :
1KW
Cooling System :
Air Cooling
Diameter of Sample Shelf :
500+/-50mm
Spray water flow :
1~2.4L/min
Volume :
1000 Liters
Description

XL-1000 Xenon Arc Lamp Test Chamber.pdf

1200 w/m2 Xenon Lamp Weather Resistance Test Chamber with 1000 Liters Test Box

1200 W/M2 Xenon Lamp Weather Resistance Test Chamber with 1000 Liters Test Box
Application:
1200 w/m2 Xenon Lamp Weather Resistance Test Chamber with 1000 Liters Test Box is a comprehensive climate testing machine, it can do climatic aging test, and also can do fading acceleration test under color effect or color changed. The test range including: dying and finishing, printing, leather, plastic, plyglass, painting, textile, printing ink, rubber and also the industry relative color. Light fastness and fade grade can be known in short time. Those materials exposed at simulated sunlight to evaluated the material's light fastness performance. To simulate and strengthen the test according to light energy, temperature, rain fall or condensation, humidity, .etc these main climate factors. Adopt simulated sunlight spectrum's Xenon arc light to create destructive waves under different environment. It can be used for choosing new materials, improving existing materials, or assessment of durability change after material composed.

Xenon Lamp Weather Resistance Test Chamber Technical Parameters:

ModelXL - 1000
Internal Dimension WxHxD (mm)1000x1000x1000
External Dimension WxHxD (mm)1500x2000x1400
Tube Using Life (H)1500
Tube Power1KW/6KW
Illumination Intensity340nm
0.35~0.6w/m2		Full spectrum
1200±200w/m2
Lighting Filter TypeInner filterQuartz
Outer filterQuartz
Simulated Test Status Test samples: Explore under outer space
Cooling SystemWater cooled or wind cooled
Temperature Control Range of the Test CabinetBlack panel temperature : BPT 40~120ºC(±3ºC)
Black standard temperature :BST 38~120ºC(±3ºC)
Humidity Control Range of the Test CabinetHumidity when lighting: 20%R.H.~75%R.H. (± 5%R.H.)
Humidity when dark: 60%R.H.~95%R.H. (± 5%R.H.)
Rotating Speed of the Samples Holder(RPM)1~5 adjustable
Diameter of Sample Shelf(mm)500±50
Sunlight Exposure Cycle0.01~999 hours 59mins
Raining Period / TimeRaining Period:1~240mins,discontinuous-type, adjustable
Raining Time:1~9999mins, adjustable, water spray pressure 70~130Kpa
Spray water flow (L/min)1~2.4
Explore Area (cm2)7500
PowerAC 380 V(±10%),50/60HZ ,3 phase 5 Lines


1200 w/m2 Xenon Lamp Weather Resistance Test Chamber Features:
1. Advanced design technology and concept,
2. Excellent technology of producing and outstanding system of quality management,
3. Xenon lamp tester can be the most realistic simulated solar spectrum, including ultraviolet,
visible and infrared.
4. Be tested in the range of the full spectrum, necessary for most textile sun and color fastness test.
5. To determine the color fastness and aging to sunlight, weather resistance, etc.
1200 W/M2 Xenon Lamp Weather Resistance Test Chamber with 1000 Liters Test Box

1200 W/M2 Xenon Lamp Weather Resistance Test Chamber with 1000 Liters Test Box
