Touch Screen Environmental Test Chamber , SAT-45 Ventilator-Aging Test Cabinet
Touch Screen Environmental Test Chamber , SAT-45 Ventilator-Aging Test Cabinet
Touch Screen Environmental Test Chamber , SAT-45 Ventilator-Aging Test Cabinet
Touch Screen Environmental Test Chamber , SAT-45 Ventilator-Aging Test Cabinet
Touch Screen Environmental Test Chamber , SAT-45 Ventilator-Aging Test Cabinet
Touch Screen Environmental Test Chamber , SAT-45 Ventilator-Aging Test Cabinet
Touch Screen Environmental Test Chamber , SAT-45 Ventilator-Aging Test Cabinet
Touch Screen Environmental Test Chamber , SAT-45 Ventilator-Aging Test Cabinet
Touch Screen Environmental Test Chamber , SAT-45 Ventilator-Aging Test Cabinet
Touch Screen Environmental Test Chamber , SAT-45 Ventilator-Aging Test Cabinet
Specifications
Brand Name :
ASLi
Model Number :
SAT-45 / SAT-60 / SAT-75
Certification :
CE, ISO ,SGS
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
50 sets per month
Delivery Time :
25~30 workdays
Packaging Details :
Standard Export Plywood Case
Temperature Range :
RT+15℃~200℃ (300℃)
Uniformity of Distribution :
±2.0℃
Speed of Test Frame ( RPM) :
5-10
Power :
AC220V
Description

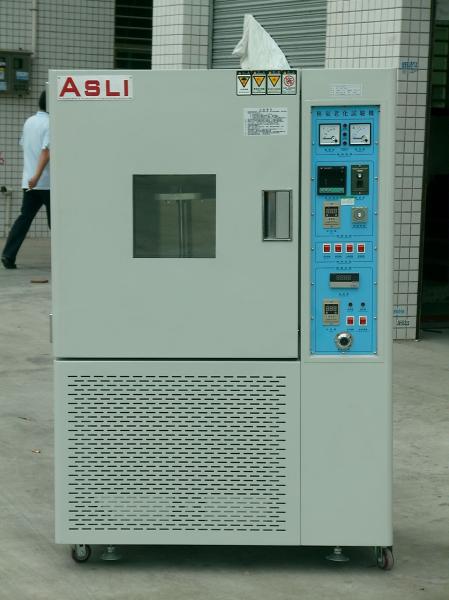

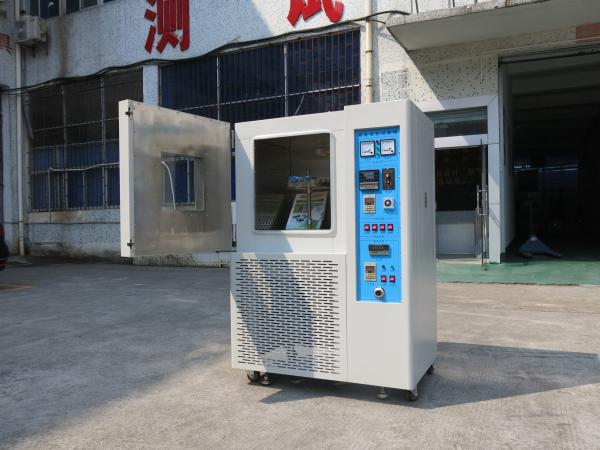

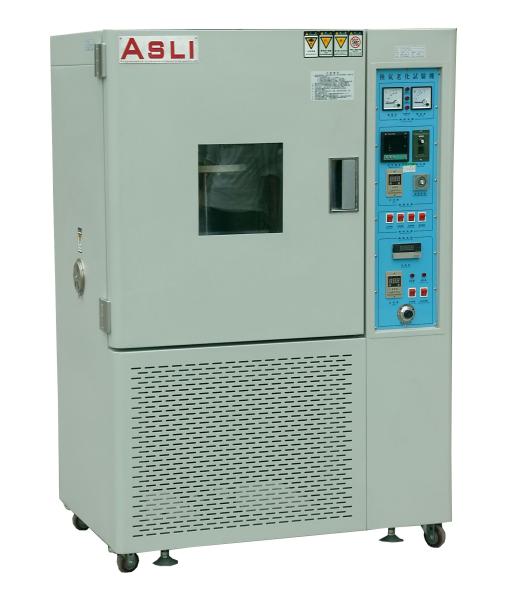

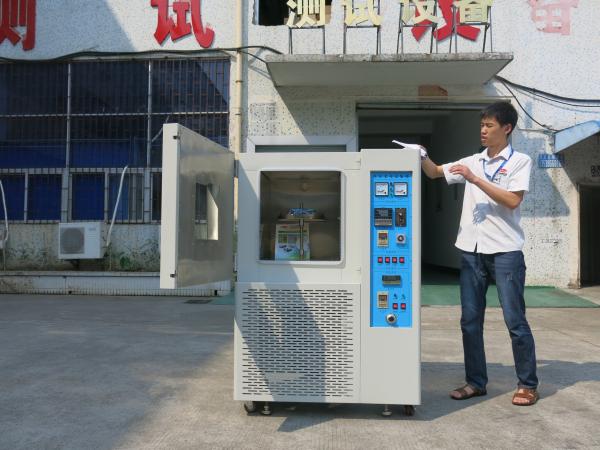

Touch Screen Environmental Test Chamber , SAT-45 Ventilator-Aging Test Cabinet

Application:

Touch Screen Aeration Aging Testing Chamber, Ventilator-Aging Test Cabinet is used to test the material heat-resistance of polymer materials (plastics, plastic) and electronic parts, electrical insulation materials, such as: wire and cable sheathing, heat-shrinkable tubing, rubber or PVC materials.

Ventilation Conversion Formula:

N=3590(X-Y)x2/VD△t

N: Ventilators;

V: Capacity of case;

X: Power consumed when open the air valve

Y: Power consumed when closed

△t: Temperature difference between working and environmental

Constant: 3590

Touch Screen Aeration Aging Testing Chamber technical parameters:

Model SAT-45 SAT-60 SAT-75
Internal Dimension W×H×D(mm) 450×500×450 500×600×500 600×750×600
External Dimension W×H×D(mm) 1000×1000×700 1150×1200×850 1350×1500×1000
Internal and External Material Material of the inner box is SUS 304# stainless steel, of the outer box is stainless steel or SEE cold-rolled steel with paint coated.
Temperature Range RT+10℃~200℃ (300℃)
Uniformity of Distribution ±2.0℃
Air Ventilation Rate 0-200 times/hr adjustable, with an ventilative adjustment button, Watt/Hour

Speed of Test Frame

( RPM)

 5-10
Power AC220V

Ventilator-Aging Test Cabinet features:

1. Easy to operation and the box using CNC machining, elegant design, innovative and adopt counterproductive handle.

2. Internal material is high imported SUS304 mirror Stainless steel or 304B TIG, outside is A3 Steel spray, it improves the texture and appearance of cleanliness.

4. You can visually observe through huge Tempered glass windows with lights anytime and clearly.

5. Good uniformity of temperature

7. With D.50mm test holes on the left side for external test power line or signal line.

Touch Screen Environmental Test Chamber , SAT-45 Ventilator-Aging Test Cabinet
