Specifications
Brand Name :
ASLI
Model Number :
ES-6
Certification :
CE,ISO
Place of Origin :
Guangdong,China
MOQ :
1set
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
20 sets/month
Delivery Time :
45-50 work days
Packaging Details :
export standard plywood case
Power :
Electronic
Usage :
Vibration Testing Machine
Vertical vibration: :
direction of Z axle
horizontal vibration :
direction of X,Y axle
Sine force Max.: :
350000N
Random force Max. :
350000N
Frequency: :
3-3500 HZ
Horizontal bench size: :
according to customer's test requirepment
tions vertical bench size: :
according to customer's test requirepment
Loading Max.: :
4500KG
origin: :
China
Vibration controller :
easy to operate
Description

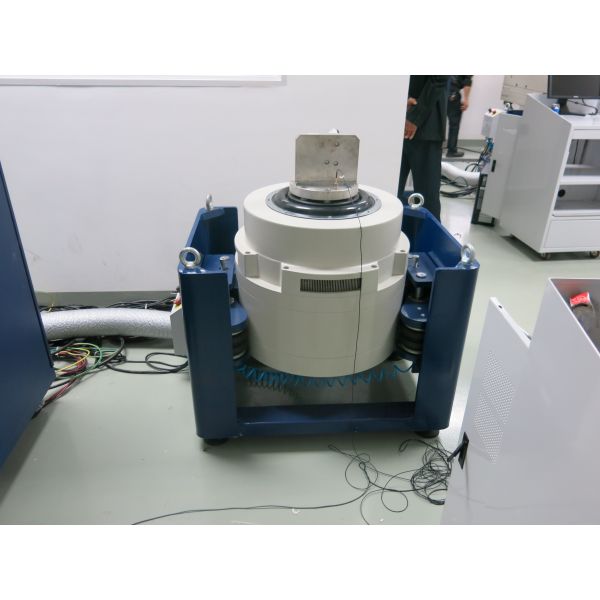

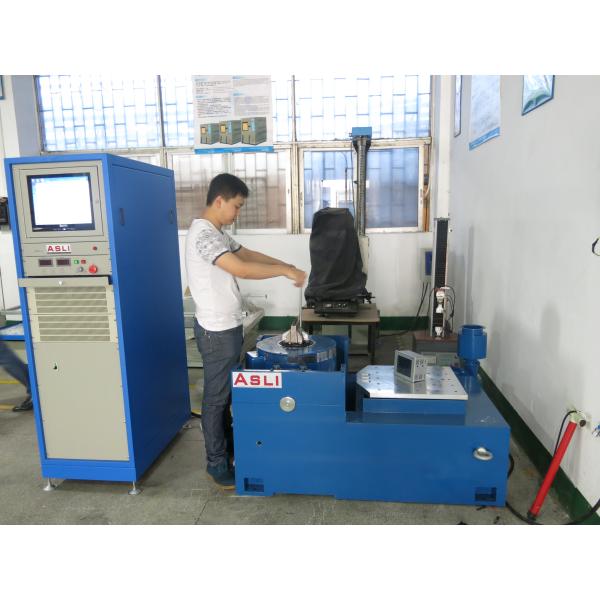

Electrodynamic Vibration Test equipment , High Frequency Vibration Test Table

Product Description

1. Electrodynamic High Frequency Vibration Test Table/ Vibrating Machine price Application:

Electrodynamic shaker & vibration testing equipment for lab widely used in national defense, weapons, aviation, aerospace, communications,electronics, electrical appliances, communications, home appliances and other fields.

2. Electrodynamic High Frequency Vibration Test Table/ Vibrating Machine price Features :

1. Well-designed dynamic circle skeleton, with a higher stage axial resonance frequency.

2. Two-magnetic circuit, magnetic flux leakage low, compact structure and rational.

3. Rocker Rod roller bearings straight and import-oriented composite body stiffness orientation, eccentric load capacity.

4. Trunnion isolation foundation dedicated to hormone use, the installation of mobile convenience.

5. Advanced technology move around the system to ensure that the dynamic circle of high reliability.

6. New duct design and enhance the cooling effect.

7. Static stiffness, dynamic stiffness of the bearing small balloon, raising the vibration table bearing capacity

3.Electrodynamic High Frequency Vibration Test Table/ Vibrating Machine price Technical Parameters:

Model

Rated Sine

Force (N)

Rated

Random

Force (N)

Frequency

Range (Hz)

Rated

Acceleration

(m/s2)

Rated

Speed(m/s)

Rated

Replacement

(p-p)mm

Max.

Loading

(Kg)

moving coil

(Kg)

Dimension

of

Moving coil(mm)

ES-1

1000

1000

3-3500

400

1.2

25

70

2.5

Φ150

ES-3

3000

3000

3-3500

1000

1.6

25

100

3.5

Φ150

ES-6

6000

6000

3-3500

1000

1.6

25

180

6.5

Φ230

ES-10

10000

10000

3-3000

1000

1.8

51

270

14

Φ240

ES-20

20000

20000

3-3000

1000

1.8

51

300

30

Φ320

Electrodynamic Vibration Test Equipment , High Frequency Vibration Test Table

Electrodynamic Vibration Test Equipment , High Frequency Vibration Test Table

Electrodynamic Vibration Test Equipment , High Frequency Vibration Test Table

2-4-2 Controlling Software Specification

2-4-2-1 Sinusoidal Wave

(1)Control Mode : sinusoidal waveform controlling software

(2) Frequency Range: 1.0 to 5000hz ( 1.0 to 12000hz is optional)

(3)Control Dynamic Range : 100dB

(4)Closed-Loop Time: 10ms

(5)Control Accuracy: ±1dB

(6) Frequency Resolution: 0.01%

(7) Sweep Velocity: linear sweep 0 to 6000hz/s; logarithmic sweep 0 to 6000hz/s

(8)Wave Distortion: <0.3%

2-4-2-2 Random Wave

(1)Control Mode : PSD

(2)Frequency Range: DC to 4800Hz,(DC to 11000Hz is optional)

(3)Resolution: Max.1600 lines

(4)Control Dynamic Range : 90dB

(5)Closed-Loop Time: typically 100ms

(6)Control Accuracy: ±1dB

2-4-2-3 Shock Wave

(1)Control Mode : waveform can be controlled

(2)Shock Mode: half-sine wave,saw tooth wave,triangular wave,rectangular wave,trapezoidal wave

(3)Frequency Range: DCto22000Hz

(4)Frame: Max.32K

(5)Duration Time : 0.5-3000ms

(6)Compensation Mode: pre-pulse, after-pulse, pre/after-pulse

Our Services

4. Warranty: one year free warranty ,lifelong maintenance.

5. After-sale service: Feedback within 2 hours after get call.

6. Service:OEM service,Design service,Buyer lable service.

Company Information

ASLi (China) Test Equipment Co., Ltd is a long history manufacturing test equipments, in the past 10 years, we devoted to manufacturing climatic chambers,simulation environronmental test equipment and Mechanical test equipment.

ASLi main products: Environmental chambers, temperature (humidity) chamber, PCT /Hast chamber (Highly accelerated stress test chamber),ESS chamber, Walk in stability chamber,Vacuum oven,vibration tester, mechanical shock tester,environmental combined vibration chamber,etc
