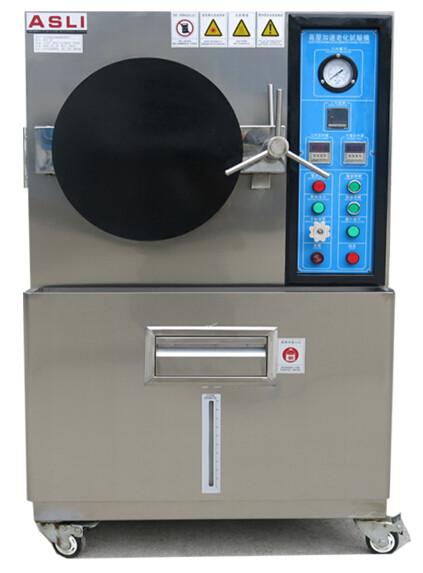

Saturated Type PCT Testing Chamber / Customized High Pressure Saturated PCT Test Machine

application:

Saturated Type PCT Testing Chamber / Customized High Pressure Saturated PCT Test Machine is widely applied for the testing of sealing property for multi-layer circuit board, IC sealing package, LCD screen, LED, semi-conductor, magnetic materials, NdFeB, rare earths and magnet iron, in which the resistance to pressure and air tightness for above mentioned products can be tested out.

Customized High Pressure Saturated PCT Test Machine technical parameters:

Model	PCT - 25	PCT - 35	PCT - 45		PCT - 55	PCT - 65
Internal Dimension Φ×D (mm)	300×250	350×450	450×550		550×650	650×750
External Dimension Φ×D (mm)	750×1200×800	800×1250×800	900×1380×900		1050×1550×1100	1200×1700×1250
Temperature Range of Saturated Steam (Operating temperature)	(Temperature Range of Saturated Steam:100℃~135℃) , Temperature Range: 120℃,100Kpa/ 133℃ 200 Kpa;(143℃ is special order)
Relative Pressure/ Absolute Pressure	Relative pressure: display values indicated on the pressure gauge Absolute pressure: Value that add 100 Kpa based on display values indicated on the pressure gauge (The actual value in the inner box)
Comparison Table of Temperature, Humidity , Pressure of Saturated Steam
Humidity of Saturated Steam	100%RH saturation steam humidity
Steam Pressure(Absolute Pressure)	101.3Kpa +0.0Kg/cm2 ~ 2.0Kg/cm2 ; (3.0Kg/cm2 is special standard)
Recursive Device	Steam Natural convection circulation
Safety Protective Devise	Water short storage protect, over pressure protect.(have automatically/manual water replenishing, automatically discharge pressure function )
Accessories	Two layers stainless steel plate
Equipment Capacity(L)	17	43		87	155	250
Power	AC 220V(±10%), 1∮ 3 Lines ,50/60HZ ;

Saturated Type PCT Testing Chamber features:

1. Automatic adding water function, and automatic filling water upon the water short storage while testing.
2. Automatic operation to test process finished, easy to use.
3. Temperature control: LED digital temperature controller can make accurate testing of temperature setting, control and display.
4. LED digital timer, when the inner box’s temperature reached the setting value, then start to time to ensure the test complete.
5. Accurate pressure: temperature chart always shows the inner box’s pressure and relative humidity.
6. Water device is automatically discharge not saturated steam in order to achieve the best steam quality.
7. A integrated silic gel door gasket, air tightness is very good, and long operation life.
8.The inner box is mirror-polished , graceful and non-pollution

Customized High Pressure Saturated PCT Test Machine safety device:

1. Safety device for the pot: If the inner box is not closed , the machine can not start
2. Safety Valve: When the inner box’s pressure higher than the machine’s undertake value, it will self-relieve.
3. Double overheat protection device: When inner box’s temperature is too high, it will alarm, and Automatic cut off the heating power.
4. Cover protection: The inner box’s cover is made of aluminum alloy, can protect the worker from scald.

Warranty: one year free warranty for whole set machine,lifelong time maintainance.

After-sale service: feedback within 8 hours after get the call or email.

Service:OEM service,Design service,Buyer lable service.

Short introduction about ASLi factory:

We are a long history testing equipment manufacturer, in the past 28 years, we devoted to simulation environmental testing equipment and Mechannical vibration and shock testing machine.Saturated Type PCT Testing Chamber / Customized High Pressure Saturated PCT Test Machine is our star products , and we had obtained the CE certification for this machine .

Customer visit ASLI factory:

Package: PP film first, and then 10mm foam between machine and the case, and outside is standard export plywood case.

If you want to learn more knowledge, welcome to contact us at any time.
