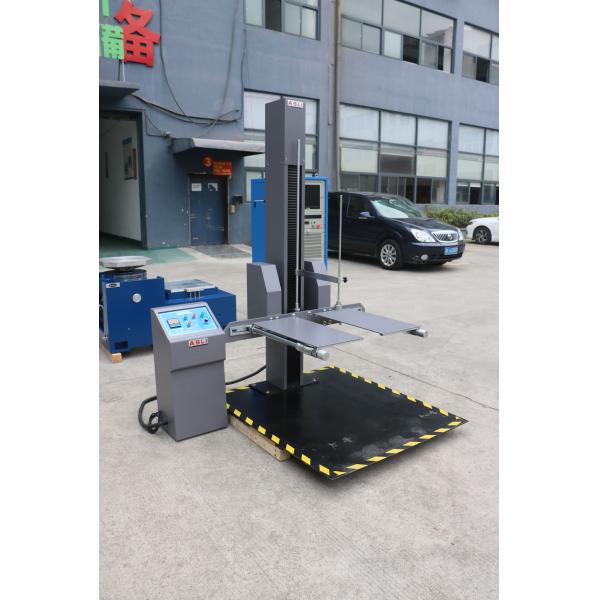

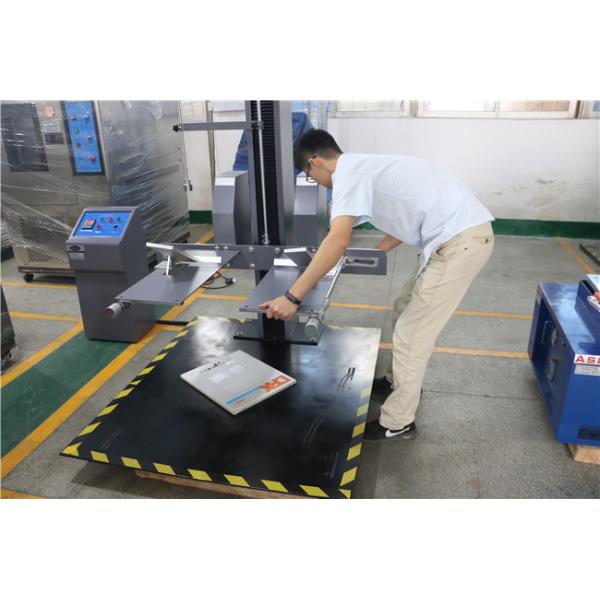

LED Light Impact Mechanical Shock Test Machine Packaging Drop Testing Machine Drop Method
LED Light Impact Mechanical Shock Test Machine Packaging Drop Testing Machine Drop Method
LED Light Impact Mechanical Shock Test Machine Packaging Drop Testing Machine Drop Method
LED Light Impact Mechanical Shock Test Machine Packaging Drop Testing Machine Drop Method
LED Light Impact Mechanical Shock Test Machine Packaging Drop Testing Machine Drop Method
LED Light Impact Mechanical Shock Test Machine Packaging Drop Testing Machine Drop Method
LED Light Impact Mechanical Shock Test Machine Packaging Drop Testing Machine Drop Method
LED Light Impact Mechanical Shock Test Machine Packaging Drop Testing Machine Drop Method
LED Light Impact Mechanical Shock Test Machine Packaging Drop Testing Machine Drop Method
LED Light Impact Mechanical Shock Test Machine Packaging Drop Testing Machine Drop Method
Specifications
Brand Name :
ASLi
Model Number :
AS-DT-120 / AS-DT-150 / AS-DT-200
Certification :
CE ,ISO ,SGS
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
100 sets per month
Delivery Time :
15~20 workdays
Packaging Details :
Standard Export Plywood Case
Drop Method :
Face, edge, angle
Weight (Kg) :
600~1500
Power :
AC 380V
Packaing :
standard plywood case
Description

LED Light Impact Mechanical Shock Test Machine Packaging Drop Testing Machine Drop Method

Application:

AS-DT-150 Packaging Drop Test, Hammer Impact Tester, Packaging Drop Testing Machine is applied to assess the package in the actual transportation, loading and unloading process bay dropping the degree of impact, impact-resistant strength and evaluate the reasonable of packaging design.

Packaging Drop Testing Machine Technical Parameters:

Model AS-DT-120 AS-DT-150 AS-DT-200
Max. Weight of Test Samples (Kg) ≥200 100 100
Height of Drop (mm) 0~1200 300~1500 300~2000
Max. Dimension of Test Sample WxHxD (mm) 1200x1200x1200 1000x800x1000 1000x800x1000
Falling Floor Size WxHxD (mm) 1400x50x2000 1700x50x1200 1700x50x1200
Drop Method Face, edge, angle
Test Bench External Dimension WxHxD (mm) 1400x2000x1800 1700x2700x1200 1700x2700x1200
Weight (Kg) 1500 600 700
Power AC 380V

LED Light Impact Mechanical Shock Test Machine Packaging Drop Testing Machine Drop Method

LED Light Impact Mechanical Shock Test Machine Packaging Drop Testing Machine Drop Method

Drop Testing Machine Feature:

1. The main axle of tester used dual axle rode, high precision and good stability. Power failure safety design, it will be kept the original condition under power cut and the swing arm will not break away unusually.

2. The tester has set limits upward and down, will not exceed safety range when testing.

3. Support arm with electronic reset capability, can avoid the accident by manual operation.

4. Multi-functional sample supporter: Can rapidly fix the different size package to test the package edges, sides and corners.

5. Micro adjusting control, can rapidly set to the needed testing height.

LED Light Impact Mechanical Shock Test Machine Packaging Drop Testing Machine Drop Method

Short introduction about ASLi factory:


We are a long history testing equipment manufacturer, in the past 28 years, we devoted to simulation environmental testing equipment and Mechannical vibration and shock testing machine. LED Light Impact Mechanical Shock Test Machine Packaging Drop Testing Machine Drop Method is one of our star product , and we had obtained the CE certification for this machine .
