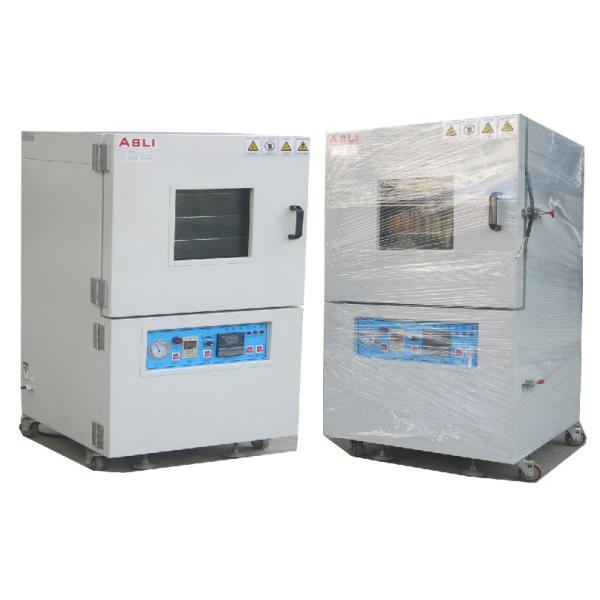

Ceramics High Temperature Ovens , 500℃ High Temperature vacuum chamber
Ceramics High Temperature Ovens , 500℃ High Temperature vacuum chamber
Ceramics High Temperature Ovens , 500℃ High Temperature vacuum chamber
Ceramics High Temperature Ovens , 500℃ High Temperature vacuum chamber
Ceramics High Temperature Ovens , 500℃ High Temperature vacuum chamber
Ceramics High Temperature Ovens , 500℃ High Temperature vacuum chamber
Ceramics High Temperature Ovens , 500℃ High Temperature vacuum chamber
Ceramics High Temperature Ovens , 500℃ High Temperature vacuum chamber
Ceramics High Temperature Ovens , 500℃ High Temperature vacuum chamber
Ceramics High Temperature Ovens , 500℃ High Temperature vacuum chamber
Ceramics High Temperature Ovens , 500℃ High Temperature vacuum chamber
Ceramics High Temperature Ovens , 500℃ High Temperature vacuum chamber
Specifications
Brand Name :
ASLi
Model Number :
RUD-40 / RUD-50 / RUD-60
Certification :
CE ,ISO ,SGS
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
100sets per month
Delivery Time :
15~20 workdays
Packaging Details :
Standard Export Plywood Case
Pressure :
0 to -0.1Mpa
Vacuum mode :
Vacuum pump
Temperature Range :
RT-200℃ (300℃~500℃ is optional )
Accuracy :
±2.0℃%
Control Method :
Micro PID control temperature
Storage Shelf :
Two layers
Description

Ceramics High Temperature Ovens , 500℃ High Temperature vacuum chamber

Application:

500℃ High Temperature vacuum chamber, High Temperature Oven for Ceramics is widely used for heating treatment of metal materials in low vacuum, recursive, protective atmosphere, also can be used for heating treatment of special materials, such as carbonization process of carbon products.

High Temperature Oven for Ceramics Technical Parameters:

Model RUD-40 RUD-50 RUD-60

Internal Dimension

W×H×D (mm)

 400×400×400 500×500×500 600×600×600
External Dimension W×H×D (mm) 600×1460×650 800×1560×850 950×1700×1000
Internal and External Material Material of the inner box is SUS 304# stainless steel, of the outer box is stainless steel or SEE cold-rolled steel with paint coated.
Pressure 0 to -0.1Mpa
Vacuum mode Vacuum Pump
Temperature Range RT-200℃ (300℃ is optional )
Accuracy ±2.0℃%
Control Method Micro PID control temperature
Storage Shelf Two layers
Power AC220V AC220V AC220V

Ceramics High Temperature Ovens , 500℃ High Temperature vacuum chamber

500℃ High Temperature vacuum chamber Features:

1. Heavy duty double layer structure with cooling fan.

2. PID automatic control

3. Power control with 30 segments programmable.

4. Ceramic fiber with excellent thermal insulation.

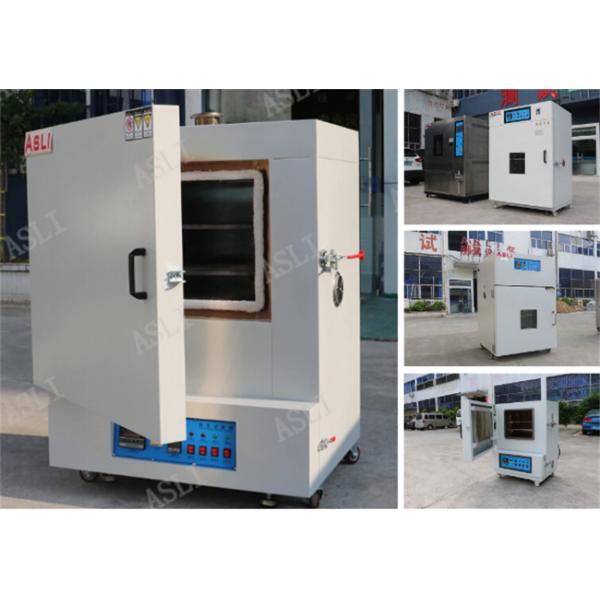

More Pictures:

Ceramics High Temperature Ovens , 500℃ High Temperature vacuum chamber

Ceramics High Temperature Ovens , 500℃ High Temperature vacuum chamber
