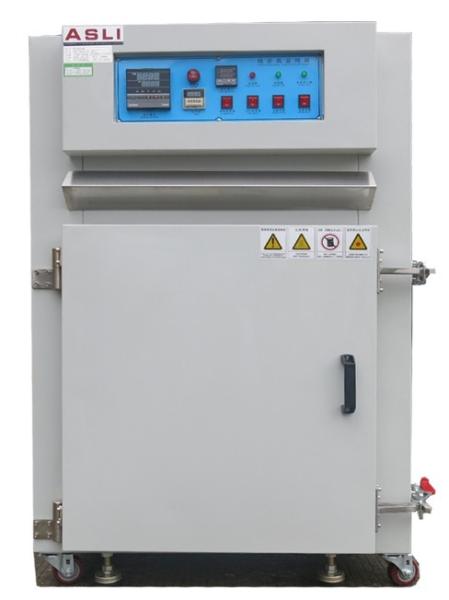

450 Deg Hot Air Circulation High Temperature Ovens For Accelerated Stability Testing
450 Deg Hot Air Circulation High Temperature Ovens For Accelerated Stability Testing
450 Deg Hot Air Circulation High Temperature Ovens For Accelerated Stability Testing
450 Deg Hot Air Circulation High Temperature Ovens For Accelerated Stability Testing
450 Deg Hot Air Circulation High Temperature Ovens For Accelerated Stability Testing
450 Deg Hot Air Circulation High Temperature Ovens For Accelerated Stability Testing
450 Deg Hot Air Circulation High Temperature Ovens For Accelerated Stability Testing
450 Deg Hot Air Circulation High Temperature Ovens For Accelerated Stability Testing
450 Deg Hot Air Circulation High Temperature Ovens For Accelerated Stability Testing
450 Deg Hot Air Circulation High Temperature Ovens For Accelerated Stability Testing
450 Deg Hot Air Circulation High Temperature Ovens For Accelerated Stability Testing
450 Deg Hot Air Circulation High Temperature Ovens For Accelerated Stability Testing
Specifications
Brand Name :
ASLi
Model Number :
RHD-45
Certification :
CE, ISO, SGS
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
100 sets/ month
Delivery Time :
15 workdays
Packaging Details :
Standard Export Plywood Case
Internal Dimension :
W450×H400×D400mm
External Dimension :
W650×H900×D550mm
Temperature Range :
R.T. to 200; (300 to 500℃ is optional)
Indication Resolution of Temperature :
0.1℃ ( When temperature is 100℃)
Distribution Uniformity of Temperature :
±2.0℃ ( When temperature is 100℃)
Control Accuracy of Temperature :
±0.5℃
Control Method :
Micro PID+SSR+Timer
Storage Shelf :
Two layers
Description

450 deg c High Temperature Vacuum Oven, High Temperature Ovens

Application:


450 deg c High Temperature Vacuum Oven, High Temperature Ovens are used to dry, bake and preheat various materials or specimen, by means of hot air circulation method to uniform the temperature distribution.

High Temperature Ovens Technical Parameters:

Model RHD - 45 RHD - 60 RHD - 90 RHD - 120

Internal Dimension

W×H×D(mm )

 450×400×400 500×600×500 600×900×500 800×1200×700

External Dimension

W×H×D(mm )

 650×900×550 700×1200×650 850× 1600×700 1200× 1680×900

Interior and Exterior

Material

Interior material is SUS 304# stainless steel,

exterior is stainless steel or SEE cold-rolled steel with paint coated.
Temperature Range R.T. to 200; (300 to 500℃ is optional)

Indication Resolution/

Distribution Uniformity

of Temperature

 0.1℃/±2.0℃;( When temperature is 100℃)

Control Accuracy of

Temperature

 ±0.5℃;

Temperature Rising

Velocity

 Temperature rising velocity: from R.T. to 200℃,needs approx. 35mins
Control Method Micro PID+SSR+Timer
Storage Shelf Two layers
Viewing Window

When temperature is RT to 200℃ ,with viewing widow

When temperature is 200℃ to 500℃ ,without viewing widow
Power AC 220V 50/60HZ ; AC 380V 50/60HZ


450 deg c High Temperature Vacuum Oven Features:


1. Automatic temperature control with digital thermal-sensor
2. Excellent thermal insulation property of ovens wall, lower energy consumption,
3. Be able to pre-set temperature, digital temperature display with LED panel.
4. Temperature value flashes on indicator when reach preset value.
5. Circulation fan facility to keep even temperature and uniform heating

450 Deg Hot Air Circulation High Temperature Ovens For Accelerated Stability Testing450 Deg Hot Air Circulation High Temperature Ovens For Accelerated Stability Testing450 Deg Hot Air Circulation High Temperature Ovens For Accelerated Stability Testing450 Deg Hot Air Circulation High Temperature Ovens For Accelerated Stability Testing

450 Deg Hot Air Circulation High Temperature Ovens For Accelerated Stability Testing

Material of Construction:


(1)Interior material is SUS#304 stainless steel
(2)Exterior material is paint coated steel plate
(3)Insulation Material of imported fire-proof rock wool
(4)Heating Medium: electric heating tube

Control System:


(1) P.I.D microcomputer automatic calculate temperature controller, PV/SV display at the same time, set by press key.;
(2) 220V Solid state relay temperature output;
(3) Current Controller : SSR no contact relay
