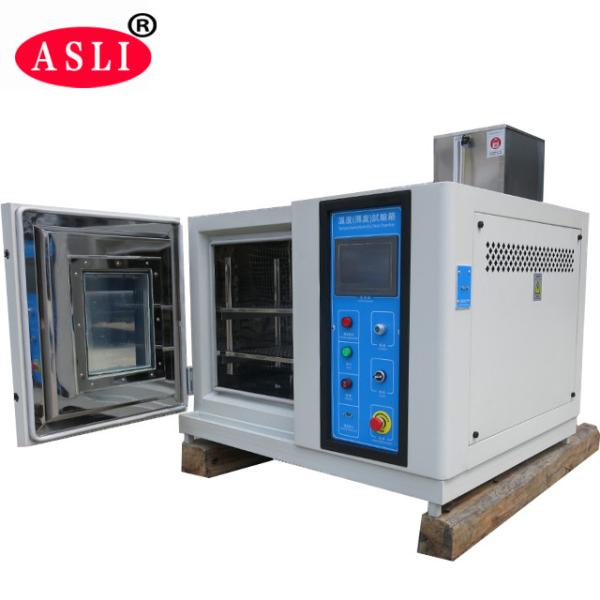

Benchtop Environmental Test Chamber , Laboratory Desktop Small Humidity Chambers
Benchtop Environmental Test Chamber , Laboratory Desktop Small Humidity Chambers
Benchtop Environmental Test Chamber , Laboratory Desktop Small Humidity Chambers
Benchtop Environmental Test Chamber , Laboratory Desktop Small Humidity Chambers
Benchtop Environmental Test Chamber , Laboratory Desktop Small Humidity Chambers
Benchtop Environmental Test Chamber , Laboratory Desktop Small Humidity Chambers
Specifications
Brand Name :
AISILI
Model Number :
DTH-80-A
Certification :
CE , BV , SGS
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
100 sets per month
Delivery Time :
20 workdays
Packaging Details :
Standard Export Plywood Case
Veiwing Window :
250*300mm
Cooling System :
Air Cooling
Test Hole :
Dia. 50mm
Type :
Environmental Test
Temperature Range :
25~150C
Humidity Range :
20%~98%R.H.
Internal Dimension :
W400*H500*D400mm
Power :
AC220V
Description

Benchtop Environmental Test Chamber , Laboratory Desktop Small Humidity Chambers

We ASLI company focuses on development and production of Mini Temperature Humidity Test Lab Equipment/Environmental Test Chamber, The machine specifically testing the materials in resistance of heat, cold, dry and moisture. Constant temperature and humidity testing machine is small size and not take up space.

Laboratory desktop small humidity chambers benchtop climate test chamber Technical Parameters
Model DTH-80A DTH-80B DTH-80C
Internal Dimensions WxHxD (mm) 400X500X400
External Dimensions WxHxD (mm) 1150X1150X1050
Temperature Range (RT+10°C) ~+150°C 0~+150°C -20 ~+150°C
Humidity Range 20%~98%R.H.

Indication Resolution/

Distribution

Uniformity of

Temperature

and Humidity

 0.1°C; 0.1% R.H / ±2.0°C; ±3.0% R.H.

Control Accuracy

of Temperature

and Humidity

 ±0.5°C; ±2.5% R.H.
Temperature Rising/Falling Velocity

Temperature rising approx. 0.1~3.0°C/min;

temperature falling approx. 0.1~1.5°C/min;
Interior and Exterior Material Interior material is SUS 304# stainless steel,exterior is stainless steel or SEE cold-rolled steel with paint coated.
Insulation Material Resistant to high temperature, high density, formate chlorine, ethyl acetum foam insulation materials
Cooling System Wind cooling
Protection Devices Fuse-free switch, overloading protection switch for compressor, high and low voltage coolant protection switch, over-humidity and over-temperature protection switch, fuses, fault warning system, water short storage warning protection
Optional Accessories Inner door with operation hole(Optional), Recorder(optional),Water Purifier
Compressor French Tecumseh Brand, Germany Bizer Brand
Power AC 220V(±10%), 1 ph 3 Lines , 50/60HZ;
Weight (Kg) 75
Laboratory desktop small humidity chambers benchtop climate test chamber Pictures

Benchtop Environmental Test Chamber , Laboratory Desktop Small Humidity Chambers

Product Description

Mini Temperature Humidity Test Lab Equipment/Environmental Test Chamber is used to test various types of materials for their tolerances of heat, cold, dry, humidity, and applied for quality inspection for all types of electronic products, electric appliance, and products from communication, instrument, automobile, plastic, metal, food, chemical, building materials, medical and aerospace industries.


Inner door with operation hole (optional)
Traveling cable port, Dia.50mm or 100mm
Sample Shelves, two layers
RS-232 or RS-485 communication


Mini Temperature Humidity Test Lab Equipment/Environmental Test Chamber Features :


1. Graceful appearance, circularly shaped body, surface treated with mist strips,.
2. Rectangular double-paned viewing window for the observation of sample under test,with interior lights.
3. Double-layer-insulated airtight doors, able to insulate the internal temperature effectively.
4. Water supply system that is externally connectable, convenient for refilling water into the humidifying pot and automatically recyclable.
5. French Tecumseh brand is used as compressor, with environment friendly refrigeration R23,R404A.
6. LCD display screen is used for the control unit, capable of displaying set point and actual value at the same time
7. The control unit has the functions of multiples segment program editing, and of quick or ramp rates control of temperature and humidity.
8. Casters are provided for ease of mobility, with strong positioning screws.

Package: PP film first, and then 10mm foam between machine and the case, and outside is standard export plywood case.

Benchtop Environmental Test Chamber , Laboratory Desktop Small Humidity Chambers

Our Services

1.High quality guarantee.
2.Shipment with professional documents.
3.Packing as your request, with photo before shipment.
4.Reply within 48 hours and provide solution within 3 working days
5.Professional after-service from our engineers.
6.Warranty period 12 monthes.


Our advantages:


1.Professional technology support.
2.Full experience of large numbers containers loading in Chinese sea port.
3.Fast shipment by reputed shipping line.
4.Best service after shipment with emails.
5.We are professional test equipment manufaturer in China with excellent experience and skills, also have best quality products


Our concept:


1.Client is first. We are trying to bring maximum profit to our clients and offer best quality products
2.Credibility is the most important.
3.Quality control is our life.
4.Great sense of responsibility.

Customers' Visit ASLi Factory:

Benchtop Environmental Test Chamber , Laboratory Desktop Small Humidity Chambers

Benchtop Environmental Test Chamber , Laboratory Desktop Small Humidity Chambers

Company Information


We are a long history testing equipment manufacturer, in the past 28 years, we devoted to simulation environmental testing equipment and Mechannical vibration and shock testing machine. Mini Temperature Humidity Test Lab Equipment/Environmental Test Chamber is our star products , and we had obtained the CE certification for this machine .
