Plastic Temperature Aging Test Oven 270L 5℃/Min Heating Rate
Plastic Temperature Aging Test Oven 270L 5℃/Min Heating Rate
Plastic Temperature Aging Test Oven 270L 5℃/Min Heating Rate
Plastic Temperature Aging Test Oven 270L 5℃/Min Heating Rate
Plastic Temperature Aging Test Oven 270L 5℃/Min Heating Rate
Plastic Temperature Aging Test Oven 270L 5℃/Min Heating Rate
Plastic Temperature Aging Test Oven 270L 5℃/Min Heating Rate
Plastic Temperature Aging Test Oven 270L 5℃/Min Heating Rate
Plastic Temperature Aging Test Oven 270L 5℃/Min Heating Rate
Plastic Temperature Aging Test Oven 270L 5℃/Min Heating Rate
Specifications
Brand Name :
ASLI
Model Number :
RHD-90
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
negotiate
Payment Terms :
T/T, Western Union
Supply Ability :
200 sets per month
Delivery Time :
15 workdays
Packaging Details :
standard export plywood case
Internal Dimension :
W600*H900*D500mm
Volume :
270 Liters
Temperature Range :
(RT+15℃)~300℃
Temperature Control Accuracy :
+/- 0.5℃
from R.T. to 200℃ :
approx. 35mins
Control Method :
Micro PID+SSR+Timer
Storage Shelf :
Two layers
Heating Rate :
5℃/Min
Description

5℃/Min Heating Rate Plastic Testing Machine Temperature Aging Test Oven

High Temperature Oven Technical Parameters

Model

RHD - 45

RHD - 60

RHD - 90

RHD - 120

Internal Dimension

W×H×D(mm )

450×400×400

500×600×500

600×900×500

800×1200×700

External Dimension

W×H×D(mm )

650×900×550

700×1200×650

850× 1600×700

1200× 1680×900

Interior and Exterior

Material

Interior material is SUS 304# stainless steel,

exterior is stainless steel or SEE cold-rolled steel with paint coated.

Temperature Range

R.T. to 200; (300 to 500°C is optional)

Indication Resolution/

Distribution Uniformity

of Temperature

0.1°C/±2.0°C;( When temperature is 100°C)

Control Accuracy of

Temperature

±0.5°C;

Temperature Rising

Velocity

Temperature rising velocity: from R.T. to 200°C,needs approx. 35mins

Control Method

Micro PID+SSR+Timer

Storage Shelf

Two layers

Viewing Window

When temperature is RT to 200°C ,with viewing widow

When temperature is 200°C to 500°C ,without viewing widow

Power

AC 220V 50/60HZ ; AC 380V 50/60HZ

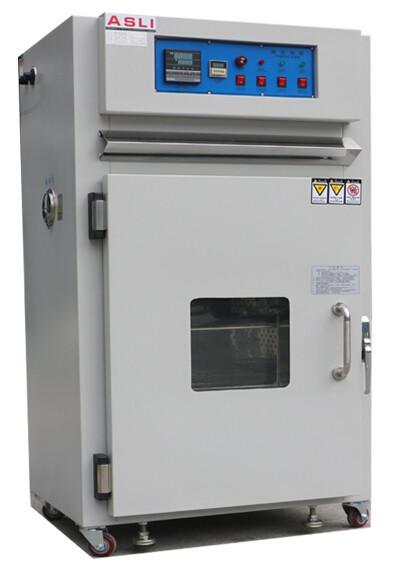

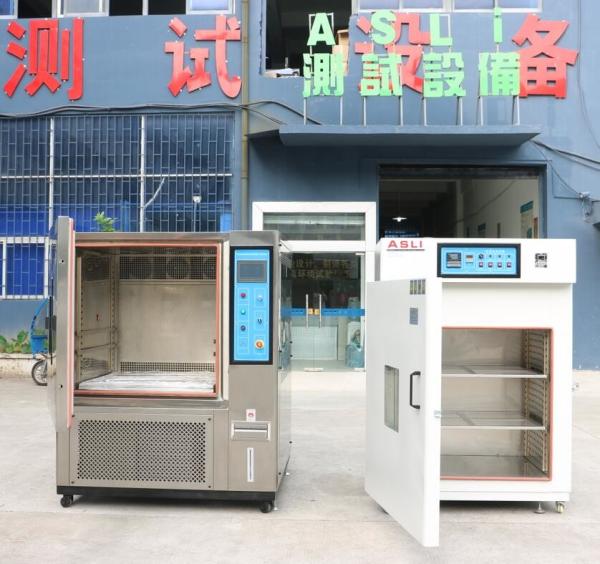

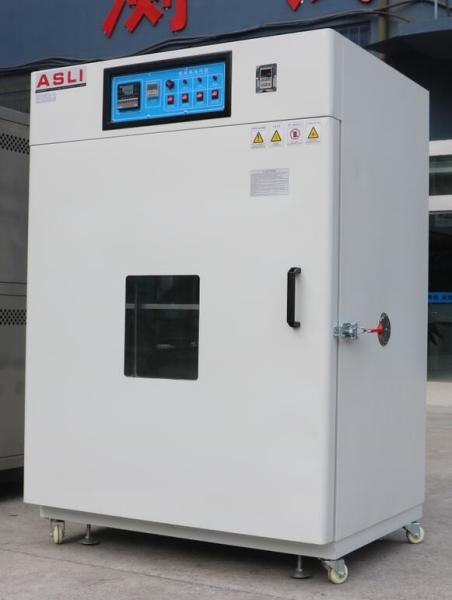

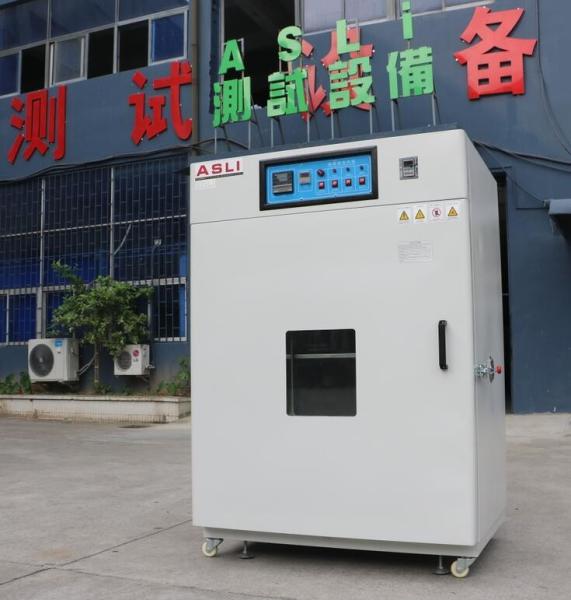

Product Pictures
Plastic Temperature Aging Test Oven 270L 5℃/Min Heating Rate Plastic Temperature Aging Test Oven 270L 5℃/Min Heating Rate
Plastic Temperature Aging Test Oven 270L 5℃/Min Heating Rate Plastic Temperature Aging Test Oven 270L 5℃/Min Heating Rate
Product Description

Freestanding electric oven can provide a stable test space for pre-heating, drying, changes about physics and chemistry testing . It supplys precision temperature controllter with high stability of platinum resistance to temperature that makes temperature well-distribution.

Aging test oven​ Features


1.Outside SECC steel, fine powder coating treatment; Inner SUS#304 stainless steel.
2.Use new high temperature resistant long shaft motor
3 Turbine fan.
4.Silicone forced tight
5.Over temperature protection, super load automatic power system.
6.Circulation system: air force level cycle.
7. Heating system:PID+S.S.R.
8.The thermostat: PID microcomputer control, automatic constant temperature, temperature quickly compensation function
9.Timer: temperature to time, when the power failure alarm indication.
10.According to customer demand matching glass window can be customized according to customer specifications specified.

Packaging & Shipping

Package: PP film first, and then 10mm foam between machine and the case, and outside is standard export plywood case.

Plastic Temperature Aging Test Oven 270L 5℃/Min Heating Raten Heating Rate Plastic Testing Machine Temperature Aging Test Oven
