Benchtop Temperature Humidity Chamber 80 L Volume With Lcd Touch Screen
Benchtop Temperature Humidity Chamber 80 L Volume With Lcd Touch Screen
Benchtop Temperature Humidity Chamber 80 L Volume With Lcd Touch Screen
Benchtop Temperature Humidity Chamber 80 L Volume With Lcd Touch Screen
Benchtop Temperature Humidity Chamber 80 L Volume With Lcd Touch Screen
Benchtop Temperature Humidity Chamber 80 L Volume With Lcd Touch Screen
Benchtop Temperature Humidity Chamber 80 L Volume With Lcd Touch Screen
Benchtop Temperature Humidity Chamber 80 L Volume With Lcd Touch Screen
Benchtop Temperature Humidity Chamber 80 L Volume With Lcd Touch Screen
Benchtop Temperature Humidity Chamber 80 L Volume With Lcd Touch Screen
Specifications
Brand Name :
ASLI
Model Number :
DTH-80-A
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Price :
negotiate
Payment Terms :
T/T, Western Union
Supply Ability :
100 sets per month
Delivery Time :
23 workdays
Packaging Details :
standard export plywood case
Internal Dimension :
W400*H500*D400mm
External Dimension :
W1150*H1150*D1050mm
Volume :
80 L
Control Method :
LCD Touch Screen
Temperature Range :
20 degree to 150 degree
Humidity range :
20% to 98%R.H.
Cooling System :
Wind cooling
Test Point :
85 degree /85 % RH test
Description



LCD Touch Screen Type Temperature Testing Benchtop Environmental Test Chamber


Standard features:
Temperature control and display unit
Humidity control and display unit
Can perform long time 85 °C/85 % RH tests
Safety protection system
Easy operation friendly interface

LCD Touch Screen Type Temperature Testing Benchtop Environmental Test Chamber Technical Parameters

Model

DTH-80A

DTH-80B

DTH-80C

Internal Dimensions WxHxD (mm)

400X500X400

External Dimensions WxHxD (mm)

1150X1150X1050

Temperature Range

(RT+10°C) ~+150°C

0~+150°C

-20 ~+150°C

Humidity Range

20%~98%R.H.

Indication Resolution/
Distribution
Uniformity of
Temperature
and Humidity

0.1°C; 0.1% R.H / ±2.0°C; ±3.0% R.H.

Control Accuracy
of Temperature
and Humidity

±0.5°C; ±2.5% R.H.

Temperature Rising/ Falling Velocity

Temperature rising approx. 0.1~3.0°C/min;
temperature falling approx. 0.1~1.5°C/min;

Interior and Exterior Material

Interior material is SUS 304# stainless steel,exterior is stainless steel or SEE cold-rolled steel with paint coated.

Insulation Material

Resistant to high temperature, high density, formate chlorine, ethyl acetum foam insulation materials

Cooling System

Wind cooling

Protection Devices

Fuse-free switch, overloading protection switch for compressor, high and low voltage coolant protection switch, over-humidity and over-temperature protection switch, fuses, fault warning system, water short storage warning protection

Optional Accessories

Inner door with operation hole(Optional), Recorder(optional),Water Purifier

Compressor

French Tecumseh Brand, Germany Bizer Brand

Power

AC 220V(±10%), 1 ph 3 Lines , 50/60HZ;

Weight (Kg)

75

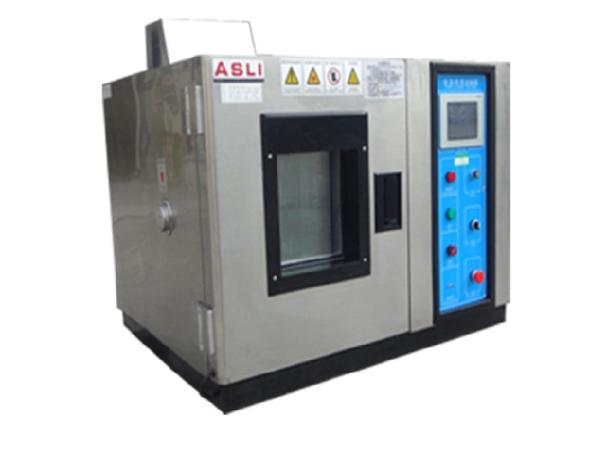

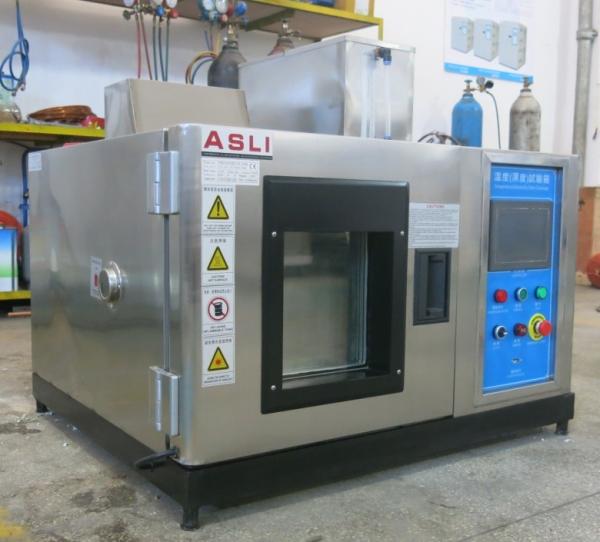

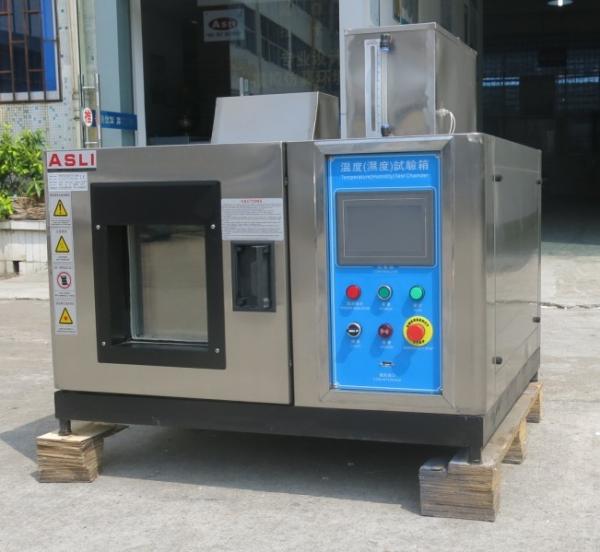

Product Pictures
Benchtop Temperature Humidity Chamber 80 L Volume With Lcd Touch ScreenBenchtop Temperature Humidity Chamber 80 L Volume With Lcd Touch Screen

Benchtop Temperature Humidity Chamber 80 L Volume With Lcd Touch Screen

Benchtop Temperature Humidity Chamber 80 L Volume With Lcd Touch Screen
Product Description


temperature cycling test chambers and humidity chambers. Our LCD Touch Screen Type Temperature Testing Benchtop Environmental Test Chamber are available in a variety of sizes and configurations, including bench top / vertical/ walk in constant temperature humidity chambers. Temperature Range: 20°C to 150°C; Humidity range:20% to 98%R.H.
Desktop Temperature Humidity Test Chamber Features :
1. Graceful appearance, circularly shaped body, surface treated with mist strips,.
Rectangular double-paned viewing window for the observation of sample under test,with interior lights.
3. Double-layer-insulated airtight doors, able to insulate the internal temperature effectively.
4. Water supply system that is externally connectable, convenient for refilling water into the humidifying pot and automatically recyclable.
5. French Tecumseh brand is used as compressor, with environment friendly refrigeration R23,R404A.
6. LCD display screen is used for the control unit, capable of displaying set point and actual value at the same time
7. The control unit has the functions of multiples segment program editing, and of quick or ramp rates control of temperature and humidity.
