Specifications
Brand Name :
ASLI
Model Number :
THR-Volume
Certification :
CE , ISO , SGS
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
300 sets per year
Delivery Time :
30 workdays
Packaging Details :
wooden case
Internal Dimension :
W2000*H1500*D2000mm
Volume :
6000 Liters
Temperature Range :
-20~150 ℃
Humidity Range :
30%R.H.~90%R.H.
Test Hole :
Dia. 100mm
Application :
Auto Parts
Description

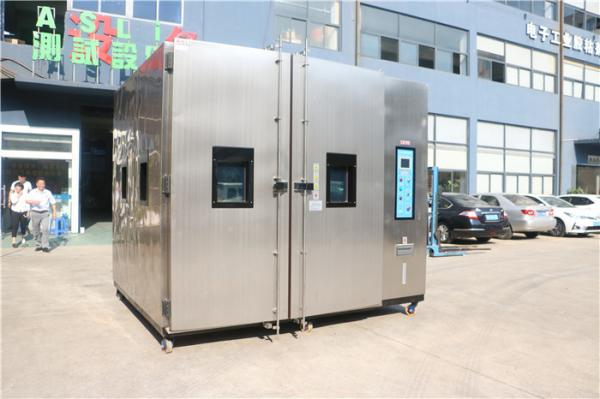

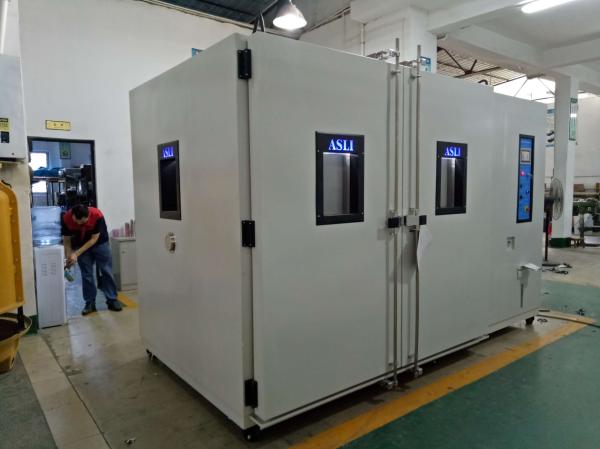

Auto Parts Walk In Stability Climatic Test Chamber Custom Environmental Rooms
Product Description

walk in temperature humidity test chamber is suitable for testing extremely large equipment and device such as automobile shells, carriages, satellite electronic plates and photovoltaic plates. The temperature range is considerably wide and temperature rising and decrease rate is fast. Thus made it a perfect test equipment for manufacturing industry and research institutions.

Temperature Humidity Test Room Parameter:
Model
THR-volume (low-temperature options : A ~ F)
Inner Dimensions(cm)
Customers designated space size and design
Temperature Range
Low Temperature(A:25℃ B:0℃ C:-20℃ D:-40℃ E:-60℃ F:-70℃)
High Temperature 80℃ (80℃ ~150℃ is optional)
Humidity Range
20%~98%R.H.(10%-98% R.H. / 5%-98% R.H ,is a special optional condition, need dehumidifier)
Indication Resolution/ Distribution Uniformity of Temperature & Humidity
0.1℃; 0.1% R.H/±2.5℃; ±3.5% R.H.
Control Accuracy of Temperature and Humidity
±0.5℃; ±2.5% R.H.
Temperature Rising/ Falling Velocity
Temperature rising approx. 0.1~3.0°C/min
temperature falling approx. 0.1~1.0°C/min;
( The Falling Velocity Min.1.0°C /min is a optional)
Drive-In Testing Chamber/Programmable Humidity Chamber Protection Devices
Fuse-free switch, overloading protection switch for compressor,high and low voltage coolant protection switch, over-humidity & over-temperature protection switch, fuses, fault warning system, water short storage warning protection

Auto Parts Walk In Stability Chamber , Custom Environmental Climatic Test Chamber

Auto Parts Walk In Stability Chamber , Custom Environmental Climatic Test Chamber

Optional accessories:

1. Cable Port: Two size of cable port is available: Dia. 50mm, or Dia. 100mm.
2. Double door.
3. Pass room: Provided to avoid disturbance of atmospheric temperature and humidity while opening the door.
4. Floor reinforcement: Can be fixed if heavy specimen placed in the chamber for test.
5. Carry-in inclined platform: Provided below the door to facilitate moving of specimens in and out through the door.
6. Entire ceiling blow-out duct
7. Water purifier
8. Dehumidifier
9. Temperature and humidity recorder
10. Status indication lamp
11. Provide to signal chamber status and warnings when normal running, a malfunction running or stand by occurs.

Detailed Images
Auto Parts Walk In Stability Chamber , Custom Environmental Climatic Test Chamber Auto Parts Walk In Stability Chamber , Custom Environmental Climatic Test Chamber
Auto Parts Walk In Stability Chamber , Custom Environmental Climatic Test Chamber Auto Parts Walk In Stability Chamber , Custom Environmental Climatic Test Chamber
Packing & Delivery
Auto Parts Walk In Stability Chamber , Custom Environmental Climatic Test Chamber
More Auto Parts Walk In Stability Climatic Test Chamber Custom Environmental Rooms information, please don't hesitate to send your inquiry.
