Specifications
Brand Name :
ASLI
Model Number :
SS-5
Certification :
CE ISO TUV SGS
Place of Origin :
CHINA
MOQ :
1SET
Price :
negotiated payment
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
100SET PER MONTH
Delivery Time :
25WORKING DAYS
Packaging Details :
standard export plywood case
Table Size :
200x200mm
Pulse Acceleration :
15~1500 g
Pulse width :
0.6~18ms
Wave :
Half Sine Wave
Hydraulic Oil :
No #46
Standard :
IEC, MIL, GJB, JIS, ASTM
Description

IEC 62262 test ik protect rating against external mechanical impacts tester

Mechanical Shock Impact Tester of Features:

1.Built-in self-protection device, no secondary impact,

2.Shock height controlled by digital

3.Good repeatability test data

4.Signal generator provides a variety of choice: half sine wave, trapezoidal wave, sawtooth wave, square wave, etc.

5.Good vibration isolation performance, impact on the environment can control within the scope of the requirements:

6.Good Safety performance.

7.Conform to the IEC, MIL, GJB, JIS, ASTM and other international and domestic standard shock waves;

Technical Parameters with mechanical shock tester:
Model SS-5 SS-10 SS-25 SS-50 SS-100 SS-200 SS-400
Load Capacity (Kg) 5 10 25 50 100 200 400
Table Size (mm) 120x120 200x200 350x350 450x450 650x650 750x750 850x850
Pulse Acceleration (m/s2) Half Sine Wave 150~15000 150~15000 150~15000 150~6000 150~6000 150~3500 150~1500
Trapezoid Wave 300~1000 300~1000 300~1000 300~1000 300~1000 300~1000 300~500
Sawtooth Wave 150~1000 150~1000 150~1000 150~1000 150~1000 150~1000 150~500
Pulse width Half Sine Wave 0.5~18 0.6~18 0.8~25 1.5~30 1.5~30 2~30 6~30
Trapezoid Wave 6~12 6~12 6~18 6~12 6~12 6~12 6~12
Sawtooth Wave 6~18 6~18 6~18 6~18 6~18 6~18 6~18
Drive Mode Mechanical drive Hydraulic drive
External Dimension WxHxD (mm) 800x2200 x900 800x2200 x900 850x2250 x950 1000x2600 x1300 1100x2700 x1400 1300x2700 x1600 1300 x2700x1650
Weight (Kg) 600 700 900 2600 3300 4000 4500
Hydraulic Oil No #46 hydraulic oil
Power AC 380V 50/60HZ


Our advantages:


1.Professional technology support.
2.Full experience of large numbers containers loading in Chinese sea port.
3.Fast shipment by reputed shipping line.
4.Best service after shipment with emails.
5.We are professional test equipment manufaturer in China with excellent experience and skills, also have best quality products

Application of mechanical shock impact tester manufacturer:

Mechanical Shock Impact Testing Machine is mainly used for small products for impact test, to assess the product’s ability to withstand shock damage. It is often used in electronic components, electronic circuit boards and other environmental testing.

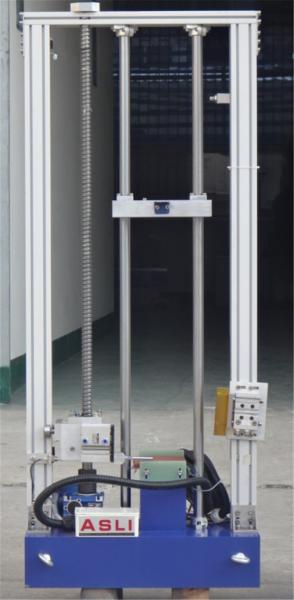

Product Pictures with shock acceleration shock tester:
External Mechanical Impacts Tester Lab Test Equipment Iec 62262 Test Ik Protect Rating Against

External Mechanical Impacts Tester Lab Test Equipment Iec 62262 Test Ik Protect Rating Against

Our service:


1.High quality guarantee.
2.Shipment with professional documents.
3.Packing as your request, with photo before shipment.
4.Reply within 48 hours and provide solution within 3 working days
5.Professional after-service from our engineers.
6.Warranty period 12 monthes.


Our concept:


1.Client is first. We are trying to bring maximum profit to our clients and offer best quality products
2.Credibility is the most important.
3.Quality control is our life.
4.Great sense of responsibility.

Customers' Visit ASLi Factory:

External Mechanical Impacts Tester Lab Test Equipment Iec 62262 Test Ik Protect Rating Against

Exhibition:

External Mechanical Impacts Tester Lab Test Equipment Iec 62262 Test Ik Protect Rating Against
