Heating Rate 0.1~3.0 C/min Temperature Humidity Climate Control Test Chamber
Heating Rate 0.1~3.0 C/min Temperature Humidity Climate Control Test Chamber
Heating Rate 0.1~3.0 C/min Temperature Humidity Climate Control Test Chamber
Heating Rate 0.1~3.0 C/min Temperature Humidity Climate Control Test Chamber
Heating Rate 0.1~3.0 C/min Temperature Humidity Climate Control Test Chamber
Heating Rate 0.1~3.0 C/min Temperature Humidity Climate Control Test Chamber
Heating Rate 0.1~3.0 C/min Temperature Humidity Climate Control Test Chamber
Heating Rate 0.1~3.0 C/min Temperature Humidity Climate Control Test Chamber
Heating Rate 0.1~3.0 C/min Temperature Humidity Climate Control Test Chamber
Heating Rate 0.1~3.0 C/min Temperature Humidity Climate Control Test Chamber
Heating Rate 0.1~3.0 C/min Temperature Humidity Climate Control Test Chamber
Heating Rate 0.1~3.0 C/min Temperature Humidity Climate Control Test Chamber
Specifications
Brand Name :
ASLI
Model Number :
TH-225-F
Certification :
CE , ISO , SGS
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
80 sets per month
Delivery Time :
20workdays
Packaging Details :
standard export plywood case
Internal Dimension :
W600*H750*D500mm
Volume :
225 Liters
Temperature Range :
-70~150C
Humidity Range :
20%R.H. ~ 98%R.H.
Temperature Indication relolution :
0.1 C
Temperature Control Accuracy :
+/- 0.5C
Temperature rising :
0.1~3.0 C/min
Test Hole :
Dia. 100mm
Viewing Window :
W250*D300mm
Communication Interface :
RS 485 / RS232
Description
Heating Rate 0.1~3.0 C/min Temperature Humidity Climate Control Test Chamber
Product Description:
Model
TH-80(A~F)
TH-150(A~F)
TH-225(A~F)
Internal Dimension
WxHxD (mm)
400x500x400
500x600x500
600x750x500
External Dimension
WxHxD (mm)
950x1650x950
1050x1750x1050
1200x1900x1150
Temperature Range
Low Temperature(A:25℃ B:0℃ C:-20℃ D:-40℃ E:-60℃ F:-70℃)
High Temperature 150℃
Humidity Range
20%~98%R.H.(10%-98% R.H. / 5%-98% R.H ,is optiona , need Dehumidifier)
Indication relolution /Distribution uniformity of temperature and humidity
0.1℃; 0.1% R.H/±2.0℃; ±3.0% R.H.
Control Accuracy of Temperature and Humidity
±0.5℃; ±2.5% R.H.
Temperature Rising/ Falling Velocity
Temperature rising approx. 0.1~3.0℃/min ;
temperature falling approx. 0.3~1.0℃/min;
( Falling Min.1.5℃/min is optional)
Approx. Weight (Kg)
150
180
250

Heating Rate 0.1~3.0 C/min Temperature Humidity Climate Control Test Chamber Features:

1. Graceful appearance, circularly shaped body, surface treated with mist strips . Easy to operate, safe and reliable.
2. Rectangular double-paned viewing window for viewing sample under test, with interior light
3. Double-layer-insulated airtight doors, able to insulate the internal temperature effectively.
4. Water supply system that is externally connectable, convenient for refilling water into the humidifying pot and automatically recyclable.
5.French Tecumseh is used as compressor, with environment friendly refrigeration R23 or R404A
6. LCD display screen, capable of displaying the measured value as well as the set value and time.
7. The control unit has the functions of multiples segment program editing, with quick or ramp rates control of temperature and humidity.
8. Casters are provided for ease of mobility, with strong positioning screws.

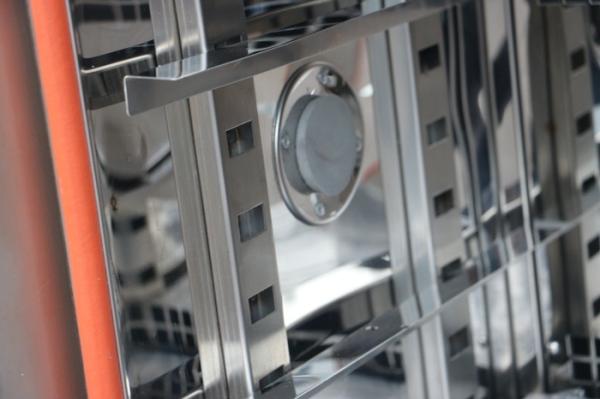

Heating Rate 0.1~3.0 C/min Temperature Humidity Climate Control Test Chamber Detailed Images
Heating Rate 0.1~3.0 C/min Temperature Humidity Climate Control Test Chamber
Heating Rate 0.1~3.0 C/min Temperature Humidity Climate Control Test Chamber
Heating Rate 0.1~3.0 C/min Temperature Humidity Climate Control Test Chamber

We are a long history testing equipment manufacturer, in the past 28 years, we devoted to simulation environmental testing equipment and Mechanical vibration and shock testing machine. Heating Rate 0.1~3.0 C/min Temperature Humidity Climate Control Test Chamber is our star products , and we had obtained the CE certification for this machine .
